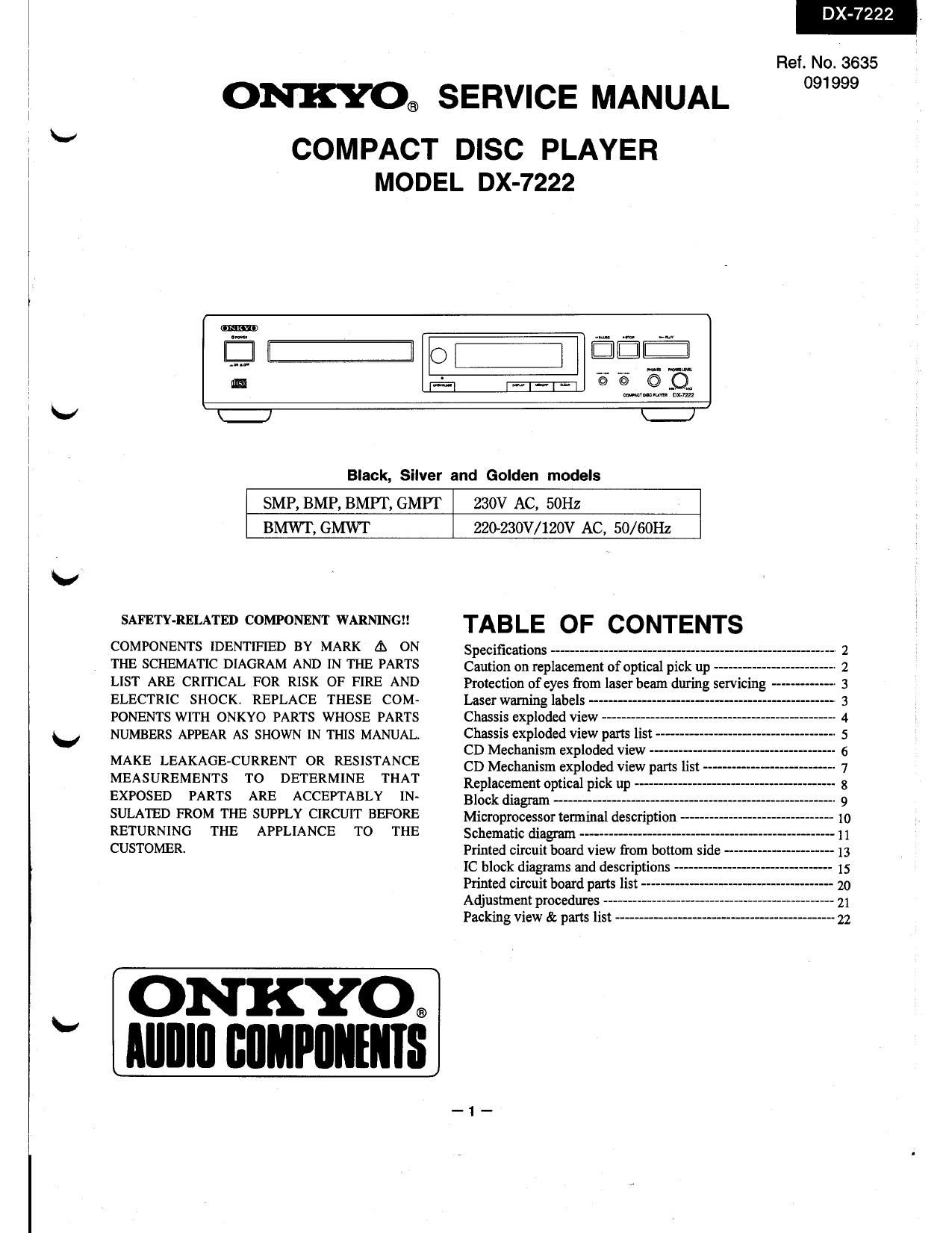

ONKYO® SERVICE MANUAL
COMPACT DISC PLAYER
DX-7222 ,
Flef. No. 3635
091999
MODEL DX-7222
i
PM 0 L-J E] El
1 . a mm" @ amgnflg}
\ k._J '
Black, Silver and Golden models
SMP, BMP, BMPT, GMPI
230V AC, 50Hz
BMWT, GMWT
220~23OV/120V AC, 50/60Hz
SAFETY-RELATED COMPONENT WARNING
COMPONENTS IDENTIFIED BY MARK A ON
THE SCHEMATIC DIAGRAM AND IN THE PARTS
LIST ARE CRITICAL FOR RISK OF FIRE AND
ELECTRIC SHOCK. REPLACE THESE COM-
PONENTS WITH ONKYO PARTS WHOSE PARTS
NUMBERS APPEAR AS SHOWN IN THIS MANUAL,
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT
EXPOSED PARTS ARE ACCEPTABLY IN-
SULATED FROM THE SUPPLY CIRCUIT BEFORE
RETURNING THE APPLIANCE TO THE
CUSTOMER.
ON KYO®
Illlllll IIIIIIPIIIHIIS
TABLE OF CONTENTS
Specifications 2
Caution on replacement of optical pick up --
Protection of eyes from laser beam during serv1cmg --
Chassis exploded View parts list ~
CD Mechanism exploded View --
CD Mechanism exploded view parts list --
Replacement optical pick up ---------------
Block diagram
Microprocessor terminal description ---
Schematic diagram ----------------------
Printed circuit board view from bottom side
IC block diagrams and descriptions ------------
Printed circuit board parts list
Adjustment procedures --
Packing View & parts list ---
