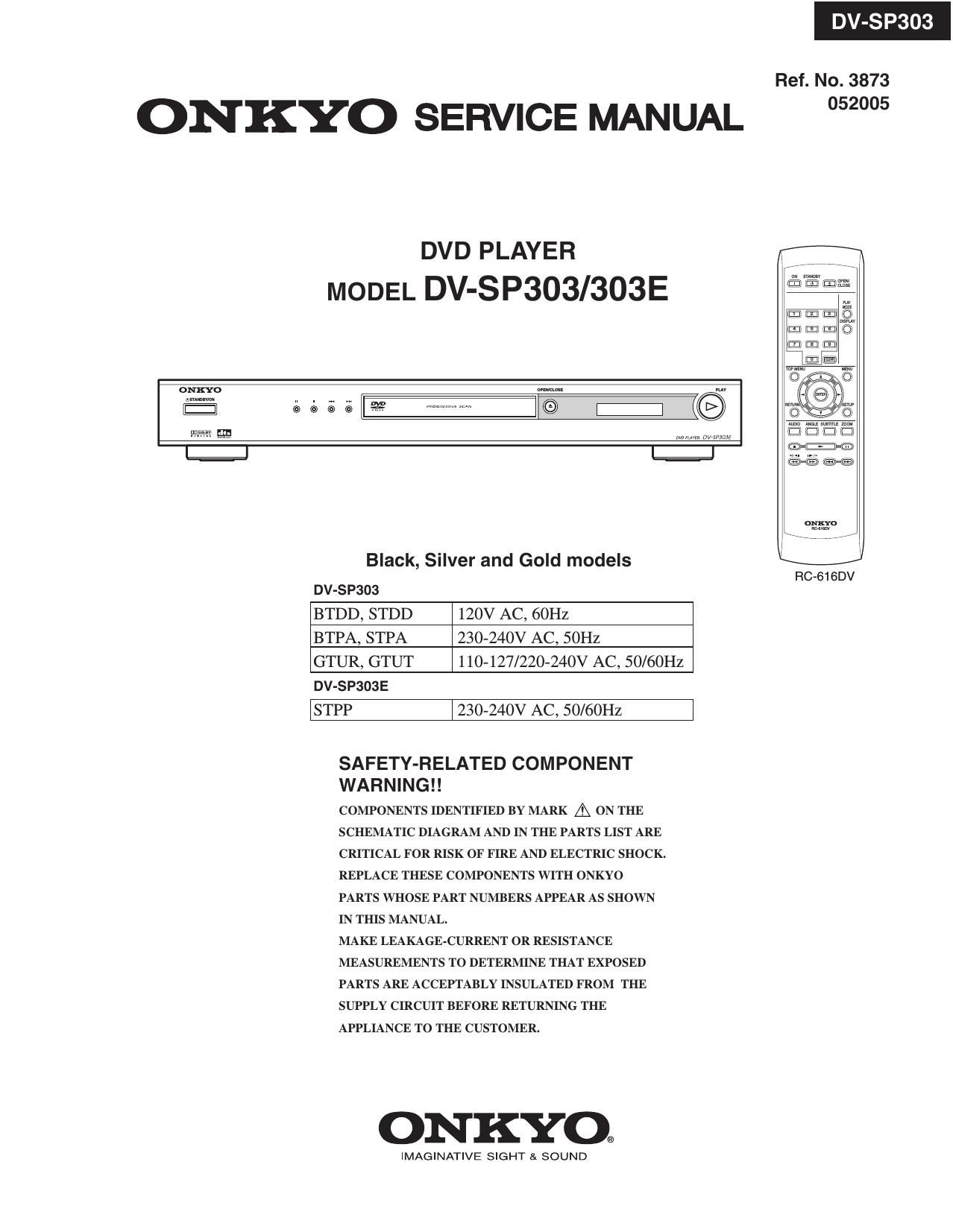

Onkyo DVSP 303 Service Manual

Page 1

DV-SP303

Ref. No. 3873

ONKYO SERVICE MANUAL °52°°5

DVD PLAYER
MODEL DV-SP303/303E

Hm |:| (.

@
©
@l
@I
Eli

Black, Silver and Gold models

RC-616DV
DV-SP303
BTDD, STDD 120V AC, 60112
BTPA, STPA 23o»24ov AC, 50Hz
GTUR, GTUT 1 10-127/220-240v AC, 50/60Hz
DV-SP303E
ISTPP | 230-24ov AC, 50/60Hz |

SAFETY-RELATED COMPONENT
WA R N I N G ! !

COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
