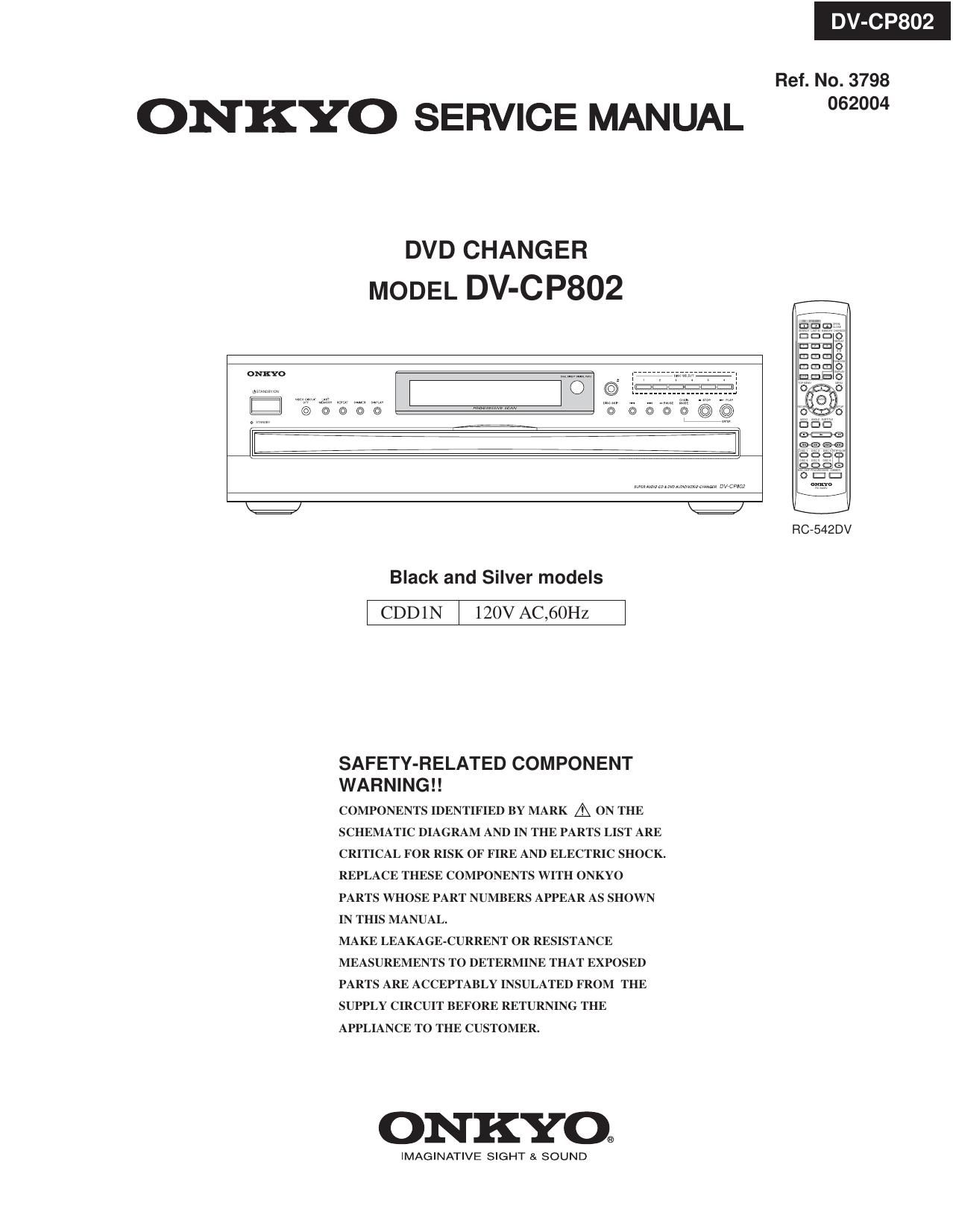

ONKYO SERVICE MANUAL

DVD CHANGER
MODEL DV-CP802

oumo

@©©©©©@

::j

Black and Silver models

CDDlN 120V AC,6()HZ

SAFETY-RELATED COMPONENT
WARNING! !

COMPONENTS IDENTIFIED BY MARK A ()N THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ()NKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT 0R RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

ONKYO®

IMAGINATIVE SIGHT & SOUND

CP8

Ref. No. 3798
062004

RC-542DV

Page 7

PANE L VIEWS-3
DISPLAYS-2

Play > indicator

This indicator is shown during playback.

Pause II indicator
This indicator appears when playback is paused.

.Titie & group number
Title and group numbers appear here.

C hapter & track number

Chapter and track numbers appear here.

Time display

Time information, such as total time, remaining
time, and so on. is displayed here in hours, minutes,
and seconds. Other messages are also displayed.

.MP3 indicator

This indicator appears while an M P3 track is being
played,

.Dolby Digital (nun), Dolby Pro Logic
(DU PL) & DTS (Em) indicators

The Dolby Digital indicatorlDUD) appears when
a Dolby Digital soundtrack is selected. The Dolby
Pro Logic (DflPL) indicator appears when the
DV-CPSOZ's Dolby Pro Logic decoder is on. The
DTS indicator appears when a DTS soundtrack is
selected.

.DISC indicators 1-6

These indicators show how many discs are loaded.

W hen the disc tray is closed. all of the disc indicators
appear until the DV-CP802 has checked each

bay for the presence of a disc. If a bay is found to
have no disc, the corresponding indicator disappears.

DV-C P802

Page 98

DV-C P802

IC BLOCK DIAGRAM ANDTERMINAL DESCRIPTIONS-28
02401: N] M2373AF (Adjustable High Precision Shunt Regulator)

Pin Configuration Block Diagram

C athode

NC :I REFERENCE

Reference 0*+

ANODE >_K

VREFL _
NC I] CATHODE

T

Anode
