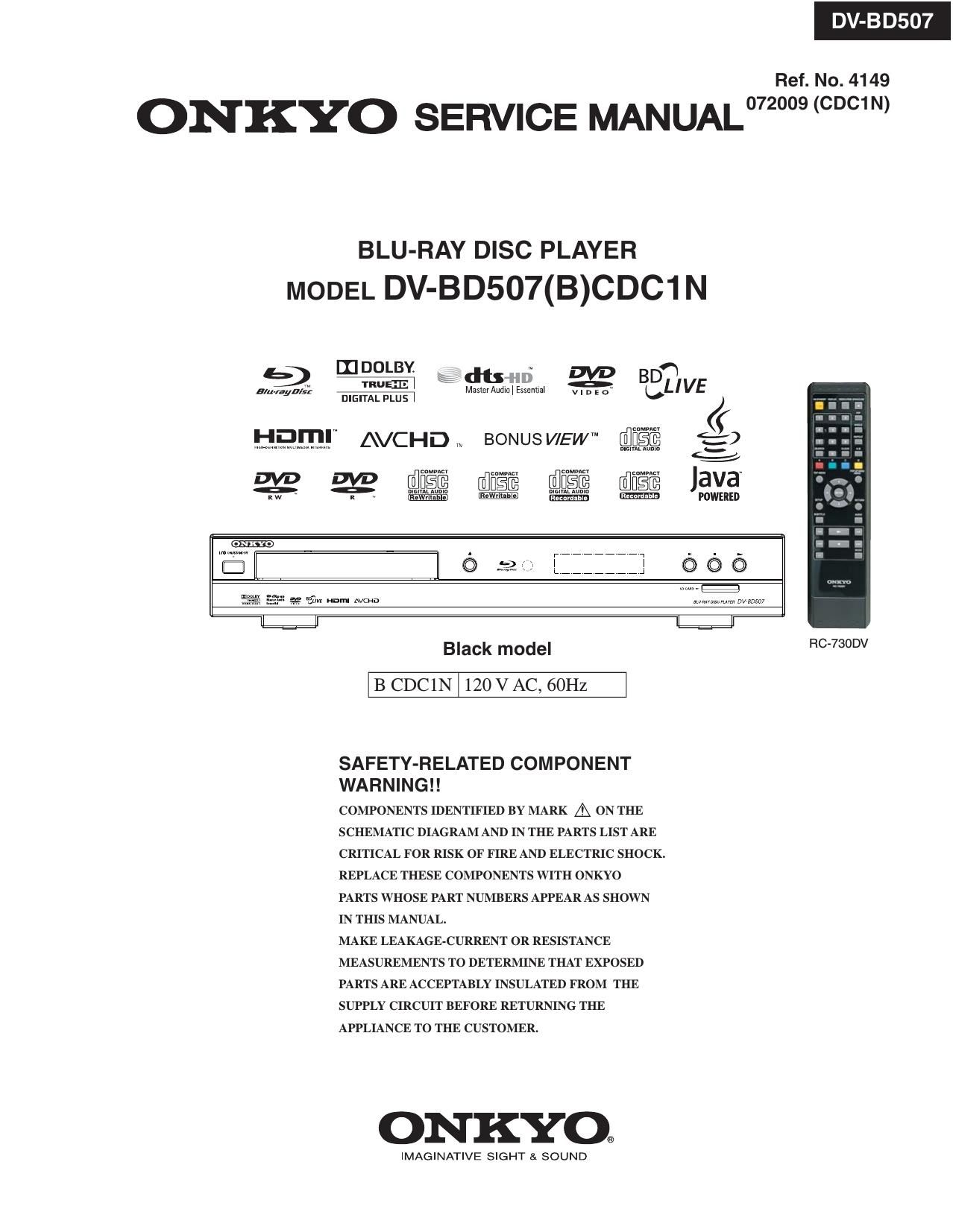

Onkyo DVBD 507 Service Manual

Page 1

DV-BD507

Ref. No. 4149

ONKYO SERVICE M ANU AL072009 (CDC1N)

BLU-RAY DISC PLAYER

MODEL DV-BD507(B)CDC1 N

9 mfiflgm dtswi DVD BD"

JIM-[Hy 3} WE MasterAuflia \ Essentia V . D E o LLI VE(

HD'T AVCHD W BONUS VIEW EDEE é)
U,

DVD

22 [ESE EDEE [Em EEE
R ~

mwmme) mm

3 3 gm Ham. MW

Black model

B CDClN 120 V AC, 60Hz

SAFETY-RELATED COMPONENT
WARNING! !

COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE

CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.

REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT 0R RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

ONKYO.

IMAGINATIVE SIGHT SI SOUND

Java'

POWERED

M mum-u: W 80507

RC-730DV

Page 2

TABLE OF CONTENTS

Specifications .......................................................................... 1-1-1
Laser Beam Safety Precautions ............................................................ 1-2-1
Important Safety Precautions .............................................................. 1-3-1
Standard Notes for Servicing .............................................................. 1-4-1
Cabinet Disassembly Instructions ........................................................... 1-5-1
How to Initialize the BLU-RAY Disc Player .................................................... 1-6-1
Firmware Renewal Mode ................................................................. 1-7-1
Block Diagrams ......................................................................... 1-8-1
Schematic Diagrams / CBA and Test Points ................................................... 1-9-1
Exploded Views ........................................................................ 1-10-1
Mechanical Parts List ................................................................... 1-11-1
Electrical Parts List ..................................................................... 1-12-1

Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Page 10

Instructions for Handling Semi-
conductors

Electrostatic breakdown of the semi-conductors may
occur due to a potential difference caused by
electrostatic charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1 M9) that is
properly grounded to remove any static electricity that
may be charged on the body.

2. Ground for Workbench

Be sure to place a conductive sheet or copper plate
with proper grounding (1 M9) on the workbench or
other surface, where the semi-conductors are to be
placed. Because the static electricity charge on
clothing will not escape through the body grounding
band, be careful to avoid contacting semi-conductors
with your clothing.

CBA

Grounding Band

1M9

\\

Conductive Sheet or
Copper Plate

1-4-4

BDN_SN
