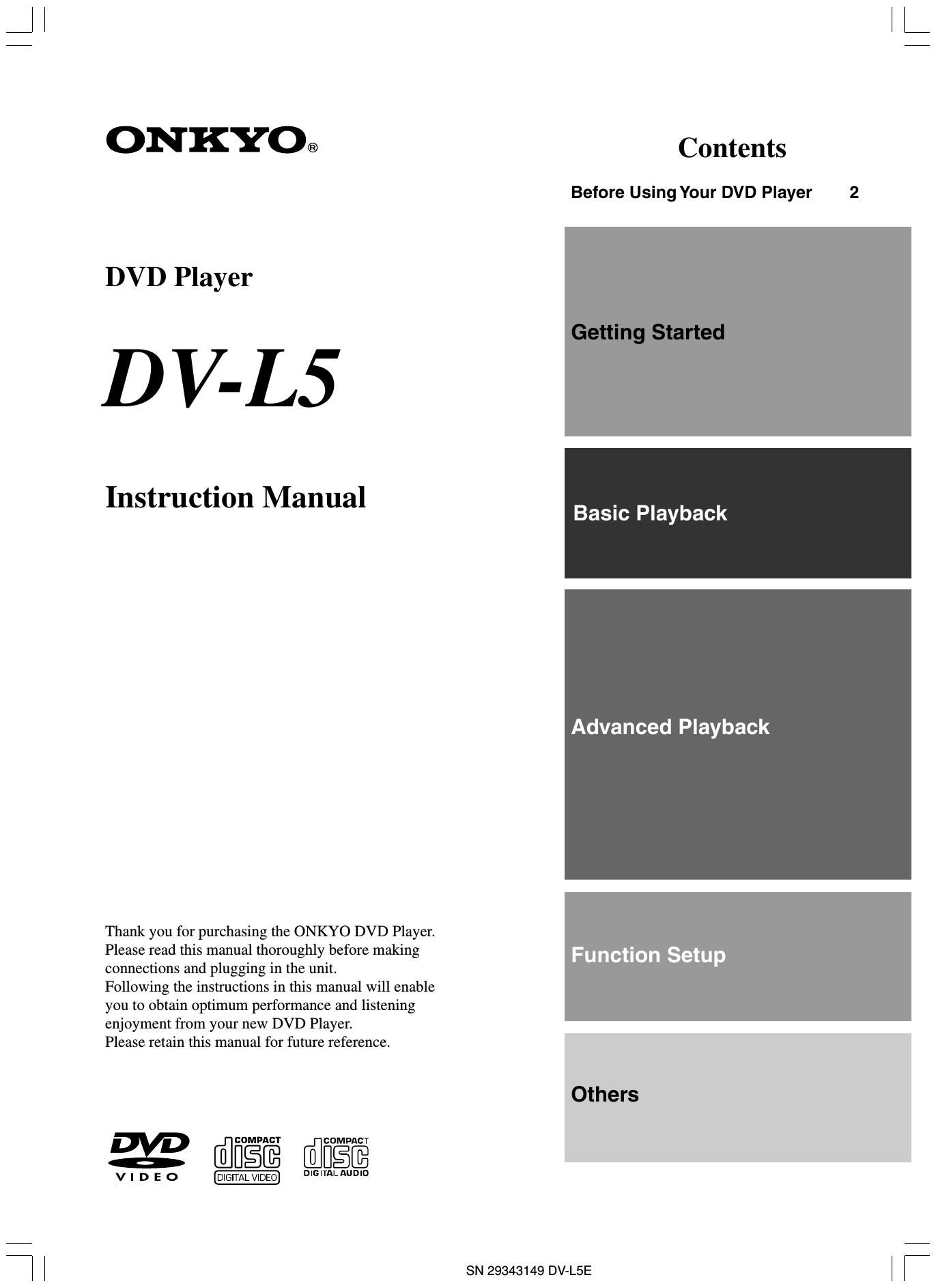

ONKYO®

DVD Player

DV-L5

Instruction Manual

Thank you for purchasing the ONKYO DVD Player.
Please read this manual thoroughly before making
connections and plugging in the unit.

Following the instructions in this manual will enable
you to obtain optimum performance and listening
enjoyment from your new DVD Player.

Please retain this manual for future reference.

M [LE-SE [flfigfi

v I D E o _\GlTALVlDEU D'G'TALAUDIO

Contents

Before Using Your DVD Player

Basic Playback

Advanced Playback

Function Setup

Others

SN 29343149 DV-LSE

2
