Onkyo DRS 2.2 Owners Manual

Extracted text from Onkyo DRS 2.2 Owners Manual (Ocr-read)

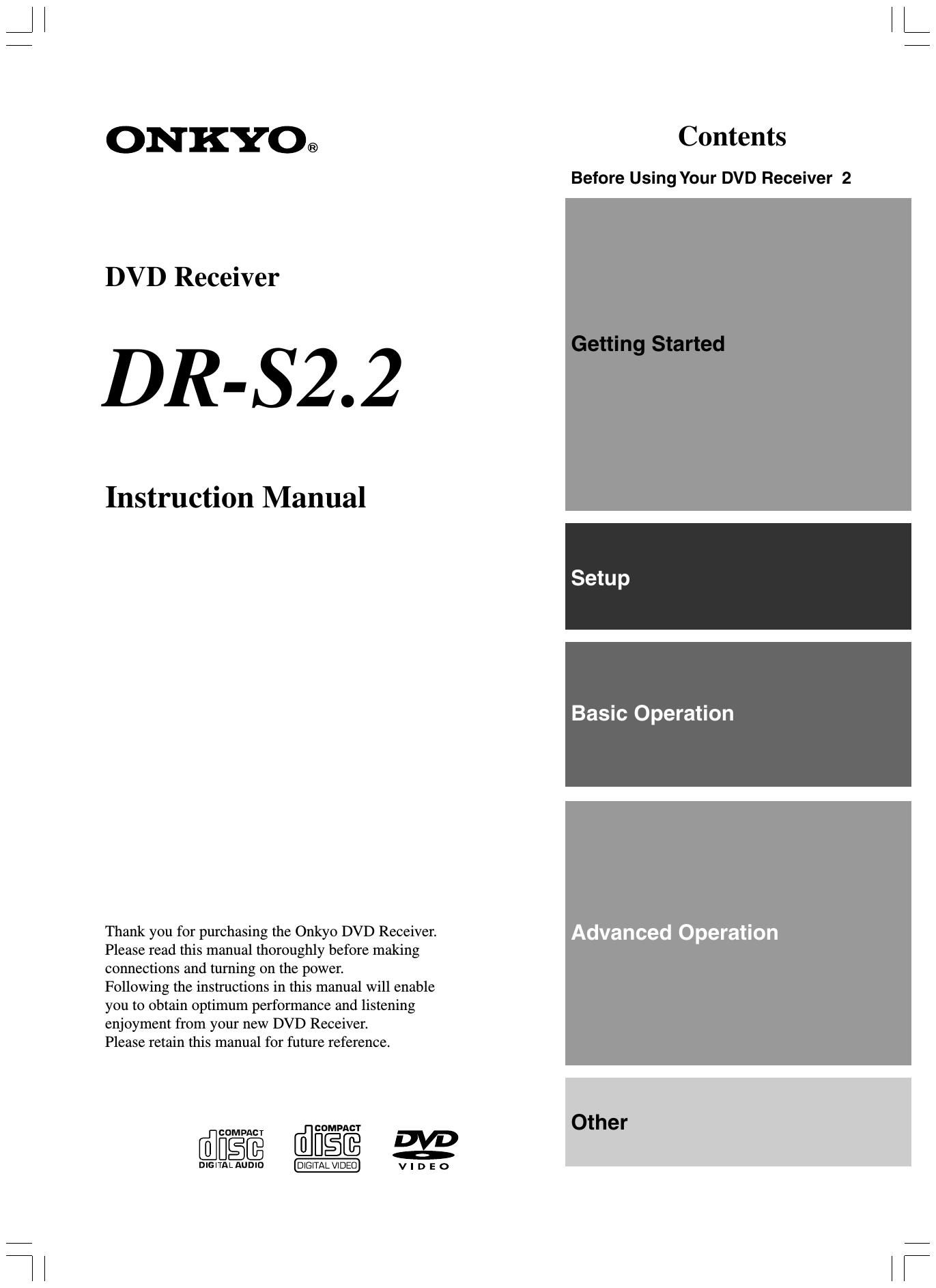

Page 1

ONKYO® Contents

Before Using Your DVD Receiver 2

DVD Receiver

DR-S2.2

Instruction Manual

Basic Operation

Thank you for purchasing the Onkyo DVD Receiver. Advanced Operation
Please read this manual thoroughly before making

connections and turning on the power.

Following the instructions in this manual will enable
you to obtain optimum performance and listening
enjoyment from your new DVD Receiver.

Please retain this manual for future reference.

@figffi Efl-figfi 1V2 Other
DIGITASLAUDID _|GITAL VlDED V | D E O

Page 2

WARNING:

TO REDUCE THE RISK OF FIRE 0R ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USERESERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL

A

AVIS

RISK OF ELECTRIC SHOCK RISQUE DE CHOC ELECTHIQUE
DO NOT OPEN NE PAS OUVRIR

The lightning flash with arrowhead symbol, within an equilateral
triangle, Is Intended to alert the user to the presence of uninsulated
dangerous voltage" within the product's enclosure that may be of
suflicient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.

Important Safeguards

11.

12.

Read Instructions - All the safety and operating instructions
should be read before the appliance is operated.

Retain Instructions - The safety and operating instructions
should be retained for future reference.

Heed Warnings -A|| warnings on the appliance and in the
operating instructions should be adhered to.

Follow Instructions - All operating and use instructions should
be followed.

Cleaning - Unplug the appliance from the wall outlet (the
mains) before cleaning. The appliance should be cleaned only
as recommended by the manufacturer.

Attachments - Do not use attachments not recommended by
the appliance manufacturer as they may cause hazards.

Water and Moisture - Do not use the appliance near water -for
example, near a bath tub, wash bowl, kitchen sink, or laundry
tub; in a wet basement; or near a swimming pool; and the like.
Accessories - Do not place the appliance on an unstable cart,
stand, tripod, bracket, or table. The appliance may fall, causing
serious iniury to a child or adult, and serious damage to the
appliance. Use only with a cart, stand, tripod, bracket, or table
recommended by the manufacturer, or sold with the appliance.
Any mounting of the appliance should follow the manufacturer's
instructions, and should use a mounting accessory
recommended by the manufacturer.

An appliance and cart combination should
be moved with care. Quick stops.
excessive force, and uneven surfaces
may cause the appliance and cart .
combination to overturn.

PORTABLE CART WARNING

-.

saizsA v

. Ventilation - Slots and openings in the cabinet are provided for

ventilation and to ensure reliable operation of the appliance and
to protect it from overheating, and these openings must not be
blocked or covered. The openings should never be blocked by
placing the appliance on a bed, sofa, rug, or other similar
surface. The appliance should not be placed in a built-in
installation such as a bookcase or rack unless proper ventilation
is provided. There should be free space of at least 20 cm (8 in.)
and an opening behind the appliance.

Power Sources - The appliance should be operated only from
the type of power source indicated on the marking label. It you
are not sure of the type of power supply to your home, consult
your appliance dealer or local power company.

Grounding or Polarization - The appliance may be equipped
with a polarized alternating current line plug (a plug having one
blade wider than the other). This plug will fit into the power
outlet only one way. This is a safety feature. If you are unable to
insert the plug fully into the outlet, try reversing the plug. If the
plug should still fail to fit, contact your electrician to replace your
obsolete outlet. Do not defeat the safety purpose of the
polarized plug.

13.

14.

16.

17.

18.

20.

Power-Cord Protection - Power-supply cords (mains leads)
should be routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying particular
attention to cords (leads) at plugs, convenience receptacles, and
the point where they exit from the appliance.

Outdoor Antenna (Aerial) Grounding - If an outside antenna (aerial)
or cable system is connected to the appliance, be sure the antenna
(aerial) orcable system is grounded so as to provide some protection
against voltage surges and built-up static charges. Article 810 of the
National Electrical Code, ANSI/NFPA 70, provides information with
regard to proper grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna- (aeriaI-) discharge unit,
size of grounding conductors, location of antenna- (aeriaI-) discharge
unit, connection to grounding electrodes, and requirements for the
grounding electrode. See FIGURE 1.

. Lightning - For added protection for the appliance during a

lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet (the mains) and

disconnect the antenna (aerial) or cable system. This will prevent
damage to the appliance due to lightning and power-line surges.

Power Lines - An outside antenna (aerial) system should not be
located in the vicinity of overhead power lines or other electric light or
power circuits, or where it can fall into such power lines or circuits.
When installing an outside antenna (aerial) system, extreme care
should be taken to keep from touching such power lines or circuits as
contact with them might be fatal.

Overloading - Do not overload wall outlets, extension cords
(leads), or integral convenience receptacles as this can result in a
risk of fire or electric shock.

Object and Liquid Entry - Never push objects of any kind into the
appliance through openings as they may touch dangerous voltage
points or short-out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the appliance.

. Servicing - Do not attempt to service the appliance yourself as

opening or removing covers may expose you to dangerous voltage
or other hazards. Refer all servicing to qualified service personnel.

Damage Requiring Service - Unplug the appliance form the wall
outlet (the mains) and refer servicing to qualified service personnel
under the following conditions:

A. When the power-supply cord (mains lead) or plug is damaged,

B. If liquid has been spilled, or objects have fallen into the
appliance,
C. if the appliance has been exposed to rain or water,

D. If the appliance does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as an improper
adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to restore
the appliance to its normal operation,

E. if the appliance has been dropped or damaged in any way, and

F. When the appliance exhibits a distinct change in performance -
this indicates a need for service.

Page 14

14

Index to Parts and Controls

I Hear panel

(D (23 C3) @ C5)

(,6) C7 ®

North American and South
American model

)_

E '1" m ...

@@@
:0).

.vmam
cum:

ft
m r" gs * ,

sun
mm
In: em


nan t-Jm-WMNE


owmmvuxn omr
v .- ,,,


960)

Shapes of jacks vary depending on the area which it was purchased.

(1) ANTENNA terminals [24, 25]
These terminals are for connecting the FM antenna and AM
antenna.

(2) MON OUT jacks [16, 17]
The monitor output includes both RCA type and S video
configurations. This output is for connecting television monitor or
projector.

® VIDEO (VIDEO 1 IN /VIDEO 2 INIOUT) jacks [21]
There are 2 video inputs and 1 outputs. Connect LD players, VCRs
or other video components to the video inputs. The video output
channel can be used to connect video tape recorder for making
recordings.

(47 Ftl REMOTE CONTROL connector [23]
Connect the Onkyo components that have RI connectors such as
a CD player, and cassette tape deck using the RI cables provided
with them. When these components are interconnected, they can
be controlled from the remote controller provided with the DVD
Receiver.
After connecting the RI connectors, check the operation of the
remote controller buttons for use in controlling other components.

(9 SVIDEO (VIDEO 1 IN [VIDEO 2 lN/OUT) jacks [21]
There are 2 video inputs and 1 output. Connect LD players, VCRs
or other video components to the video inputs. The video output
channel can be used to be connected to video tape recorder for
making recordings.

(9 DIGITAL OUTPUT OPT jack [21, 22]
This jack is for connecting MD recorder, CD recorder, hard disk
recorder or other component with optical fiber cable.

(77 DIGITAL INPUT (VIDEO 1 COAX, VIDEO 2 OPT) jacks [21]
These are the digital audio inputs. There are 1 digital input with
optical jacks and 1 with a coaxial jack. The inputs accept digital
audio signals from MD players, hard disk recorders, CD players, or
other digital source component.

® (European models)
AV CONNECTOR terminal [17]
Use a 21 -pin SCART cable to connect to a TV or monitor
compatible with this type of connection. Both audio (2 channel
stereo) and video (Video, S-video, and RGB) signals are output
from the AV CONNECTOR.

® European model
)1


j

SPEAKER

{@

(Other models)

COMPONENT VIDEO OUTPUT YlPa/Pn jacks [16]

If your TV or monitor has component video inputs, you can produce
a higher quality picture on your TV or monitor by connecting to the
component video outputs on this unit.

(9) SUB WOOFER PRE OUT jack [18, 19]
This terminal is for connecting an active subwoofer.

(0) AUDIO L/R (TV/LINE IN [TAPE/MD/HD lN/OUTI
VIDEO 1 IN [VIDEO 2/CDR/PC INIOUT) jacks [16, 17]
These are the analog audio inputs and outputs. There are 4 audio
inputs and 2 audio outputs. The audio inputs and outputs require
RCA type connectors.
When connecting a VCR or other video component, make sure you
connect the audio and video leads together (i.e., both to VIDEO 1).

® (North American and South American model)
FRONT SPEAKERS A/B, SURROUND SPEAKERS and
CENTER SPEAKER terminals [18]
FRONT SPEAKERS A system: To enjoy surround sound. Speaker
terminals are provided for the front left, front right, center, surround
left and surround right speakers.
FRONT SPEAKERS B system: To enjoy stereo sound. Speaker
terminals are provided for the front left and front right.

(Other models)

FRONT SPEAKERS, CENTER SPEAKER and SURROUND
SPEAKERS terminals [19]

Speaker terminals are provided for the front left, front right, center,
surround left and surround right speakers. Speaker outputs are
compatible with banana plug connectors.

Page 31

Before operating the
remote controller
Press MODE AUDIO.

The remote controller

remains in the AUDIO mode,
until another MODE button is
pressed.

AUD/D

SUBWOOFEH MODE

Unit

suawoorm
MooE

ll)
/

Remote controller

sw MODE

Press SUBWOOFER MODE on the
unit or SW MODE on the remote
controller.

SW indicator lights up when SW Mode 1, SW
Modez or SW Mode 3 is selected.

With the first press of the button, you can
check the present setting. Then each
press of the button changes the subwoofer
mode as follows (a tip on how to select the
right subwoofer mode is in parentheses):
SW Mode 1
(When small-with limited bass signal
handling-front speakers are
connected)
i
SW Mode 2
(When large-wideband-front speakers
are connected)
i
SW Mode 3
(When large-wideband speakers are
connfcted to all channel)
SW Off
(When no subwoofer is connected)

The initial setting varies depending on the
area which it was purchased.

North American and South American
model: SW Mode 1

Other models: SW Mode 2

The normal display resumes in three
seconds.

31

Page 43

SLEEP

DIMMER

PHONES jack

Listening Through Headphones

Connect the plug of the stereo headphones to the
PHONES jack on the DVD Receiver.

Notes

- The speakers will not reproduce sound while headphones are
connected.

- The listening mode is set to Stereo" after connecting the
headphones to the PHONES jack.

- When you disconnect the headphones, the listening mode returns
to the previous mode.

Controlling the Brightness of the
display on the DVD Receiver

\4 '

Remote Press DIMMER.
commlle' only Each press of the button changes the
W brightness as follows:

The display becomes less bright.
The display is dimmed.
i

The display is dimmed, and the front
panel illumination goes off.
i

The display resumes the original
brightness and the front panel
illumination turns on.

MASTER VOLUME

SPEAKER NE
(North Ameri-
can and South
American
models only)

Using the Sleep Timer

Remote Press SLEEP.
controller only Sleep 90min appears in the multipurpose

display for about 5 seconds, which means the

LEE?

5 DVD Receiver will turn off and enter standby
mode in 90 minutes. Also the SLEEP
indicator is lit in the display while the sleep
timer is On.

Each press of the button makes the
remaining time shorter by 10 minutes.

I Checking the remaining time

Press SLEEP while the Sleep Timer is On.
If you press SLEEP while the remaining time is displayed,
the remaining time is reduced by 10 minutes.

I Canceling the Sleep Timer

Press SLEEP repeatedly until the SLEEP indicator goes
off.

43
