Onkyo CR 515 CR 315 Owners Manual

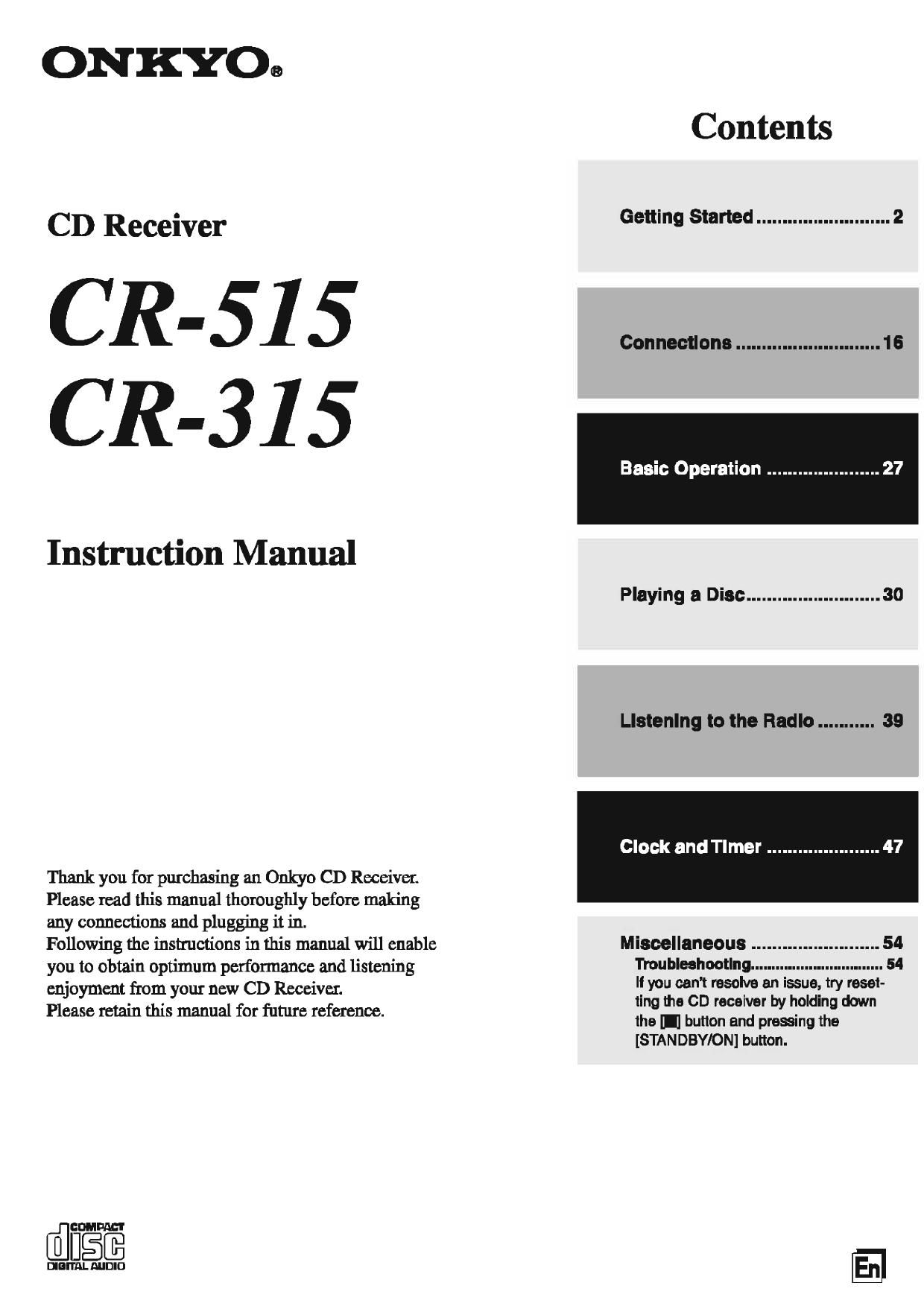

Page 1

ON KYOQ

CD Receiver

CR-515
CR-315

Instruction Manual

Thank you for purchasing an Onlcyo CD Receiver.
Please read this manual thoroughly before making
any connections and plugging it in.

Following the instructions in this manual will enable
you to obtain optimum performance and listening
enjoyment from your new CD Receiver.

Please retain this manual for future reference.

Contents

Getllng Started .......................... 2

Connectlone ............................ 16

Basic Operatlon ..

Playing 3 Disc .......................... 30

Llstenlng to the Radlo ........... 39

Clock and Tlmer ...................... 47

Mlseelleneous ......................... 54
Thuhleehootlng .......................... 54
It you can'! resolve an issue, try resel-
ling the CD receiver by holding down
the II] burlon and pressing the
[STANDBY/ON] button.

Page 2

WARNING:

TO REDUCE THE RISK OF FIRE 0R ELECTRIC
SHOCK, DO NOT EXPOSE THlS APPARATUS
T0 RAIN OR MOISTURE.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO
USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE
PERSONNEL.

IIISKOF ELECTRIC SHOCK BISQUE DE CHOC ELECTRIQUE
DO NOT OPEN NE PAS OUVRIII

; equilateral triangle, is intended to alert the user to the

j: intended to alert the user to the presence of important

WARNING AVIS

The lightning flash with arrowhead symbol, within an

presence of uninsulated dangerous voltage within
the products enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.

The exclamation point within an equilateral triangle is

operating and maintenance (servicing) instructions in
the literature accompanying the appliance.

Important Safety Instructions

. Read these instructions.

. Keep these instructions.

Heed all warnings.

. Follow all instructions.

. Do not use this apparatus near water.
. Clean only with dry cloth.

. Do not block any ventilation openings. Install in
accordance with the manufacturers instructions.

8. Do not install near any heat sources such as radia-
tors, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are pro-
vided for your safety. If the provided plug does not
fit into your outlet, consult an electrician for
replacement of the obsolete outlet.

10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience recepta-
cles, and the point where they exit from the appara-
tus.

11. Only use attachments/accessories specified by the
manufacturer.

12. Use only with the cart, stand,
tripod, bracket, or table spec-
ified by the manufacturer, or
sold with the apparatus.
When a cart is used, use cau-
tion when moving the cart/
apparatus combination to
avoid injury from tip-over. sum

13. Unplug this apparatus during lightning storms or
when unused for long periods of time.

14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.

\onur-tspaNI-u

PORTABLE CART WARNING

15.

16.

17.

18.

Damage Requiring Service

Unplug the apparatus from the wall outlet and refer

servicing to qualified service personnel under the

following conditions:

A. When the power-supply cord or plug is damaged,

B. If liquid has been spilled, or objects have fallen
into the apparatus,

C. If the apparatus has been exposed to rain or
water,

D. If the apparatus does not operate normally by
following the operating instructions. Adjust only
those controls that are covered by the operating
instructions as an improPer adjustment of other
controls may result in damage and will often
require extensive work by a qualified technician
to restore the apparatus to its normal operation,

E. If the apparatus has been dropped or damaged in
any way, and

F. When the apparatus exhibits a distinct change in
performance this indicates a need for service.

Object and Liquid Entry

Never push objects of any kind into the apparatus

through openings as they may touch dangerous volt-

age points or short-out parts that could result in a

fire or electric shock.

The apparatus shall not be exposed to dripping or

splashing and no objects filled with liquids, such as

vases shall be placed on the apparatus.

Dont put candles or other burning objects on top of

this unit.

Batteries

Always consider the environmental issues and fol-

low local regulations when disposing of batteries.

If you install the apparatus in a built-in installation,

such as a bookcase or rack, ensure that there is ade-

quate ventilation.

Leave 20 cm (8") of free space at the top and sides

and 10 cm (4") at the rear. The rear edge of the shelf

or board above the apparatus shall be set 10 cm (4")

away from the rear panel or wall, creating a flue-like

gap for warm air to escape.

Page 58

58

Memo
