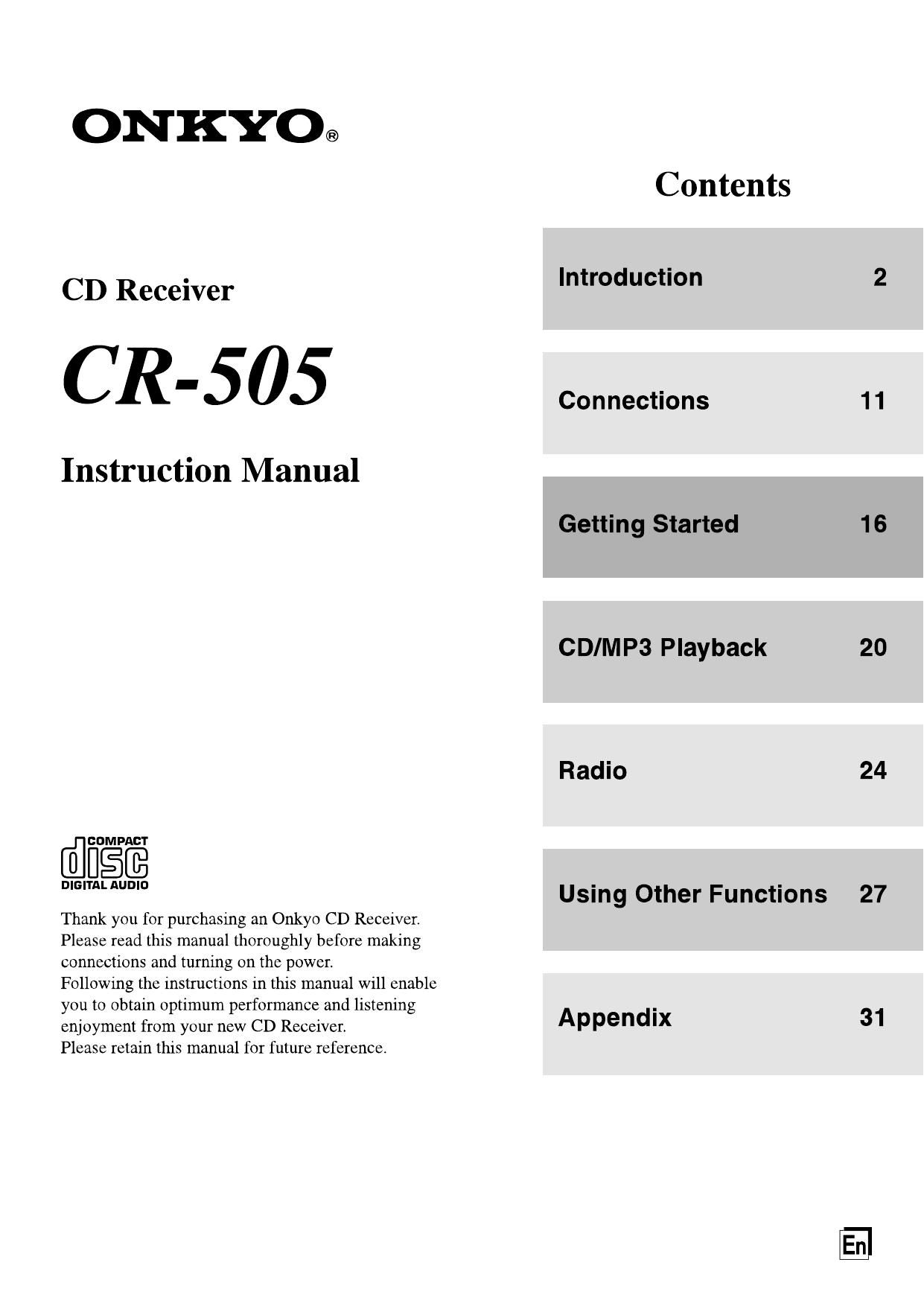

ON KYO®

CD Receiver

CR-505

Instruction Manual

@figé

DIGITAL Aunlo

Thank you for purchasing an Onkyo CD Receiver
Please read this manual thoroughly before making
connections and turning on the power.

Following the instructions in this manual will enable
you to obtain optimum performance and listening

enjoyment from your new CD Receiverr
Please retain this manual for future reference

Contents

Introduction

Connections

Getting Started

CDIM P3 Playback

Radio

Using Other Functions

Appendix

11

16

20

24

27

31

En
