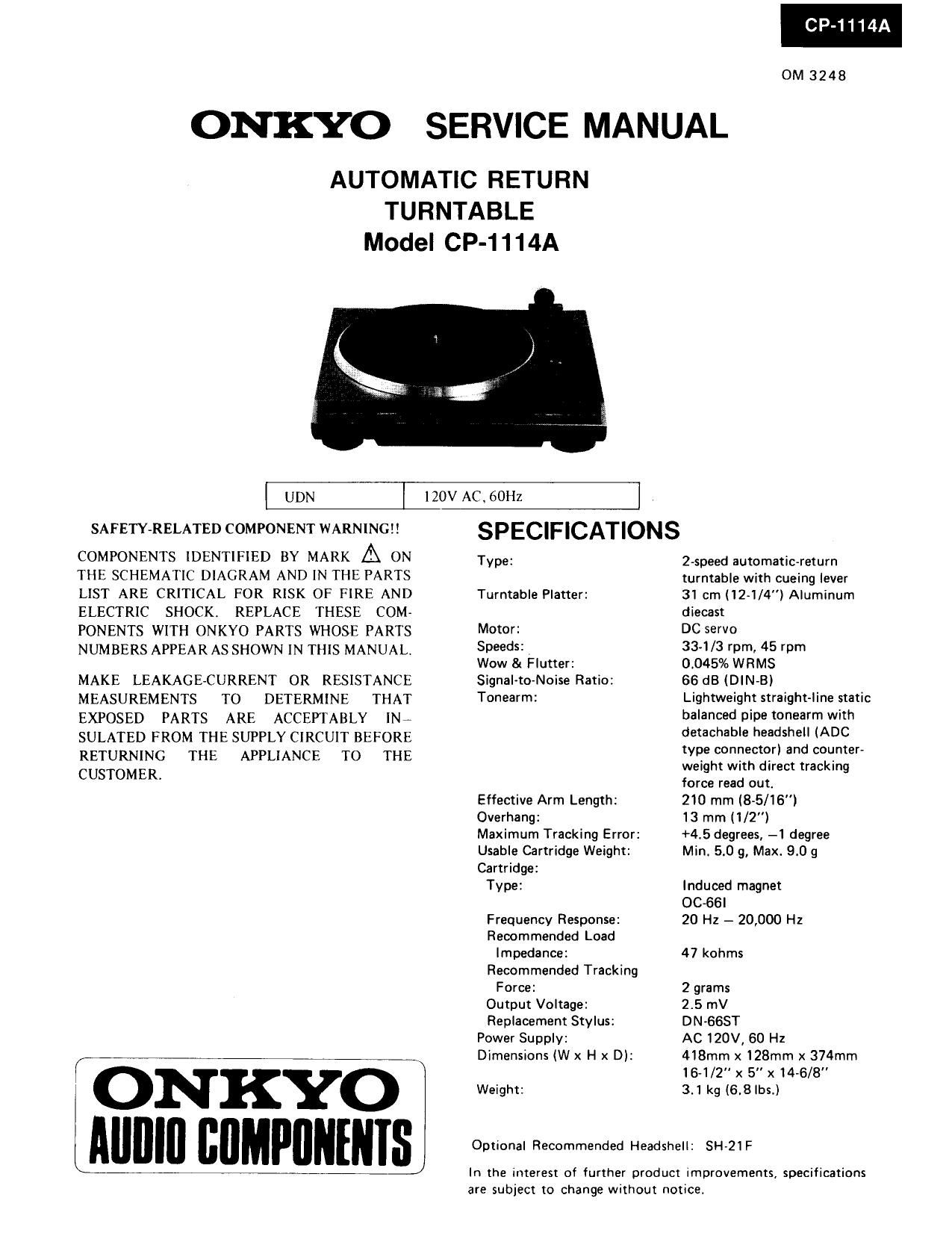

CP-1114A

OM 3248

ONKYO SERVICE MANUAL

AUTOMATIC RETURN
TURNTABLE
Model CP-1114A

UDN

120V AC. 60Hz

SAFETY-RELATED COMPONENT WARNING

COMPONENTS IDENTIFIED BY MARK A ON
THE SCHEMATIC DIAGRAM AND IN THE PARTS
LIST ARE CRITICAL FOR RISK OF FIRE AND
ELECTRIC SHOCK. REPLACE THESE COM»
PONENTS WITH ONKYO PARTS WHOSE PARTS
NLHVIBERS APPEAR AS SHOWN IN THIS MANUAL

MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT
EXPOSED PARTS ARE ACCEPTABLY 1N7
SULATED FROM THE SUPPLY CIRCUIT BEFORE
RETURNING THE APPLIANCE TO THE
CUSTOMER.

{ONKYO
Ullllllll BUMPIINENIS

SPECIFICATIONS

Type:
Turntable Platter:

Motor:

Speeds:

Wow Si Flutter:
Signal-to-Noise Ratio:
Tonearm:

Effective Arm Length:
Overhang:

Maximum Tracking Error:

Usable Cartridge Weight:
Cartridge:
Type:

Frequency Response:
Recommended Load
Impedance:
Recommended Tracking
Force:
Output Voltage:
Replacement Stylus:
Power Supply:
Dimensions (W x H x D):

Weight:

Optional Recommended Headshell:

2~speed automatic-return
turntable with cueing lever
31 cm (12-1/4") Aluminum
diecast

DC servo

33-1/3 rpm, 45 rpm

0,0453% WRMS

66 dB (DIN-B)

Lightweight straight-line static
balanced pipe tonearm with
detachable headshell (ADC
type connector) and counter
weight with direct tracking
force read out

210 mm (8-5/16")

13 mm (1/2")

+4.5 degrees. -1 degree

Min. 5.0 9, Max. 9.0 g

Induced magnet
OC-66l
20 Hz - 20,000 Hz

47 kohms

2 grams

2.5 mV

DNvGBST

AC 120V, 60 Hz

418mm x 128mm x 374mm
16-1/2" x 5" x 14-6/8

3.1 kg (6,8 lbs.)

SH-21F

In the interest of further product improvements, specifications
are subiect to change without notice.
