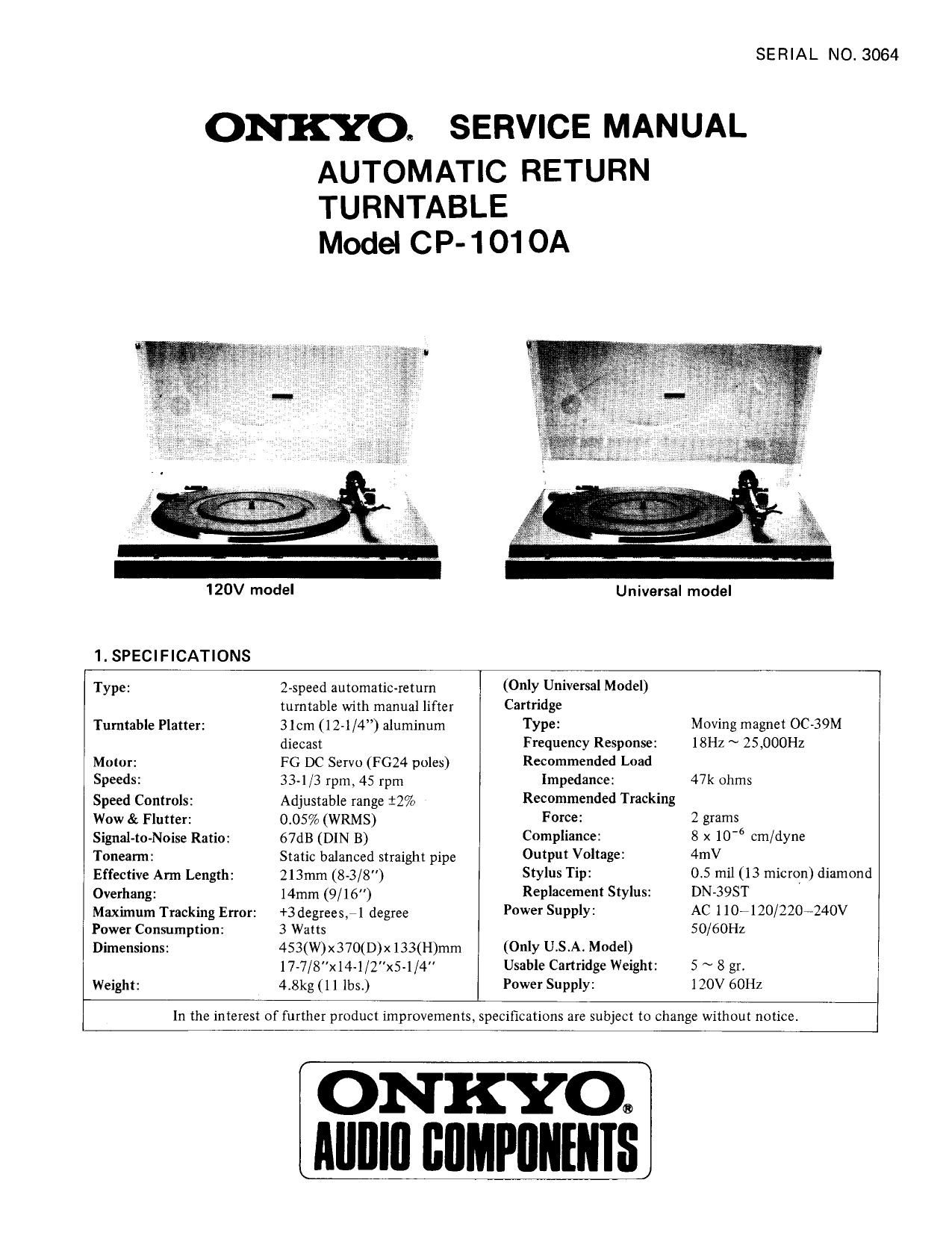

2. SERVICE PROCEDURES AND ADJUSTMENTS

1. VOLTAGE CONVERSION (Universal model)

This turntable may be set to operate at either 110V- VOLTAGE
120v or 220v7240v at 50Hz to 60Hz. The voltage LNLR'EETW

selector switch is under the turntable. If a voltage change
is necessary, remove the lock plate, switch to the proper
voltage, and replace the plate.

-SCREW 4

CAUTION: DISCONNECT POWER SUPPLY CORD Side 5mm
FROM AC OUTLET BEFORE CONVERT-
ING VOLTAGE. m1

2. AUTOMATIC SHUT-OFF POSITION ADJUSTMENT
Adjust the shutoff position with the fine adjustment
screw. After fine adjustment, apply lock-tits to the
screw. To adjust the shut-off position for earlier, turn
the screw counter-clockwise. To adjust the shut-Off posi-
tion for later, turn the screw clockwise.

Adjustment
screw

Fig. 2

3. MOTOR SPEED ADJUSTMENT
When motor, turntable platter, belt, etc. are to be replaced or when the setting of revolution has been deviated by the
lapse of time, carry out adjustments in the following manner.
Set the speed control volume for fine adjustment nearly at the center, set the speed selector at 33> tum VRl provided on
the control circuit pc board to the point to stop the upper part of the stroboscopic stripes. Then, switchover the rotation
to 45, and adjust VR2 so as to stop the lower side ofthe stroboscopic stripes.

PRECAUTIONS: 1. For continued protection against fire or shock hazard, replace only with same type and same rating
fuse.
0.1A(UL) RN. 252064
2. Cabinet composition

Turntable board : Polystrene
Bottom board : Hardboard l I, i CO)
Dust cover : Polystrene \335
\\\_//
u E_ :7
Fig. 3
