Onkyo CP 101 A Service Manual

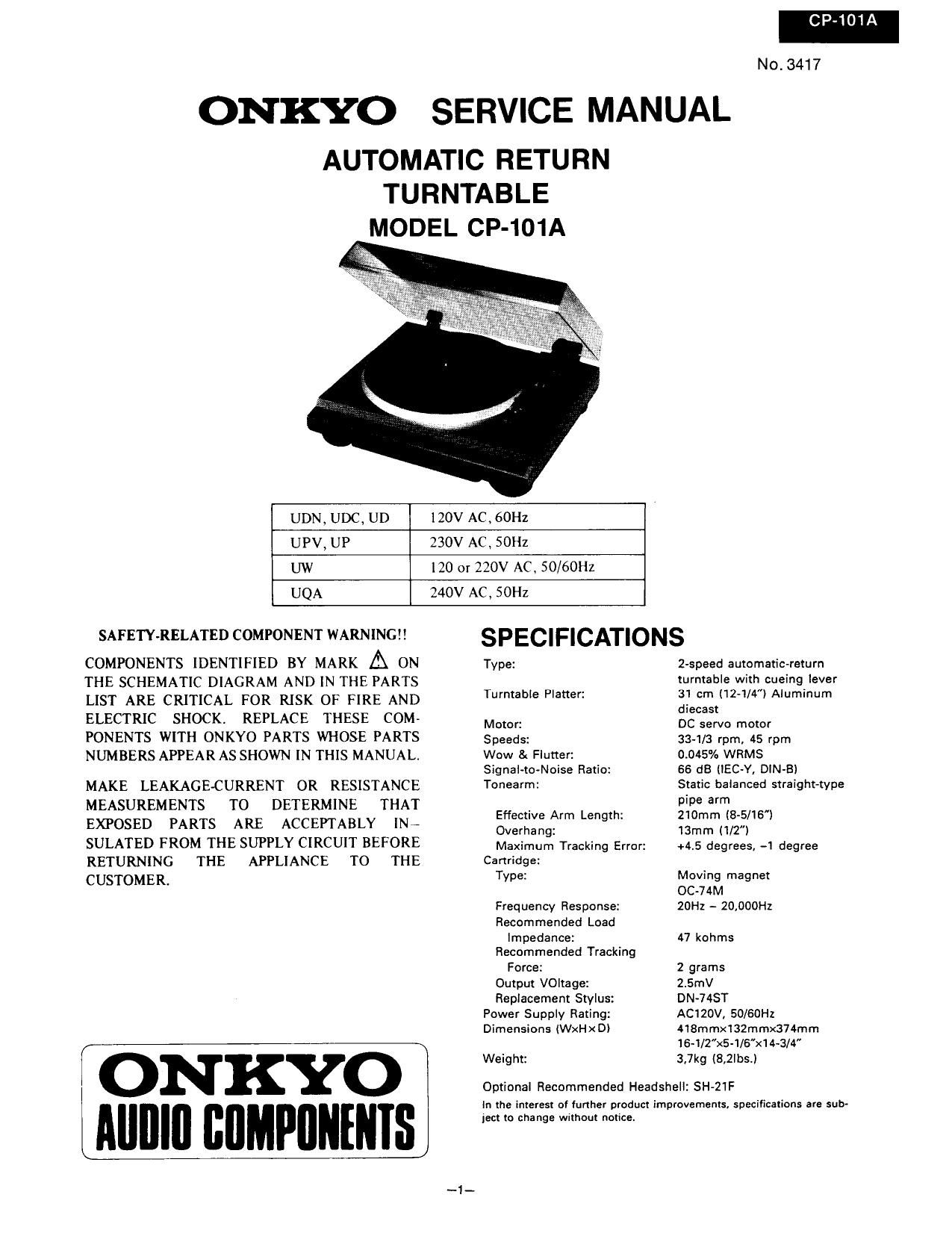

Page 1

i
i

CP-101A

No. 3417

ONKYO SERVICE MANUAL

AUTOMATIC RETURN
TURNTABLE
MODEL CP-101A

UDN, UDC, UD

IZOV AC, 60Hz

UPV, UP

230V AC. SOHZ

UW

120 or 220V AC, 50/60Hz

UQA

240V AC , 50Hz

SAFETYJIELATED COMPONENT WARNING-I!

COMPONENTS IDENTIFIED BY MARK A ON
THE SCHEMATIC DIAGRAM AND IN THE PARTS
LIST ARE CRITICAL FOR RISK OF FIRE AND
ELECTRIC SHOCK. REPLACE THESE COM-
PONENTS WITH ONKYO PARTS WHOSE PARTS
NUMBERS APPEAR AS SHOWN IN THIS MANUAL.

MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT
EXPOSED PARTS ARE ACCEPTABLY IN-
SULATED FROM THE SUPPLY CIRCUIT BEFORE
RETURNING THE APPLIANCE TO THE
CUSTOMER.

ONKYO i
lllllllll BllMPllNIllIS

~.1.

SPECIFICATIONS

Type:
Turntable Platter:

Motor:

Speeds:

Wow & Flutter:
Signal-to-Noise Ratio:
Tonearrn:

Effective Arm Length:
Overhangt

Maximu m Tracking Error:

Cartridge:
Type:

Frequency Response:
Recommended Load
Impedance:
Recommended Tracking
Force:
Output VOltage:
Replacement Stylus:
Power Supply Rating:
Dimensions lWxHx D)

Weight:

2-speed automatic-return
turntable with cueing lever
31 cm (12~1/4) Aluminum
diecast

DC servo motor

33-1/3 rpm, 45 rpm
0.045% WRMS

66 d8 (lEC~Y, DIN-B)

Static balanced straight-type
pipe arm

210mm (8-5/16')

13mm (1/2")

+4.5 degrees, -1 degree

Moving magnet
0C-74M
20H: - 20,000Hz

47 kohms

2 grams

2.5mV

DN-745T

ACIZOV. 50/60H2
418mmx132mmx374mm
16-1/2x5-1/5"x14»3l4
3.7kg (8.2!st

Optional Recommended Headshell: SH-ZlF
In the interest of iunher product improvements, specifications are sub-

ject to change without notice.
