Onkyo CONION C 126 Owners Manual

Page 1

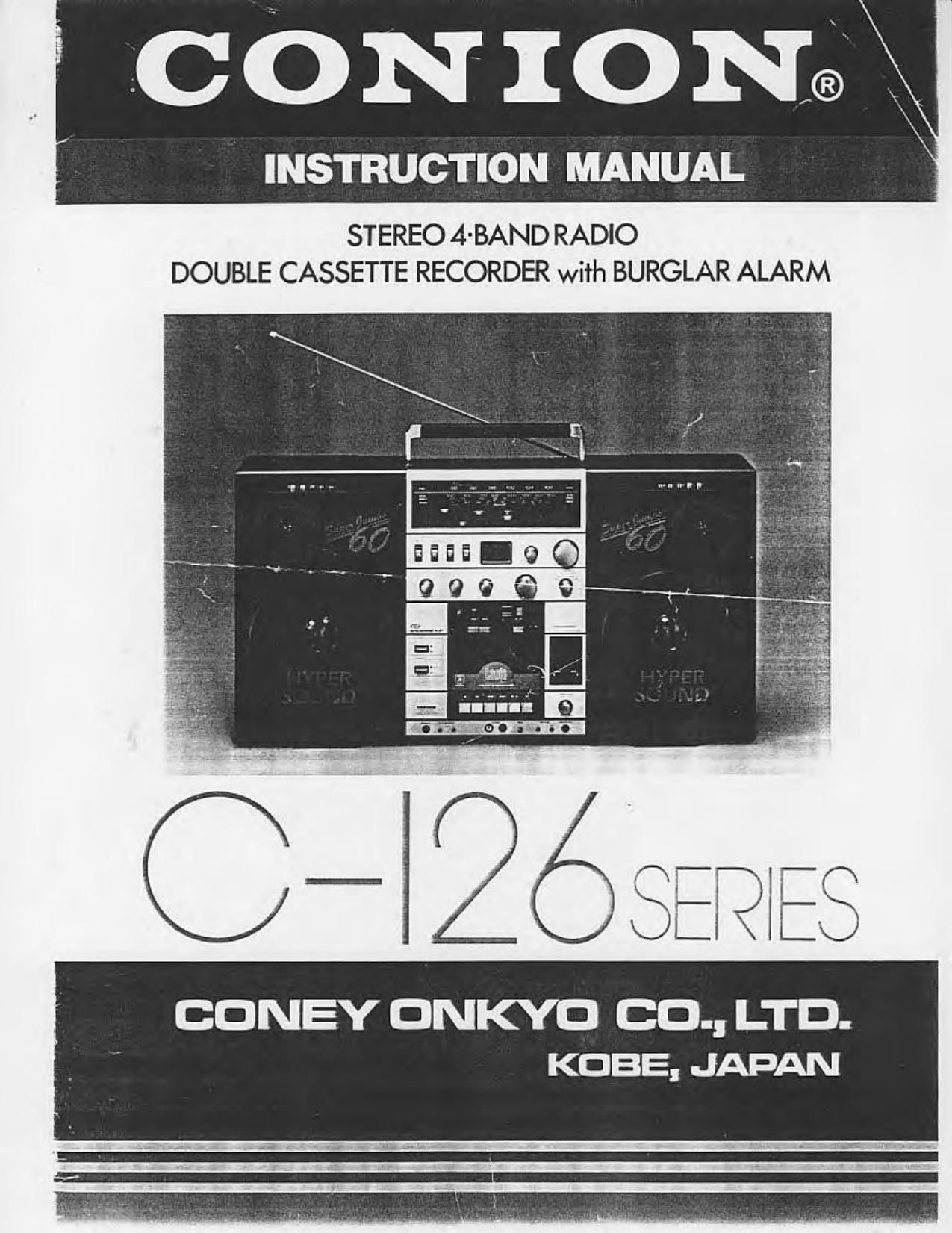

CON 10m;

INSTRUCTION MANUAL

STEREO 4-BAND RADIO
DOUBLE CASSETTE RECORDER with BURGLAR ALARM

CONEY DNKYO (20., LTD.
KOBE, JAPAN

Page 2

Thank you very much for purchasing the 6-126. This unit has many superior features as described below.
For optimum performance please read this instruction manual carefully.

Features
I High overall output of PMPO 110W (Music 20W).

I The unit can be powered by AC power. dry batteries, or a car battery using the three~way power supply system.
I The burglar alarm uses infrared rays to detect approaching forms. Place this device close to valuable objects to prevent theft.
0 The two-way speaker system, including 20cm woofers, is powerful enough to reproduce low and high frequency sounds.
o The double-cassette mechanism allows dubbing. Deck A is equipped with a full automatic stop function and deck 8 is
equipped with an automatic reverse function.
I The MSSI (Music Start Search lnstallationi function repeats or quickly finds any desired music.
I The LED tape running indicator monitors tape movement (deck A).
I The loudness circuit delivers deeper sounds at low volumes.
I The mic mixing function allows mixing to be changed as desired.
I The FM AFC circuit switch assures stable FM reception.
I The FM muting switch eliminates interstation noise during FM tuning.
I The advanced automatic stop mechaniml logic control unit facilitates soh Deck As one-touch recording mechanism is also very convenient.
I The cassette lid opens smoothly due to the soft ejection system.
I The two-position tape selector allows normal and chrome/metal tapes to be played.
0 The automatic recording function allows proper recording automatically.
I LEDs are used to indicate power, alarm activation. tuning. FM stereo and recording conditions. 5 '
To indicate accurate reception at a glance. the tuning indicator LED lights up only when tuning is done properly.
I The power indicator LED blinks if batteries are weak (if the unit operates on batteries).
(However, if the burglar alarm is activated, the alarm indicator blinks.)
* If the power indicator LED blinks, replace the batteries.
Precautions

I Do not expose the unit to high temperature (such as in direct sunlight or near a heater). high humidlty. dust or vibration.

I Before turning on the power, check that all connections are proper.

I Set the volume control knob at a low level before turning on the power. Failure to do so will result in sudden. annoying
loud sounth from the speakers and may result in breakage.

I Do not expose the unit to strong magnetic fields. for example do not place it near a TV set. Otherwise, a noise or burn may
result.

I ll you do not use the AC power source. the AC power cord plug should be disconnected from the household socket.

I Battery leakage can cause considerable damage to both electronic and mechanical parts of this unit. You are strongly
advised to remove any exhausted batteries as soon as possible. and to take extra precautions by removing batteries at any
time the unit will not be used for a lengthy period.

I Be sure not to use new batteries together with the used ones and all the batteries should be the same kind lor avoiding
leakage or other damages.

Name of parts :

1. Telesconic rod antenna 21, Tuning knob 41. Record button lor deck is
2. Cavrv-ns handle 22. Left speaker (Wooferi 42. Play button lor dock A
3. Left output power indicator 2:. Bass control knob 43. REW button for deck A
.1. Leu built-in mi: 24, Treble control knob 44. F, FWD button lor deck A
5. Dual pomlbr 25. Balance control knob 45. Slop/Elect button lor dock A
5» Rial builtln mi: 26. Volume control knob 46. Pause button lor deck A
7. Flight output power indicator 27, Funct-on knob 51. Headphone iack
a. La" speaker ITwemri 23. night speaker (Wanted 48. EXT. speaker jack leI
9. Power indicator 29. Cassette lid [or deck B 49. EXT. speaker jack lFllghrl
10. Alarm ifldkllm 30, Stop/Eiecl button lor deck B 50. PHONO iack (Leltl
11. Tuning indicator 31. Tape run direction indicator lor deck B 51. PHONO iaclt iFlightl
12. FM stereo indicator 32. Fast vvunding button for deck 8 52. Grand terminal
13. Recording indicator 33. Fast winding button lor deck 3 53. EXT. mic iack mm)
14. Right speaker (Tweeterl 3-1. Program button 54. EXT. mic inck Ifiighil
15. Tape selector swutch lDeck Al 35. Tape counter and reser button 55, Mixing rmc jack
16. Tape selector switch (Deck Bl as. Power button 56. FM EXT. antenna
17. Mode switch (for F, FFl 37, Alarm button 57, Battery compartrnonr lid
Mode/Beat cancel swclch lfor FL. FLG. FLE) Zia. Cassette lid lor deck A 58, ac power jack .
18. FM mute/AFC switch 39. Tape run indiwor '0' dICk A 59. AC power iack
18. BURGLAH ALARM 40, Mining level knob 60. AC voltage selector lF, FF, FL onlvl

20. Band selecror knob
