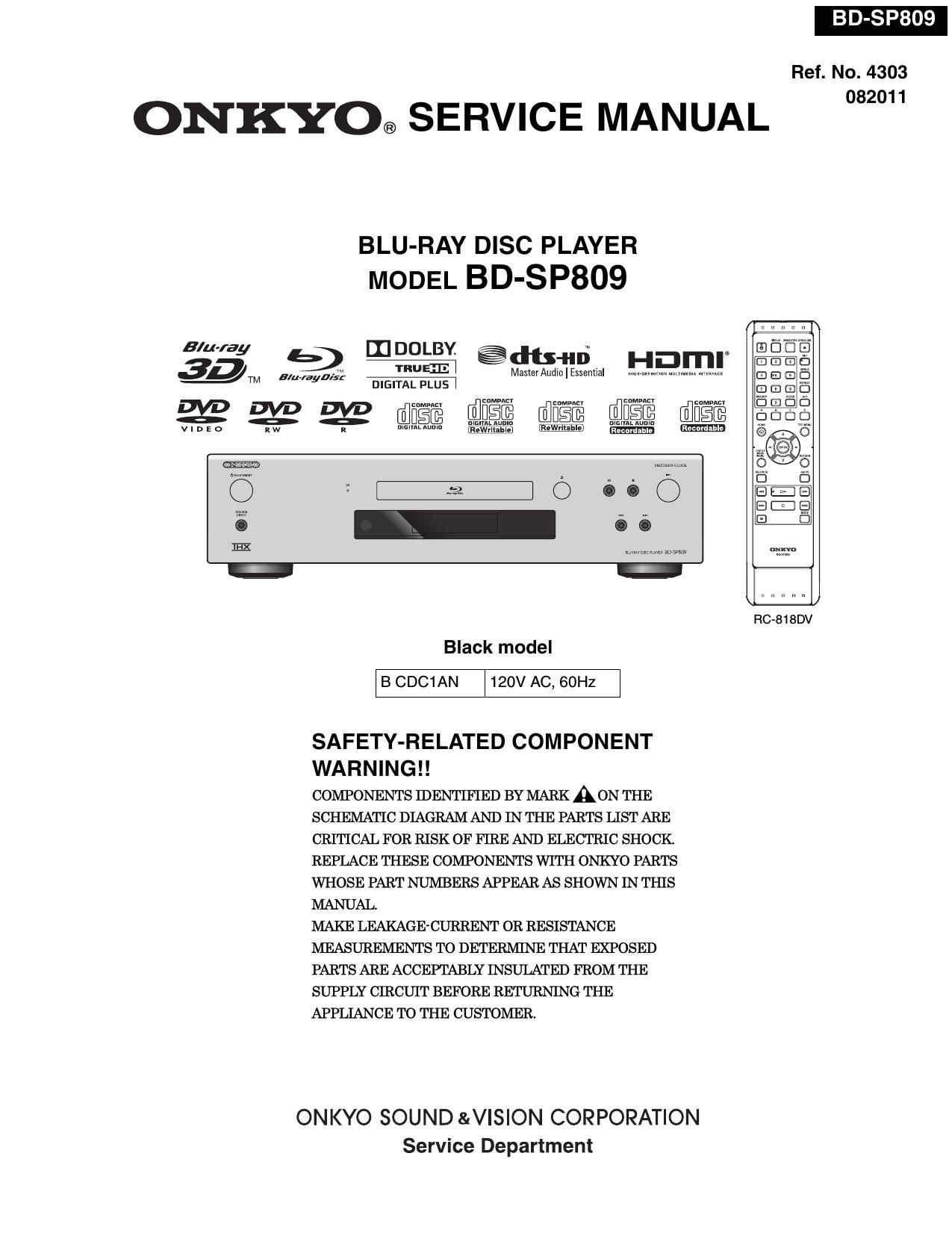

Onkyo BDSP 809 Service Manual

Page 1

BD-SP809

Ref. No. 4303
08201 1

ONKYO® SERVICE MANUAL

BLU-RAY DISC PLAYER
MODEL BD-SP809

may 9 mfiDOLBYo @dmns

3-D/TM B/u-[ayflifz TRUE MastevAudm|Essenhal
WI

vmso

Black model

B CDC1 AN 120V AC, 60Hz

SAFETY-RELATED COMPONENT

WA R N I N G ! !

COMPONENTS IDENTIFIED BY MARK AON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK
REPLACE THESE COMPONENTS WITH ON'KYO PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL.

MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT MOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

ONKYO SOUND &V|S|ON CORPORATION
Service Department

Page 2

TABLE OF CONTENTS

Specifications .......................................................................... 1-1-1
Laser Beam Safety Precautions ............................................................ 1-2-1
Important Safety Precautions .............................................................. 1-3-1
Standard Notes for Servicing .............................................................. 1-4-1
Cabinet Disassembly Instructions ........................................................... 1-5-1
How to Initialize the BLU-FtAY Disc Player .................................................... 1-6-1
Firmware Renewal Mode ................................................................. 1-7-1
Adjustment Instructions for ED Main CBA or BD Mechanism Assembly Replacement .................. 1-8-1
Error Message ......................................................................... 1-9-1
Home Network (DLNA) Error Code ......................................................... 1-10-1
Block Diagrams ........................................................................ 1-11-1
Schematic Diagrams / CBA and Test Points .................................................. 1-12-1
Exploded Views ........................................................................ 1-13-1
Mechanical Parts List ................................................................... 1-14-1
Electrical Parts List ..................................................................... 1-15-1

Precautions on 3D video images
This unit supports BIu-ray BD. When servicing problems related to 3D image output, the following
equipments are needed.

- 3D capable TV

- 3D compatible HDMI cable

- 3D glasses

- BIu-ray SD disc

Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Page 16

HOW TO INITIALIZE THE BLU-RAY DISC PLAYER

To put the program back at the factory-default,
initialize the 30 player as the following procedure.

Note:

- By initializing, network is reset to disconnected state
and Network Service Disclaimer appears on the
screen.

Turn the power on.
2. Remove the disc on the tray and close the tray.

3. Press [pm] (skip up), [1], [2], and [3] buttons on
the remote control unit in this order.
Fig. a appears on the screen. All VFD lights.

difler depending on the models.

Version Display

FNV Name : W

Version : 2.

Region : '-

Pickup : *"

ESN : m...m.................,......
DHM : OK

Detault Setting

Delault Setting : STOP End : STANDBY-ON
VFD/LED Check : 0K

Fig. a
4. Press [I ] button on the remote control unit.

Fig. b appears on the screen and Fig. 0 appears
on the VFD.

"-" difler depending on the models.

Version Display

PM Name : m"

Version : 3.

Region : -"

Pickup :

ESN : ..m............................
DHM : OK

Detault Setting : SUCCESS

Delault Setting : STOP End : STANDBY-0N
VFD/LED Check : 0K

5. After initializing, the power will turn off
automatically.

1-6-1

E5WFO|NT
