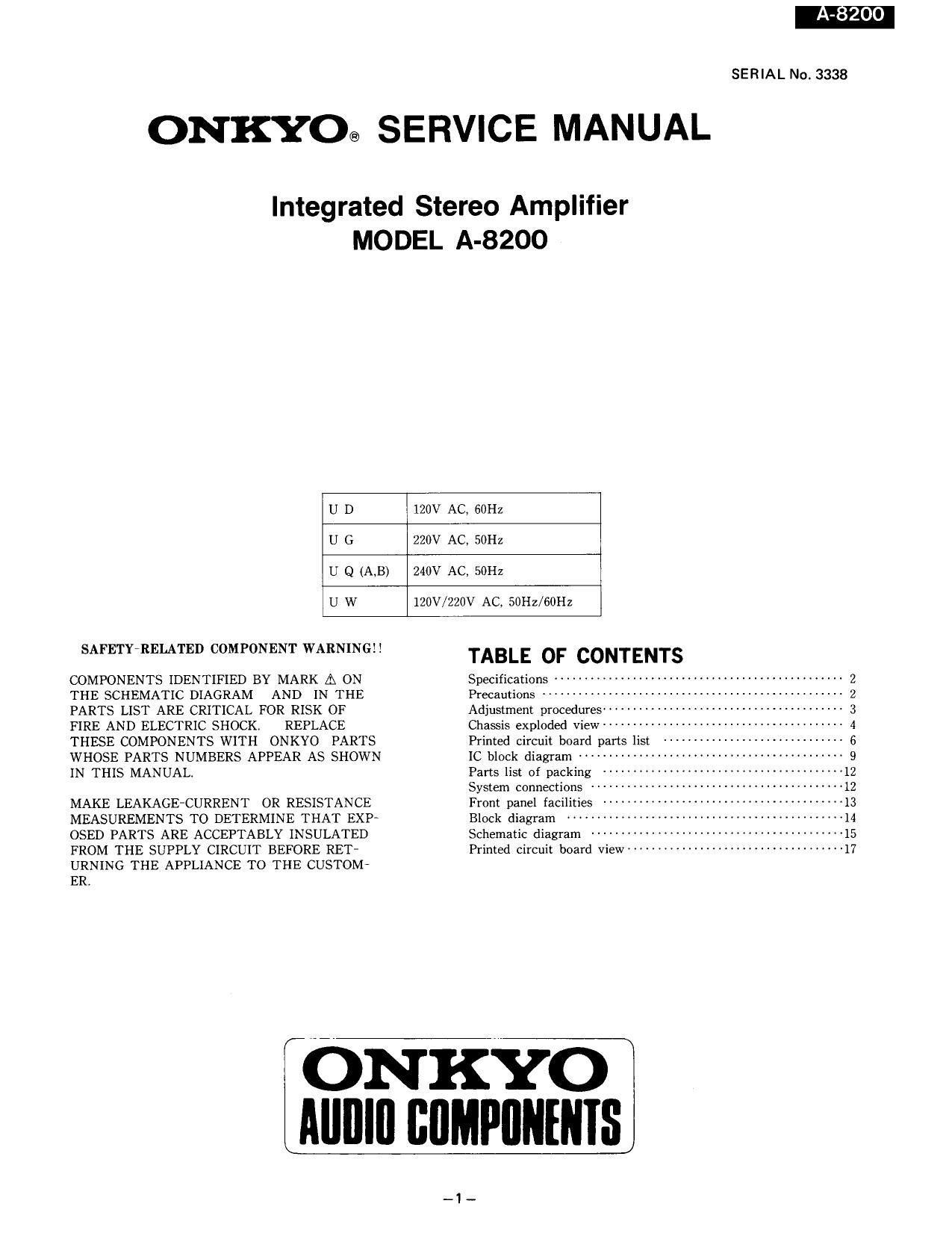

ONKYO® SERVICE MANUAL

Integrated Stereo Amplifier
MODEL A-8200

U D 120V AC, 60Hz

U G 220V AC. 50Hz

U Q (A,B) Z40V AC, 50I-Iz

U W 120V/220V AC, 50Hz/60Hz

SERIAL No. 3338

SAFETY RELATED COMPONENT WARNING! I

COMPONENTS IDENTIFIED BY MARK A ON
THE SCHEMATIC DIAGRAM AND IN THE
PARTS LIST ARE CRITICAL FOR RISK OF
FIRE AND ELECTRIC SHOCK, REPLACE
THESE COMPONENTS WITH ONKYO PARTS
WHOSE PARTS NUMBERS APPEAR AS SHOWN
IN THIS MANUAL

MAKE LEAKAGECURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXP
OSED PARTS ARE ACCEPTABLY INSULATED
FROM THE SUPPLY CIRCUIT BEFORE RET-
URNING THE APPLIANCE TO THE CUSTOMA
ERI

TABLE OF CONTENTS

Specifications ~
Precautions ---------
Adjustment procedures.
Chassis exploded View - ~ '
Printed circuit board parts list
1C block diagram ~~~~~~~~~~
Parts list of packing
System connections
Front panel facilities ~
Block diagram ~~~~
Schematic diagram ~~~~~~

Printed circuit board view ~~~~~~

l ONKYO
Mllllll BflMPIININIS

Page 2

820

SPECIFICATIONS

Power Output:

Total Harmonic Distortion
IM Distortion

Damping Factor:
Frequencey and Response:
Input Sensitivity/Impedance:

Output Sensitivity/lmpedance:

Phono Overload:

Bass Control:

Treble Control:
Selective Tone Control:

60 watts per channel. min RMS. at
8 ohms, both channels driven from
20 Hz to 20 kHz, with no more than
0.06% THD.

2 x 100 watts at 4 ohms. 1 kHz(DlN)

2 x 70 watts at 8 ohms, 1 kHz(DlN)
0.06% at rated power

0.06% at rated power

40 at 8 ohms

15~30,000 Hz :1 (18

Phone (MM): 2.5 mV/50 kohms
Phono (MC): 350 uV/220 ohms

Tuner/CD/AUX, Video: 150 mV/50 kohms

Source Direct: 150 mV/SO kohms

Tape/Play: 150 mV/50 kohms

Tape/Rec: 150 mV/3 kohms
(phone)

150 mV HMS at 1 kHz. 0.06% THD (MM) (REC)

$10 dB at 100 Hz

$10 dB at 10,000 Hz

:15 dB at 50 Hl/IB dB at 10 kHz

Signal to Noise Ratio (lHF-A): Phono (MM): 80 dB (5 mV input)
Phono (MC): 70 dB (05 mV input)

Source Direct (CD): 102 dB

General
Power Supply: USA & Canadian model:
European models
(except U,K.): AC 220V, 50Hz
UK. 8. Australian models: AC 240V, 50Hz
Worldwide models: AC 120 and 220V

switchable, 50/60Hz

AC 120V, 60Hz

Dimenswns (W) x (H) x (D): 435 x143 x 287 mm
17-1/8" x 5-5/8" x11-5/16"

Weight: 7.2 kg, 15.9 lbs.
Remote Control Transmitter HC~1435/142$
Transmitter: Infrared
Signal range: Approx) 5 meters, 16ft
Power supply: Two "AA batteries (1.5 V x 2)
Dimensions (W x H x D): 64 x 18 x 176 mm
2-1/2" x 11/16" x 6-15/16"
Weight: 130 grams. 46 oz. (including batteries)
Specifications and features are subject to change without notice.

PRECAUTIONS

.Replncing the fuses
For continued protection against risk fire, replace only with same type and same rating fuse.

CIRCUIT N0. PART NO. DESCRIPTION
F901 252050 5A STG, Primary fuse (120V,120V/220V model)
F902,FQOS 252075 or 2,5A-SE-EAK or

252075CC 2,5A-SE7EAK, Primary fuse (220V,240V,120V/220V model)

2. Insulation resistance mesurement (Only U.S.A. model)
Connect the insulatingresistance tester between the plug of power supply cable and the terminal GND on the back panel,
Specifications; More than 10 M9 at 500V.

Voltage selector (rear panel)

Worldwide models are equipped with a voltage selector to conform with local power supplies. Be sure to set this switch to
match me voltage of the power supply in your area before turning the power switch on. Voltage is changed by sliding the
groove in the switch with a screwdriver to the right or left.

Confirm that the switch has been moved all the way to the right or left before turning the power switch on, Models with-
out a voltage selector can only be used in areas where the power supply is the same as that of the unit.

Cl]: CHI

3

220 V ~ 120 V ~
at AC 120 V

220 V ~ 120 V ~
at AC 220 V

_2_
