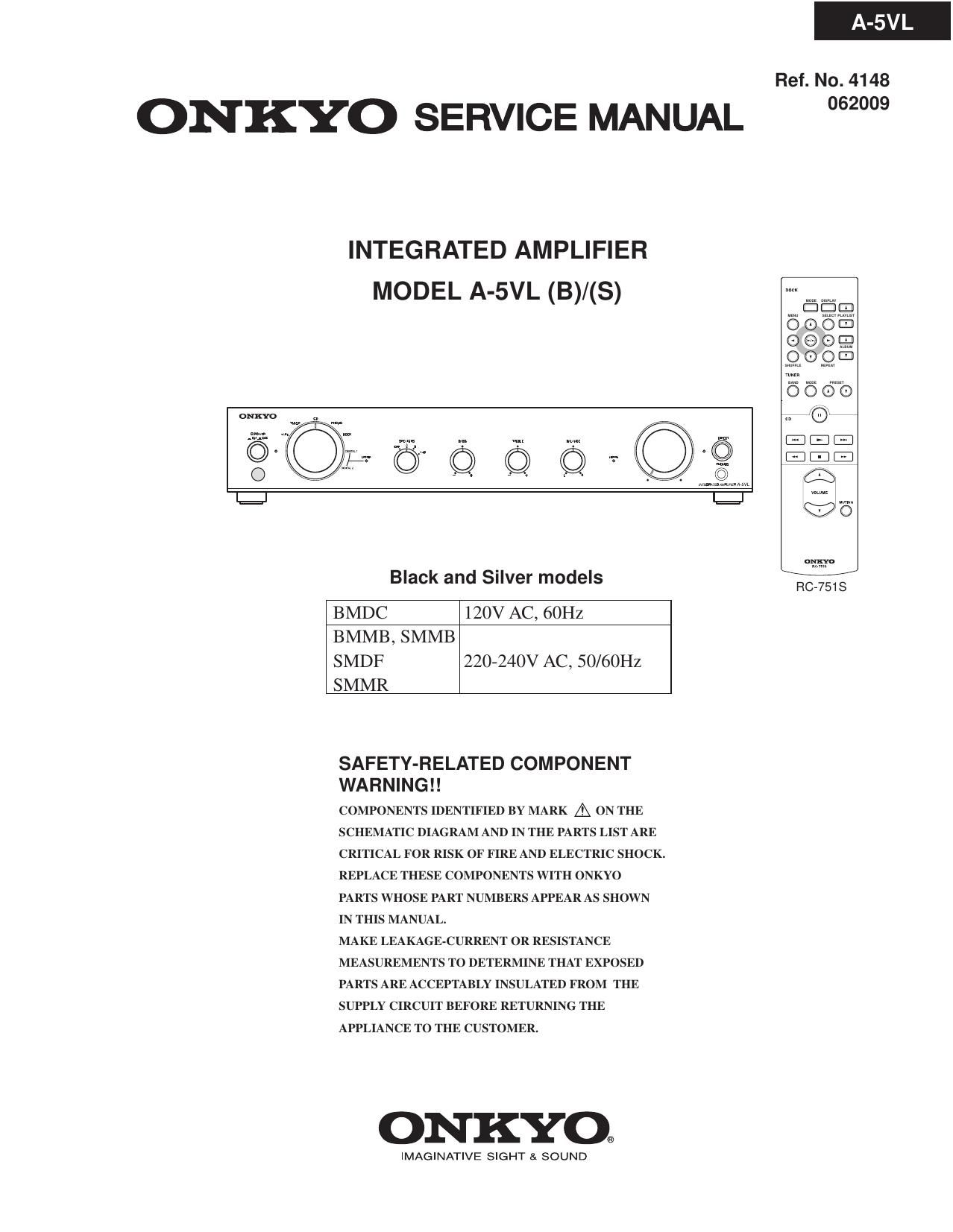

Page 1
A-5VL
Ref. No. 4148
ONKYO SERVICE MANUAL 52°
INTEGRATED AMPLIFIER
MODEL A-5VL (B)/(S) mmmmmmm
Black and Silver models RC-751S
BMDC 120V AC, 60Hz
BMMB, SMMB
SMDF 220-240V AC, 50/60Hz
SMMR
SAFETY-RELATED COMPONENT
WARNING! !
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ()NKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
ONKYO®
IMAGINATIVE SIGHT & SOUND
Page 2
SERVICE PROCEDURE
1. Replacing the fuses
3 This symbol located near the fuse indicates that the
fuse used is show operating type, For continued protection against
fire hazard, replace with same type fuse , For {use rating, refer to
the marking adjust to the symbol.
EE- Ce symbole indique que le fusible utilise est e lent.
Pour une protection permanente, n'utiliser que des fusibles de meme
type. Ce demier est indique la qu 1e present symbol est apposre.
REF.NO. PARTNAME DESCRIPTION Q'TY PARTNO.
F901 FUSE 3.15A7UL/T7233 l 252323GR
F901 FUSE 1.6AASE7EAK l 252073GR
2. Setting position before shipment.
(1) Power SW OFF
(2) Selector CD
(3) Speaker A
(4) Bass Center
(5) Treble Center
(6) Balance Center
(7) Volume Min.
(8) MM/MC MM position
(9) Tone/Direct Direct
3. Initialize setting
Turn on the unit.
Press DIRECT mode button.
REMARKS
fl\
A
