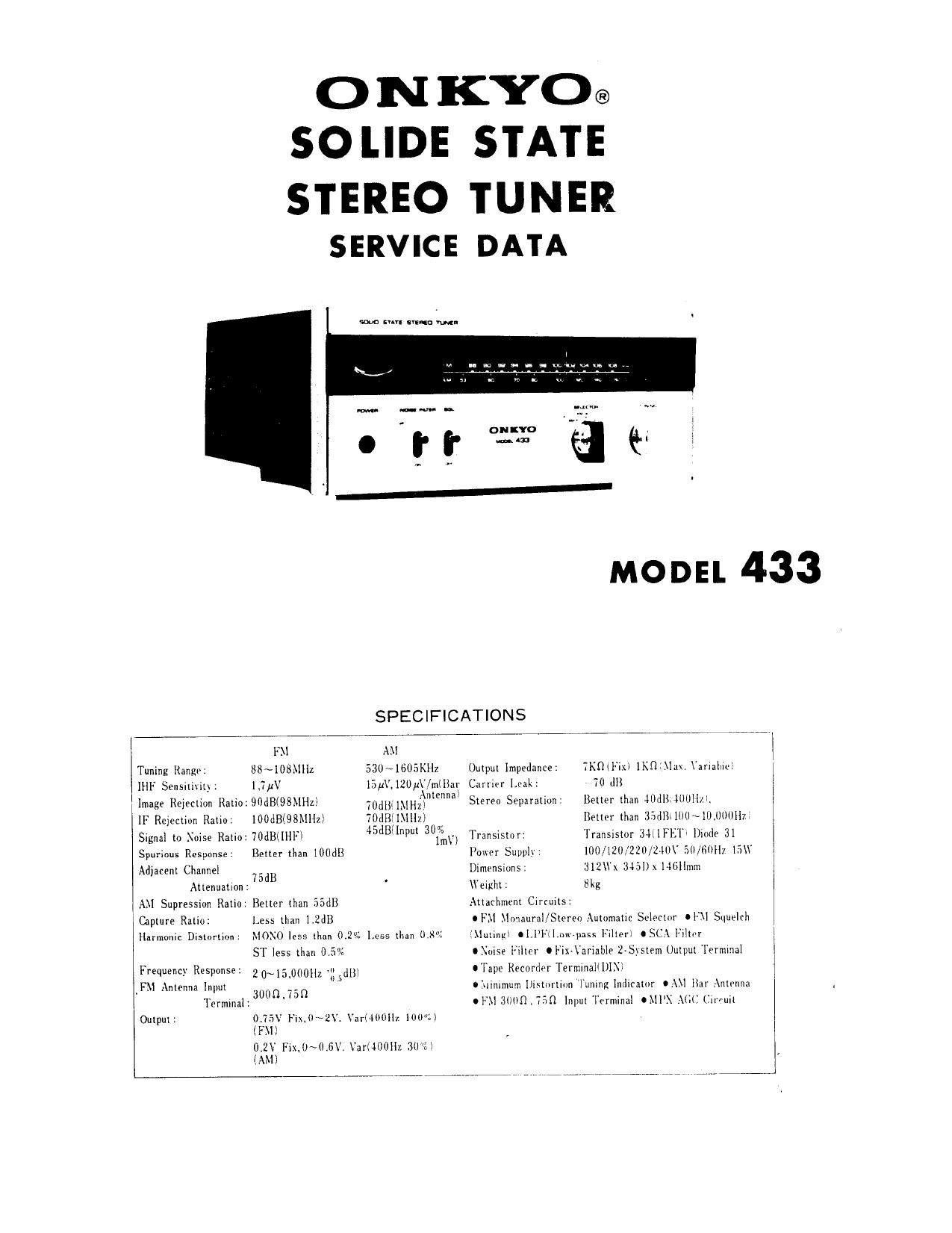

Onkyo 433 Service Manual

Extracted text from Onkyo 433 Service Manual (Ocr-read)

Page 2

COMPONENT LOCATIONS

.-

Side Decoration Right

DESCRIPTION P2315 DESCRHTION
1 Amp. Case 11 Rubber Cushion
2 Dial Drum 1 2 Knolrpower
3 Dial Pointer ass'y 13 Decoration Frame
4 Holderlilot Lamp 14 Front lannol
5 Pilot Lamp Holder Cover-Left 15 KnnlrSelector
6 Rear Cover 1 6 Kuubi'luning
7 Angle-Volume 17 'Irunspurunl llnlv
8 Tuning Indicator 18 Tuning Shaft aSSy
9 Bottom Cover 19 Dial Plate
0
