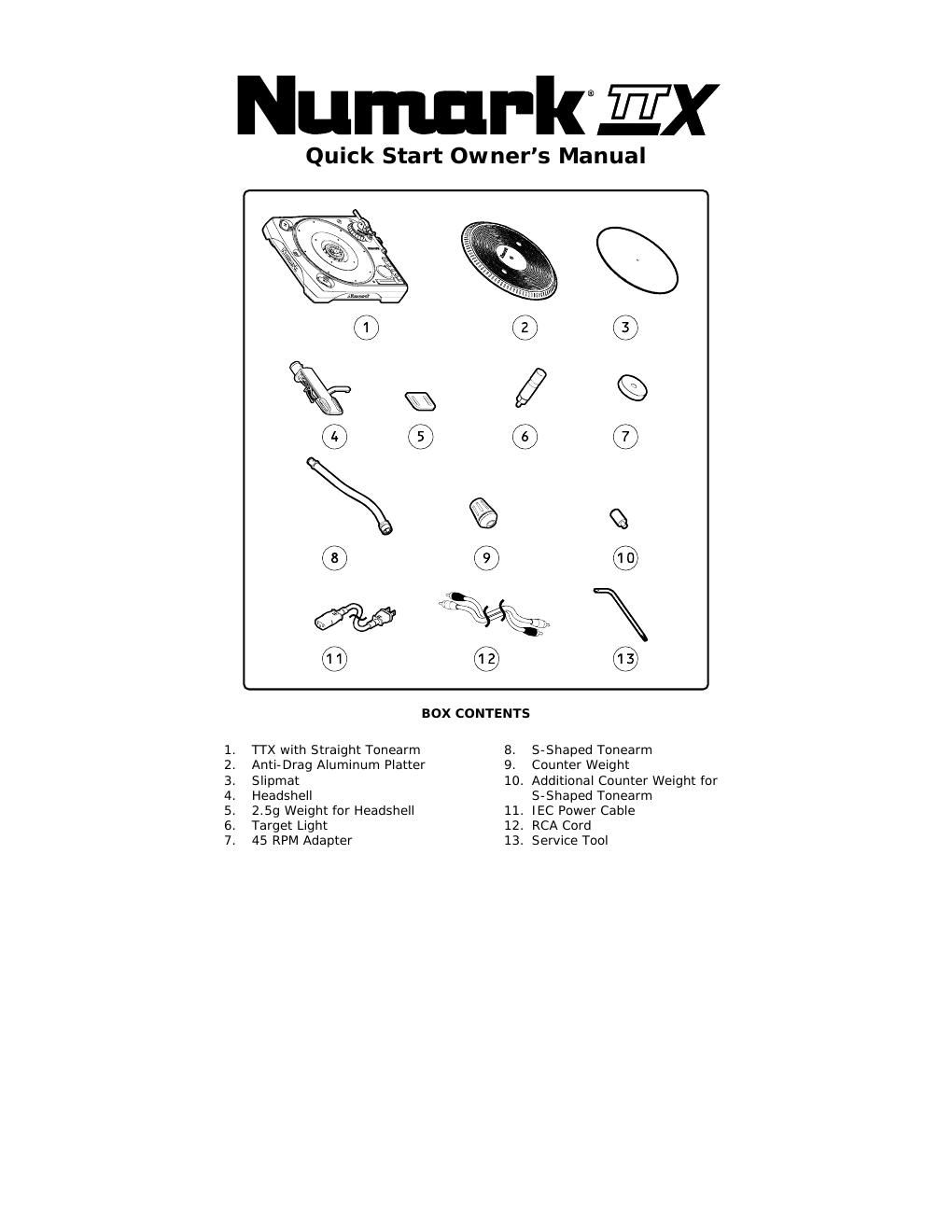

2 Quick Assembly Instructions PLEASE READ THE SAFETY INSTRUCTION BOOKLET BEFORE USING THIS PRODUCT 1. Notice the locking pins shown. BE SURE THAT TURNTABLE IS NOT PLUGGED IN. 2. Match the inner motor to Figure 2. 3. Carefully place platter with holes aligned to base as shown Connections 1. Tilt turntable upright as shown. 2. Connect R-RCA (red) audio cable from mixer or amplifier. 3. Connect L-RCA (white) audio cable from mixer or amplifier. 4. Connect only the supplied power cord and ensure that power setting switch is in the correct position for your region. Note: Be sure not to pinch wiring under base.
