Numark tt 1625 en de fr es it

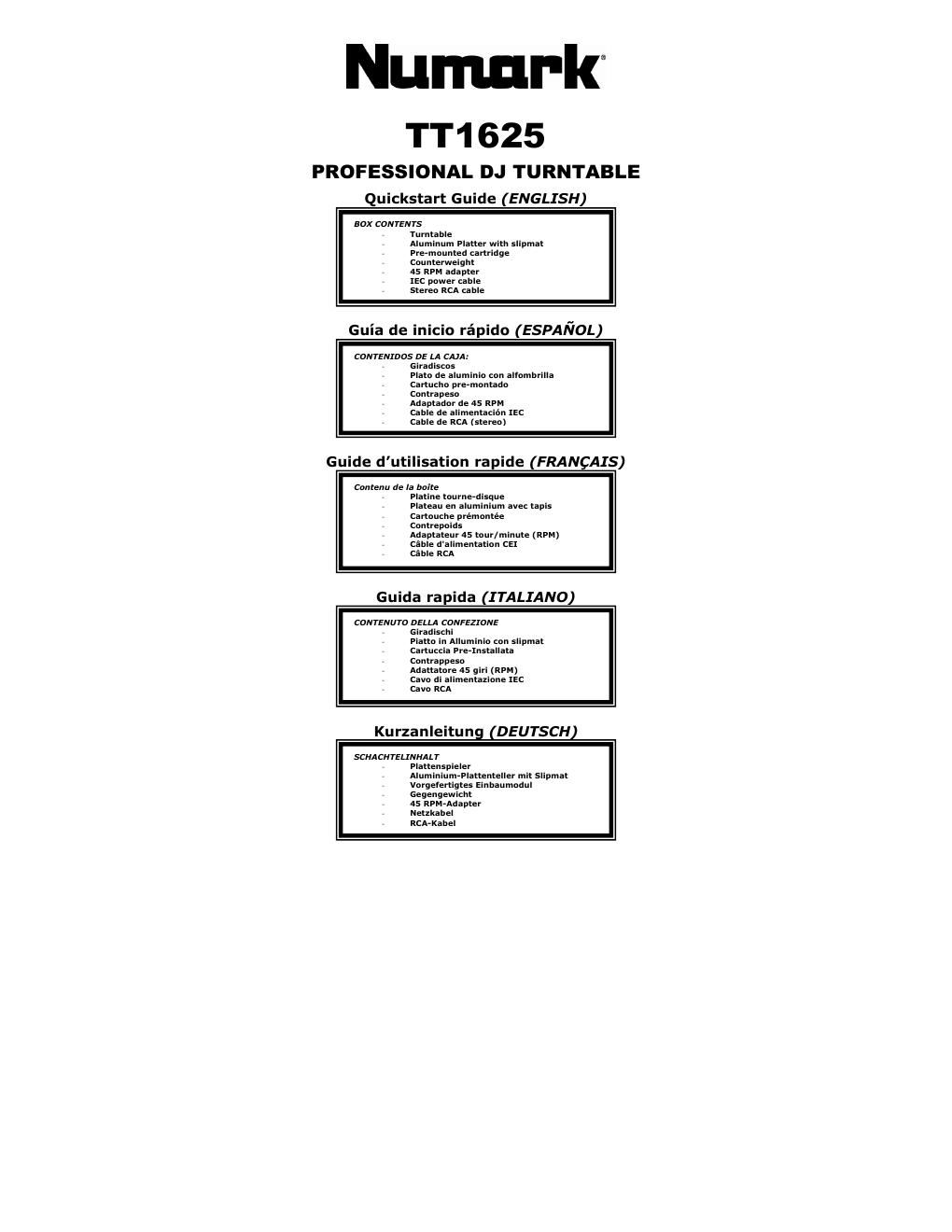

Page 1

NumuI-k
TT1 625

PROFESSIONAL DJ TURNTABLE
Quickstart Gu'de (ENGLISH)

sax CONTENTS
, 1urmable

Aluminum Platter with slipmat
Pre-maunted canridge
caumerweigm
45 RPM adapter
[EC power cable
Stereo RCA cable

Guia de iniC o répido (EspAlllOL)

CDNTENIDDS DE LA CAM.-
Giradiscos
Plato de aluminia con alfomhrilla
Cartucho pre-momadn
comrapeso
Adaptadar de 45 RPM
Cable de alimentacién IEC
Cable de RCA (stereo)

Guide dutillsation rapide (FRANCAIS)

Contenu de la boils

, Platine tourne-disque
Plateau en aluminium ave: tapis
Cartonche prémantée
comrepaids
Adaptateur 45 tour/minute (RPM)
cable dalimenlation CEI
cable RCA

Guida rapida (ITALIANO)

CDNTENUTD DELLA CDNFEZIONE
Giradischi
Piano in Alluminia Con slipmat
canuccia Pre-Inslzllata
Contrappeso
Adanamre 45 gm RPM)
Cave a: alimemazlone IEC
cavo RCA

Kurzanleltung (DEUTSCH!

SCHACHTELXNHAL r
, Plattenspieler
Aluminlum-Plznenteller mil Slipmat

Vargefe es Einhaumodul
Gegengewlcht

45 RPM-Adapter

nenkabel

RCA«KaheI

Page 2

(ENGLISH) QUICKSTART GUIDE

Make sure all items listed on the front of this guide are included in the box.
READ SAFETY INSTRUCTION BOOKLET BEFORE USING THE PRODUCT
Go to http://wwwnumarkcom for product registration.

GENERAL coNTRols

1.

2.

5".

Power cable: This power table should be plugged into a wall receptacle AFTER all audio connections are
made.

RCA Audio output cable t hese cables are used to connect the turntable to a Dl mixer or amplifier that
has a built in PHONO PREAMP. This RCA type input is a feature that is commonly found on most DJ mixers
and will be labeled PHONO OrTURNTAELE. If the RCA Audio output cables are not connected to a mixer or
amplifier with a PHONO RREAMR, then the audio output will be very quiet.

Ground wlre: This ground wire must be connected to a metal bolt or ground lug that is on the mixer or
amplifier that the turntable is connected to. lfthe ground wire is not securely fastened to a metal bolt or
ground lug, then the audio output will exhibit a buzzing" sound.

Power Button: Turn on and turn off the machine with this button.

Platter: This aluminum platter must be securely fastened to the turntable prior to operation. See SETUP
INSTRUCTIONS for detailed information on installing the platter.

start/stop Buttons: These buttons start and stop the turntable motor. both buttons have the same
function. lfthey seem to not be functioning, check to make sure that the platter is properly installed in the
SETUP lNSTRucrlons.

33 and 45 RPM Buttons: These buttons control the RPM of the turntable platter. A red LED indicates which
RPM mode has been selected.

NOTE: If the turntable is powered down while in the 45 RPM setting, it will return to 33 RPM when it is
powered up.

Pltch LED: This LED illuminates green when the pitch slider is set at 0%. when the pitch slider is moved
away from zero, the LED illuminates red.

Pltch slider: This slide control allows the pitch to be increased or decreased by 10%. In the center position
the pitch is at 0%. when moved away from the center and towards the tone arm decreases the pitch lslows
down the platter) and moving the pitch slider away from the tone arm increase the pitch (speeds up the
platter.)

TUNEARM: Items 10 - 13 are all parts of the Tanearm. Refer to the TONEARM SFl'UP sectlon for additional details on
these controls. your model will be equipped with straight arm or s-arm style depending upon model purchased.

10,

11.

12.

13.

Counter Weight and Scale lung: The caunterwelght is used to balance the head shell and cartridge
assembly so that the proper amount of stylus pressure is applied to the record.

Anti-Skate Adjustment: Thls knob ls used to compensate for inward tracklng forces. See TONEARM SETUP
for more details.

Arm clip: This specially designed arm clip secures the tone arm while at rest or when not in use. The arm
clip has been designed to remain in the up position while unlocked.

NDTE: when transporting the turntable, it is always recommended that the headshell be removed and the
arm Clip secured to prevent tonearm or turntable damage.

cartrldge and Headsheli: The cartridge is ple-mounted on a standard headshell The cartridge is user
replaceable and compatible with a variety of standard cartridges Be sure to remove the clear plastic cover
from the cartridge before operating the turntable
