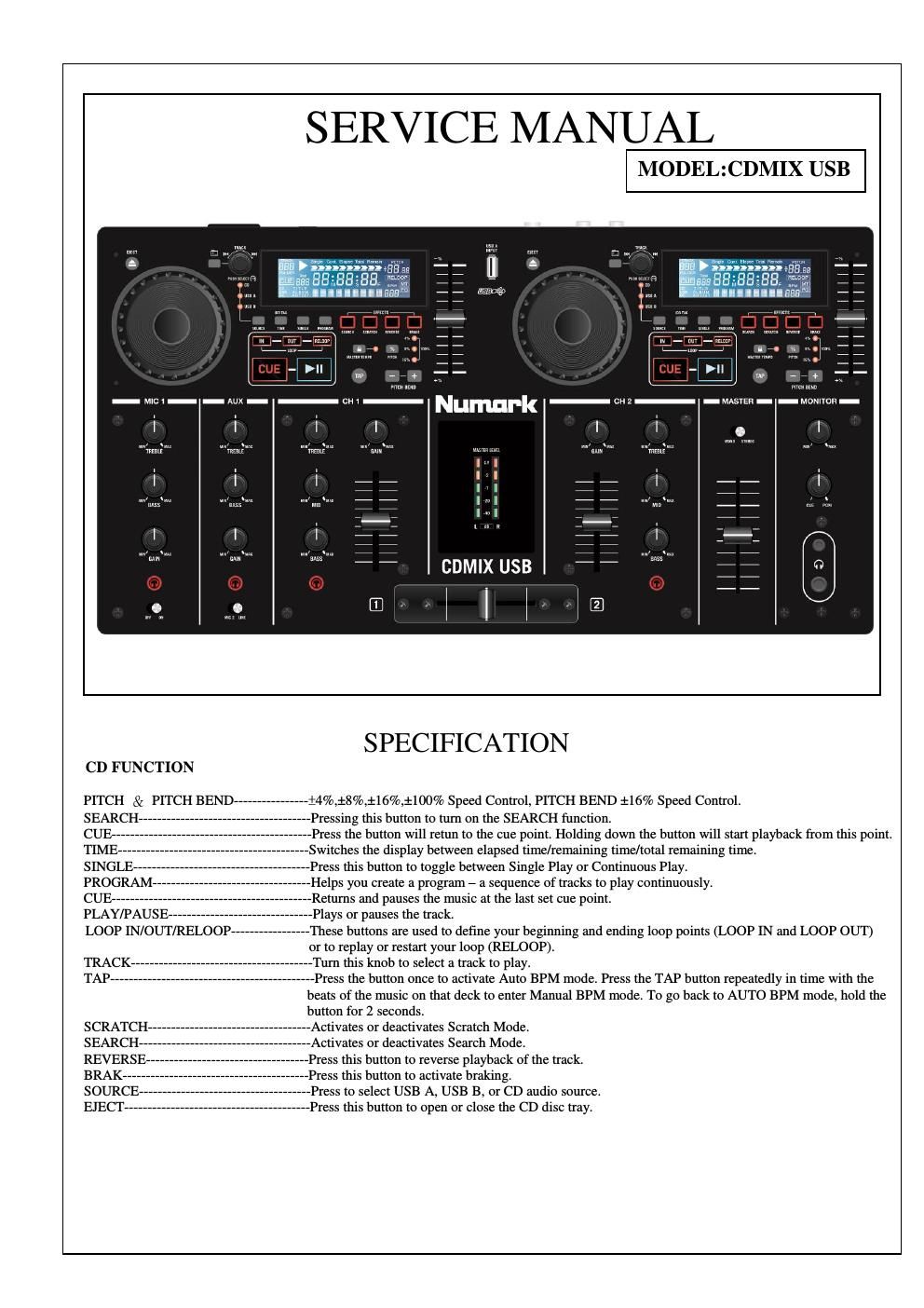

SERVICE MANUAL
MODEL:CDMIX USB
mm .m
- ca 2 - - MASYER - - MONITOR -
CDMIX USB
SPECIFICATION
CD FUNCTION
PITCH & PITCH BEND ---------------- i4%,i8%,:l6%,1100% Speed Control, PITCH BEND 116% Speed Control
-Pressing this button to turn on the SEARCH functioni
-Press the button will retun to the cue pointi Holding down the button will start playback from this point.
-Switches the display between elapsed time/remaining time/total remaining time.
ress this button to toggle between Single Play or Continuous Play
-Helps you create a program A a sequence of tracks to play continuously.
-Retums and pauses the music at the last set cue pointi
lays or pauses the track.
LOOP IN/OUT/RELOOP- -These buttons are used to define your beginning and ending loop points (LOOP IN and LOOP OUT)
or to replay or restart your loop (RELOOP).
TRACK --------------------------------------- Turn this knob to select a track to play.
TAP -------------------------------------------- Press the button once to activate Auto BPM model Press the TAP button repeatedly in time with the
beats of the music on that deck to enter Manual BPM mode. To go back to AUTO BPM mode, hold the
button for 2 seconds
-Activates or deactivates Scratch Model
ctivates or deactivates Search Model
-Press this button to reverse playback of the track
-Press this button to activate braking.
ress to select USB A, USB B, or CD audio source
- ress this button to open or close the CD disc tray.
MIXER FUNCTION
LINPUT - RCA (LINE/PHONO Unbalance) x 2 pair
1/4" TRS JACK (MIC) x 1 pair
2TOUTPUT - RCA (MASTER/MASTERI) x 2 pair
1/4" TRS JACK (MASTER Balance) x 1 pair
1/ " TRS JACK (PHONE) x 1 pair
1/8" JACK (PHONE) x 1 pair
3TGAIN,LINE FADER,MASTER CONTROL VOLUME
4TCROSS FADER --------------- CONTROL CH1 OR CH3 OUTPUT
STCUE,CUE GAIN,CUE MIX- SELECT CUE FORM CH1 i2i3,CUE VOLUME,CONTROL CUE OR MASTER
6TTREBLE,MID,BASS ------ --CONTROL EQ +12~ -28Db
7T7 segment meter LEDs for each channel and separate 2x7 segment for master
STANDARD
OUTPUT LEVEL - 704.05 Vrms (lKHz OdB)
S/N RATIO - MORE THAN 70dB
FREQUENCY RESPONSE 20Hz~20KHziZ dB
CHANNEL BALANCE--- -+2dB
LESS THAN 009%
