Nec AUP 6300 E Service Manual

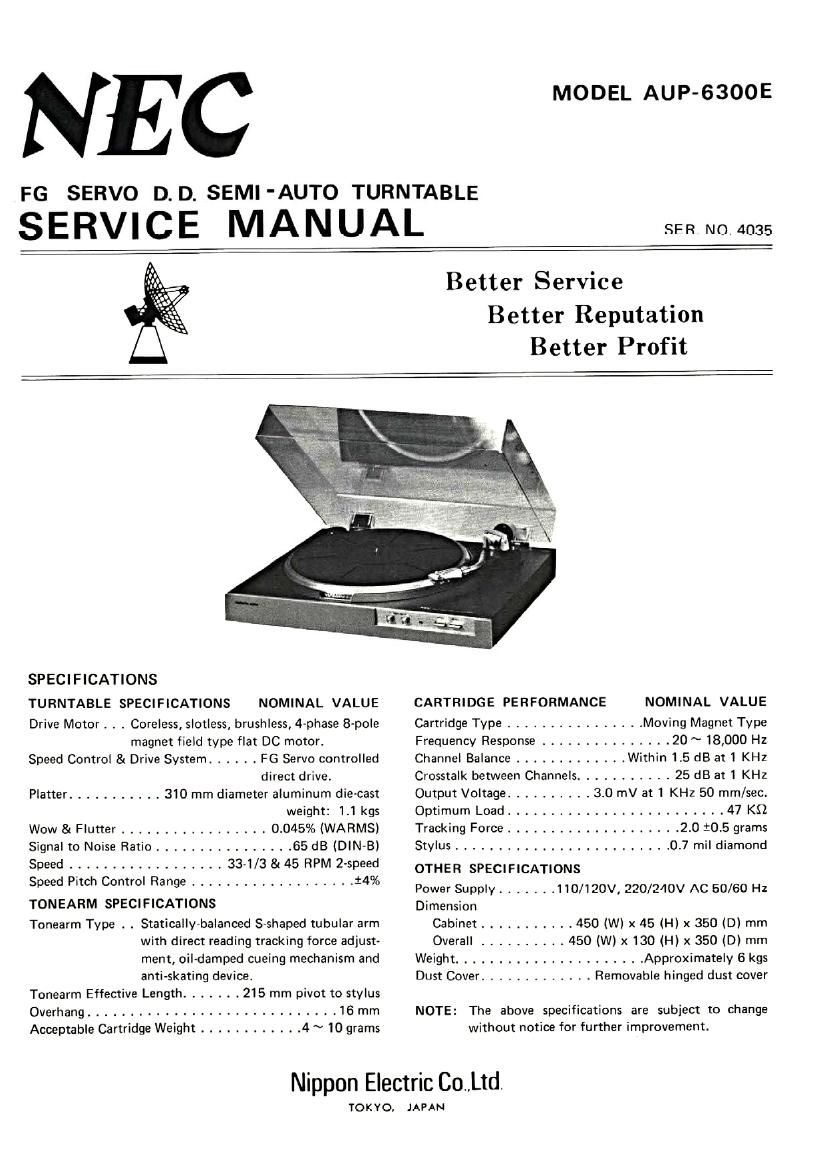

Page 1

MODEL AUP-63OOE

FG SERVO D. D. SEMI-AUTO TURNTABLE

SERVICE MANUAL

SER. NO. 4035

Better Service
Better Reputation
Better Profit

SPECIFICATIONS

TURNTABLE SPECIFICATIONS NOMINAL VALUE

Drive Motor . . . Coreless, slotless, brushless, 4»phase B-pole

magnet field type flat DC motor.
Speed Control & Drive System ...... FG Servo controlled
direct drive.

Platter ........... 310 mm diameter aluminum die-cast
weight: 1.1kgs

Wow & Flutter ................. 0.045% (WARMS)

Signal to Noise Ratio ................ 65 dB (DIN-B)

Speed .................. 33-1/3 81 45 RPM 2-speed

SpeedPitchControlRange..................ei4%

TONEARM SPECIFICATIONS

Statically-balanced S-shaped tubuIar arm
with direct reading tracking force adjust-
ment, oil-damped cueing mechanism and
anti-skating device.

Tonearm Type . .

Tonearm Effective Length ....... 215 mm pivot to stylus
Overhang ............................. 16 mm
Acceptable Cartridge Weight ............ 4 ~ 10 grams

CARTRIDGE PERFORMANCE NOMINAL VALUE

Cartridge Type ................ Moving Magnet Type
Frequency Response ............... 20 ~ 18,000 Hz
Channel Balance ............. Within 1.5 dB at 1 KHz
Crosstalk between Channels ........... 25 dB at 1 KHz
Output Voltage .......... 3.0 mV at l KHZ 50 rum/sec.
Optimum Load ......................... 47 K9
Tracking Force .................... 2.0 10.5 grams
Stylus ......................... 0.7 mil diamond
OTHER SPECIFICATIONS
Power Supply ....... 110/120V, 220/240V AC 50/60 Hz
Dimension

Cabinet ........... 450 (W) x 45 (H) x 350 (D) mm

Overall .......... 450 (W) x 130 (H) x 350 (D) mm
Weight ...................... Approximately 6 kgs
Dust Cover ............. Removable hinged dust cover

NOTE: The above specifications are subject to change
without notice for further improvement.

Nippon Electric Co.,Ltd_

TOKYO.

JAPAN
