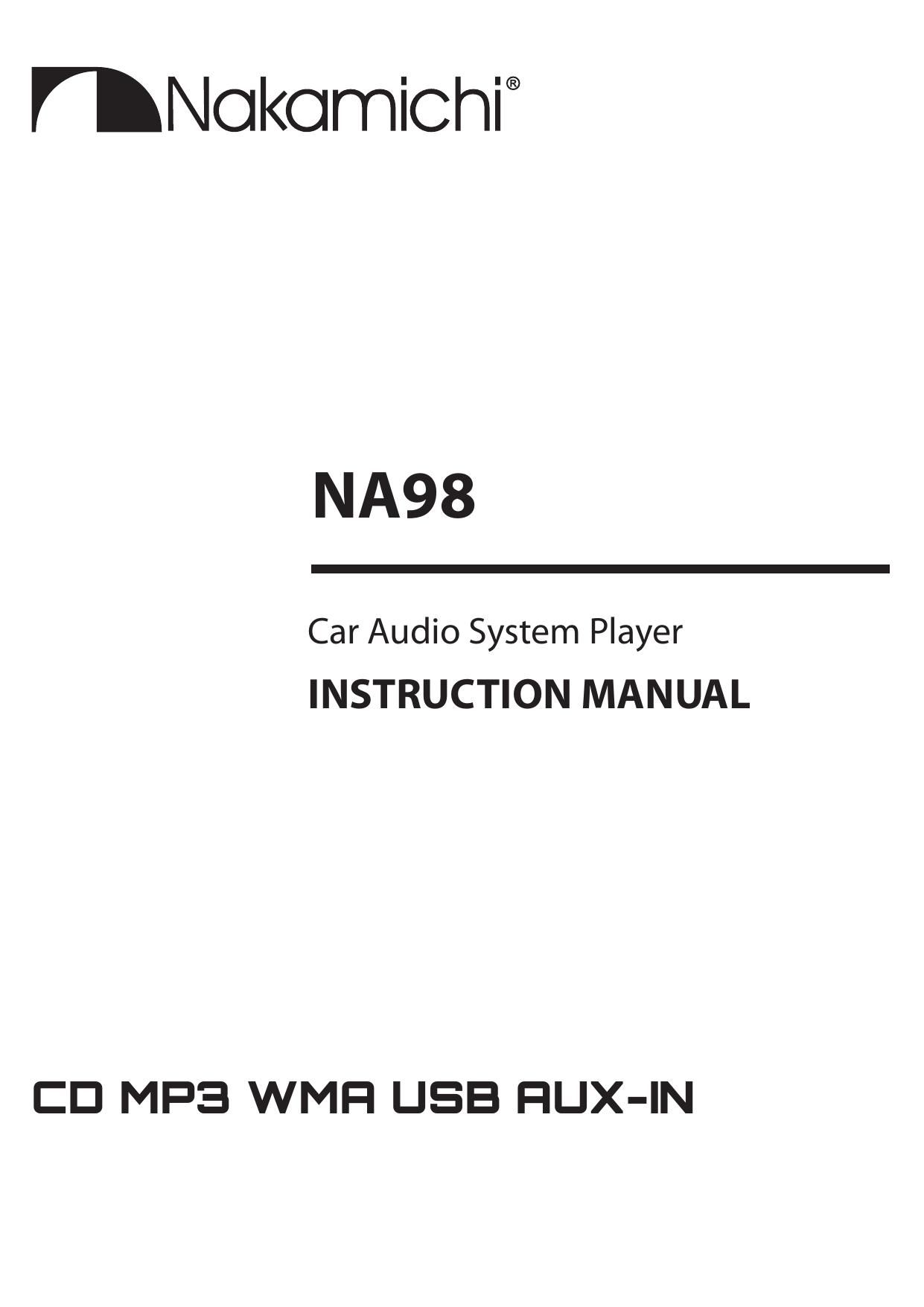

Nakamichi NA 98 Owners Manual

Page 1

To prevent a short circuit, never put or leave any metallic objects (such as coins or metal tools) inside the unit. Cleaning the unit: Wipe off the dirt on the panel with a dry silicon or soft cloth. Failure to observe this precaution may result in damage to the monitor or unit. Cleaning the connector: Wipe off dirt on the connector of the unit and faceplate. Use a cotton swab or cloth. WARNING How to reset your unit Important to know... Maintenance Caution : Adjust the volume so that youcan hear sounds outside the car .Driving with the volume too high may cause an accident . Condensation: When the car is air-conditioned, moisture may collect on the laser lens. This may cause disc read errors. In this case, remove the disc and wait for the moisture to evaporate. The illustrations in this manual are examples used to explain more clearly how the controls are used. Therefore, what appears on the illustrations may differ from what appears on the actual equipment. If you experience problems during installation, consult your Nakamichi dealer. When you purchase external components, check with your Nakamichi dealer to make sure that they work with your model and in your area. Stop the car before operating the unit. Safety 3 Reset 2 To prevent deterioration, do not touch the terminals of the unit and faceplate with your fingers. 1 If this unit fails to operate properly, press the reset button. The unit return to factory setting when the reset button is pressed. What s in the box 2 EN Check and identify the contents of your package: Main unit (with sleeve) Carrying case (for front panel) Disassembly tool (2pcs) Screw x 4pcs Front panel Remotecontrol User manual Trim plate ISO male connector Do not expose the faceplate to direct sunlight, excessive heat, or humidity. Also avoid places with too much dust or the possibility of water splashing. Keep the faceplate in its casing while detached. The faceplate is a precision piece of equipment and can be damaged by shocks or jolts. How to attach/detach the faceplate Preparation 1 2 1 2 Attach Detach

Page 2

Installation / Connection Basic Procedure 1Remove the key from the ignition switch, then disconnect the terminal of the car battery. 2 Make proper input and output wire connections. 3 Install the unit to your car. 4 Reconnect the terminal of the car battery. 5 Reset the unit. Warning The unit can only be installed in a car with a 12 V DC power supply, negative ground. If you connect the ignition wire (red) and the battery wire (yellow) to the car chassis (ground), you may cause a short circuit, that in turn may start a fire. Always connect those wires to the power source running through the fuse box. Disconnect the battery s negative terminal and make all electrical connections before installing the unit. Insulate unconnected wires with vinyl tape or other similar material. To prevent a short circuit, do not remove the caps on the ends of the unconnected wires or the terminals. Be sure to ground this unit to the car s chassis again after installation. If the power is not turned ON, the speaker wire may have a short circuit or touched the chassis of the vehicle and the protection function may have been activated. Therefore, the speaker wire should be checked. Caution If your car s ignition does not have an ACC position, connect the ignition wires to a power source that can be turned on and off with the ignition key. If you connect the ignition wire to a power source with a constant voltage supply, as with battery wires, the battery may die. Install this unit in the console of your vehicle. Make sure the faceplate will not hit the lid of the console (if any) when closing and opening. After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly. Mount the unit so that the mounting angle is 30
