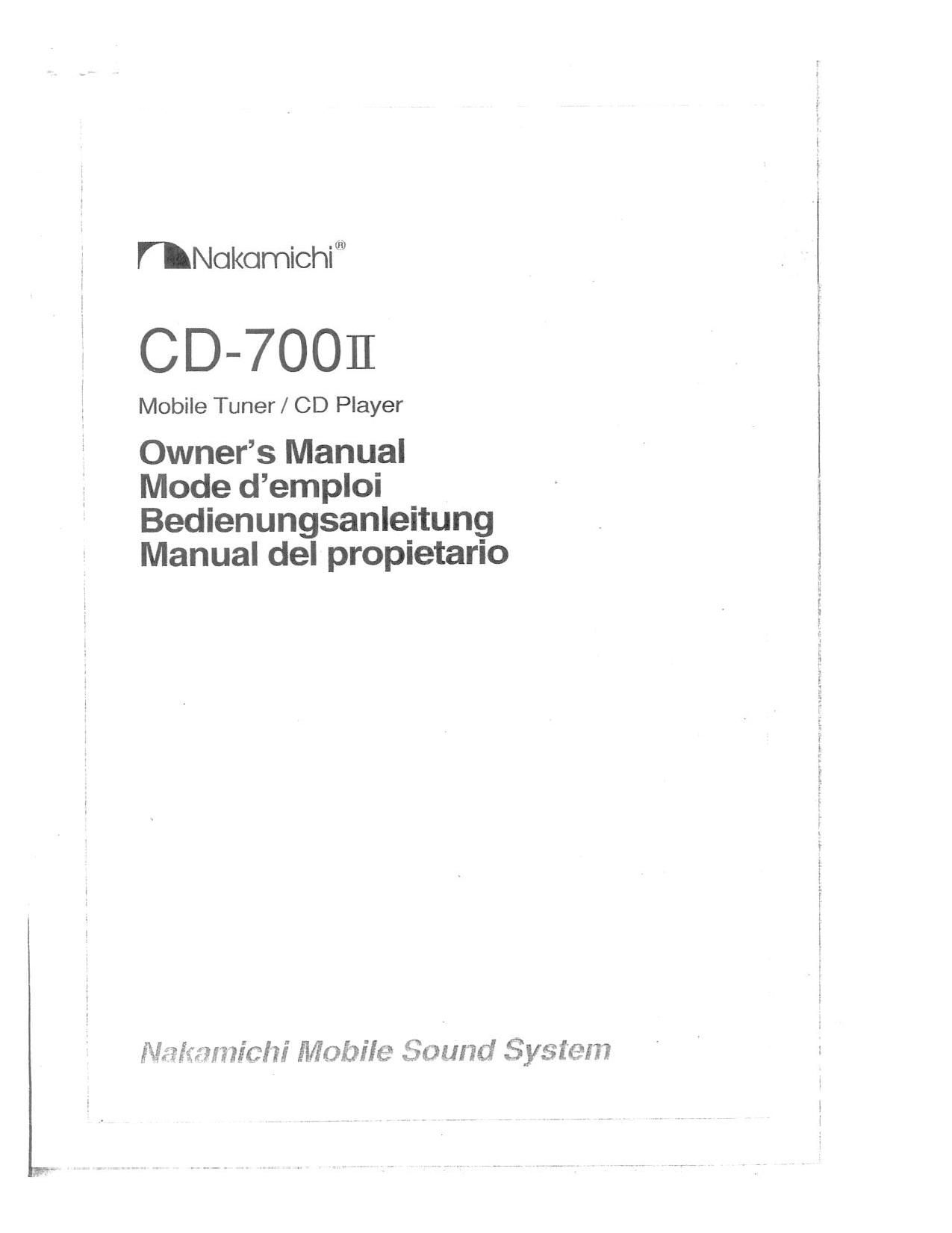

Nakamichi CD 700 II Owners Manual

Page 2

Na/rarrriclri Mobile Sound System

Before lnstalllng or using the unit. please read
this manual carefully, to ensure correct opera-
tion.

Keep the manual at hand for future reference.

WARNING
TO REDUCE THE RISK OF FIRE 0R ELEC»
. TRIC SHOCK, DO NOT EXPOSE THIS APPLI-

ANCE TO RAIN OR MOISTURE.

CAUTION

- Prolonged exposure to sound at excessive lev~
els has been proven to cause temporary and,
in some instances, permanent hearing loss. In
order to protect your hearing and your luture
enjoyment oi music. it Is strongly recommended
that you avoid exposure to excessive listening
levels.

- For reasons of traffic salety, you should keep
the listening volume to a level which will not
mask outside noises while driving.

DANGER - Invisible laser radiation when opened
and interlock failed or defeated. Avoid direct expo-
sure to beam.

CAUTION - Use of the controls or adjustments or
perlomrance of procedures other than those speci-
fied herein may result in hazardous radiation expo-
sure.

LASER DIODE PROPERnEs
MAXIMUM RADIANT POWER: 0.5 mW
WAVE LENGTH: 780 nm - 815 nm
EMISSION DURATION: CONTINUOUS

This equipment has been tested and found to com-
ply with the limits lor a Class B digital device, pursu-
ant to part 15 of the FCC Rules. These limits are

Contents
Precautions .
Installation ..
Connections ..................................
External Equipment Connections
Basic Operation Steps .................

designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates. uses and can radiate radio
frequency energy and. if not installed and used in
accordance with the instmctions. may cause harm-
ful interference to radio communications. However,
there is no guarantee that interference will not occur
in a particular installation. If this equipment does
cause harmful interlerence to radio or television re-
ception. which can be determined by turning the
equipment all and on, the user is encouraged to try
to correct the interference by one or more of the fol-
lowing measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment
and receiver.

- Connect the equipment into an outlet on a circuit
different from that to which the receiver Is con~
nected.

- Consult the dealeror an experienced radio/TV lech-
niclan for help.

WARNING - The Federal Communications Commis~
sion does not allow any modifications or changes to
the unit EXCEPT as that specified by Nakamichi in
this manual. Failure to comply with this government
regulation could void your authority to operate lire
equipment.

Complies with FDA radiation perlonnance standards.
21 CFR Subchapter J.

Please record the Serial Number in the space pro»
vided below and retain this number.

The Serial Number is baled on the top panel of the
unit.

Model Numben CD-7OOII
Serial Number:

CD Playback ............
CD Changer Control
FM/AM Reception.
Troubleshooting .
Specifications

Page 14

Nalralnichi Mobile Sound System

CD Changer Control Mammcommlsmmmmirnmn

Disc Search button

Ins-st Isa-i

EJE3

MI

(11le srnrr
SWEEH flflfl "

Ina- tu-m Hm CD-700l

CD playback

When the CD changer mode ls selected with the
CDC button. the indication 'CDC appears on the
display for about 2 seconds. and CD playback is
carried out. when changing back to CD changer
mode from another mode, CD playback continues
from the point where playback stopped previously.

CD playback pause

When the Pause button is pressed. the indication
PAUSE appears on the display and CD playback
is paused. Pressing the Pause button again re-
sumes playback.

Track search

- Tap the Track Search button (A) to locate the
start of the next track. Tap the button repeatedly
to locate later tracks.

- Tap the Track Search button (v) to locate the
start of the current track. Tap the button repeat-
edly to locate earlier tracks.

14

m
E!

Track Search button

CDC button/Pause button

Forward search/reverse search

- Keep the Track Search button (A) depressed
(for about 1 second or more) to quickly move
through the disc in the lonward direction. Release
the button to' resume playback.

- Keep the Track Search button (v) depressed
(for about 1 second or more) to quickly move
through the disc in the reverse direction. Release
the button to resume playback.

Disc search

~ Press the Disc Search button (A) to move to
the next disc. During disc search. the indication
"CHANGE appears on the display. Keep the
button depressed (tor about 1 second or more)
to jump to later discs.

- Press the Disc search button (v) to move to
the previous disc. During disc search, the indi-
cation "CHANGE' appears on the display. Keep
the button depressed (tor about 1 second or
more) to jump to earlier discs.
