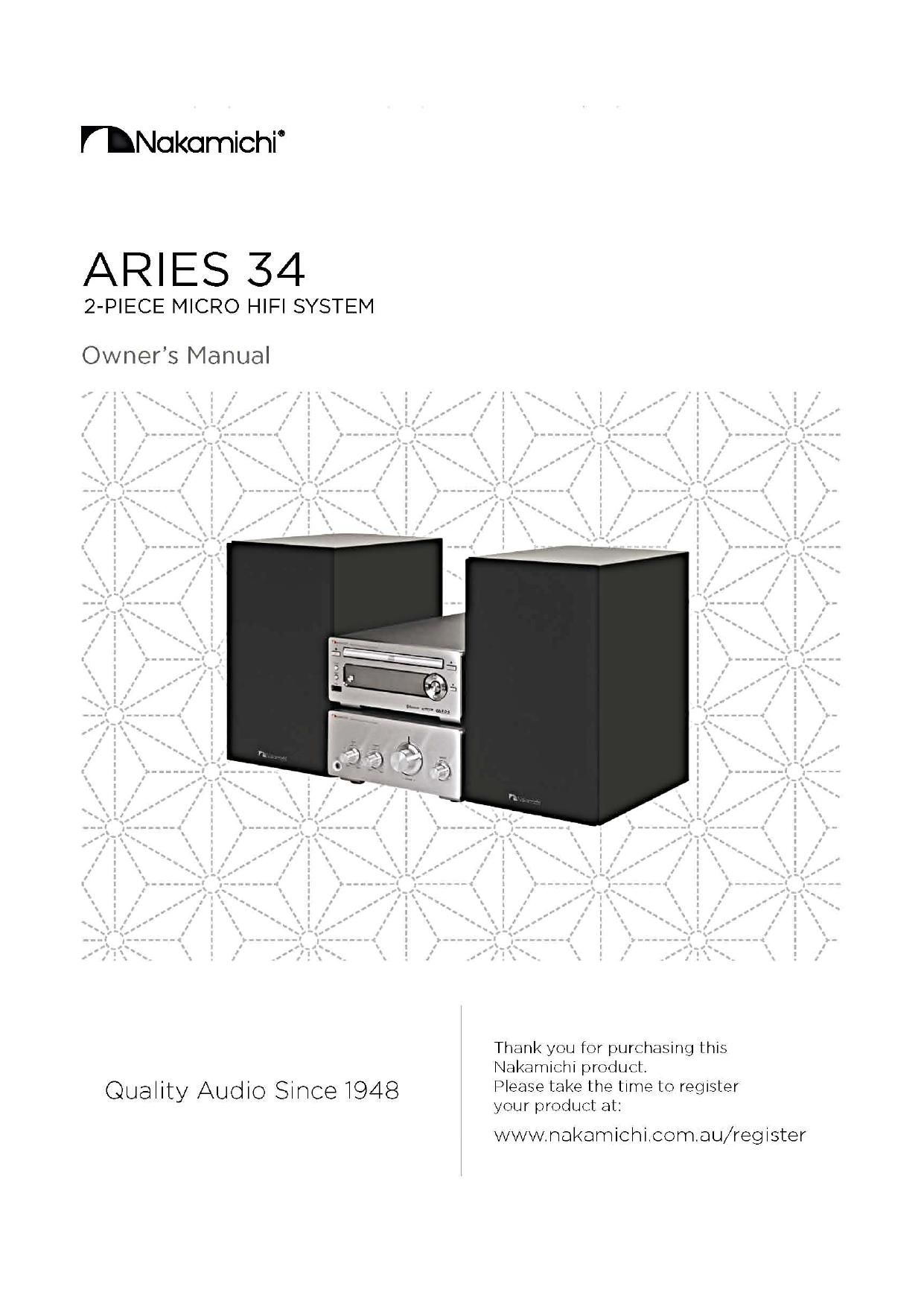

Page 1
rINCIkdmiChio
ARIES 34
2-PIECE MICRO HIFI SYSTEM
Owners Manual
Quality Audio Since 1948
Thank you for purchasing this
Nakamichi product.
Please take the time to register
your product at:
WWW.nai
Page 2
Tha/Vk you for purchasing this Nakamichi
product.
This unit has been designed and manufactured
to meet international standards but, like any
electrical equipment, care must be taken if you
are to obtain the best results and safety is to be
assured.
Please take the time to read the operating
instructions for this unit.
Page 9
Whats Included
Make sure all of the following contents are included:
Remote Control
The Unit Speakers X 2
O D
O 0
FM Antenna Control Cable
Owners Manual
Audio L/R Cable x1
Page 13
Connections
Caution: Make all connections before plugging the system into an AC power outlet
Connecting the Antenna
The Antenna Socket
The Antenna
Connect the supplied FM antenna to the FM antenna socket on the rear of the CD player by
turning the antennas screw cap clockwise.
Please Note: Do not overtighten, this could damage the antenna.
Caution: To avoid interference, keep the antenna away from the system. the connecting cord
and the AC cord.
Connecting the Speakers
Right Speaker Box 0 The Amplifier 0 Left Speaker Box
Rear View Rear View
Connect the speaker cords between the terminals as shown below.
Connect the speaker cable With the white line to the (7) terminals and speaker cable with the
red line to the (+) terminals.
11
Page 16
Connections
Connecting the AC Power Cable
Insert the AC Power cable into a wall outlet, then your unit is ready to use.
Caution: - Be sure to unplug the power plug from the outlet when going out or when the
unit is not in use for an extended period of time.
Amplifier
Wall Unit
14
