Nakamichi 500 Service Manual

Extracted text from Nakamichi 500 Service Manual (Ocr-read)

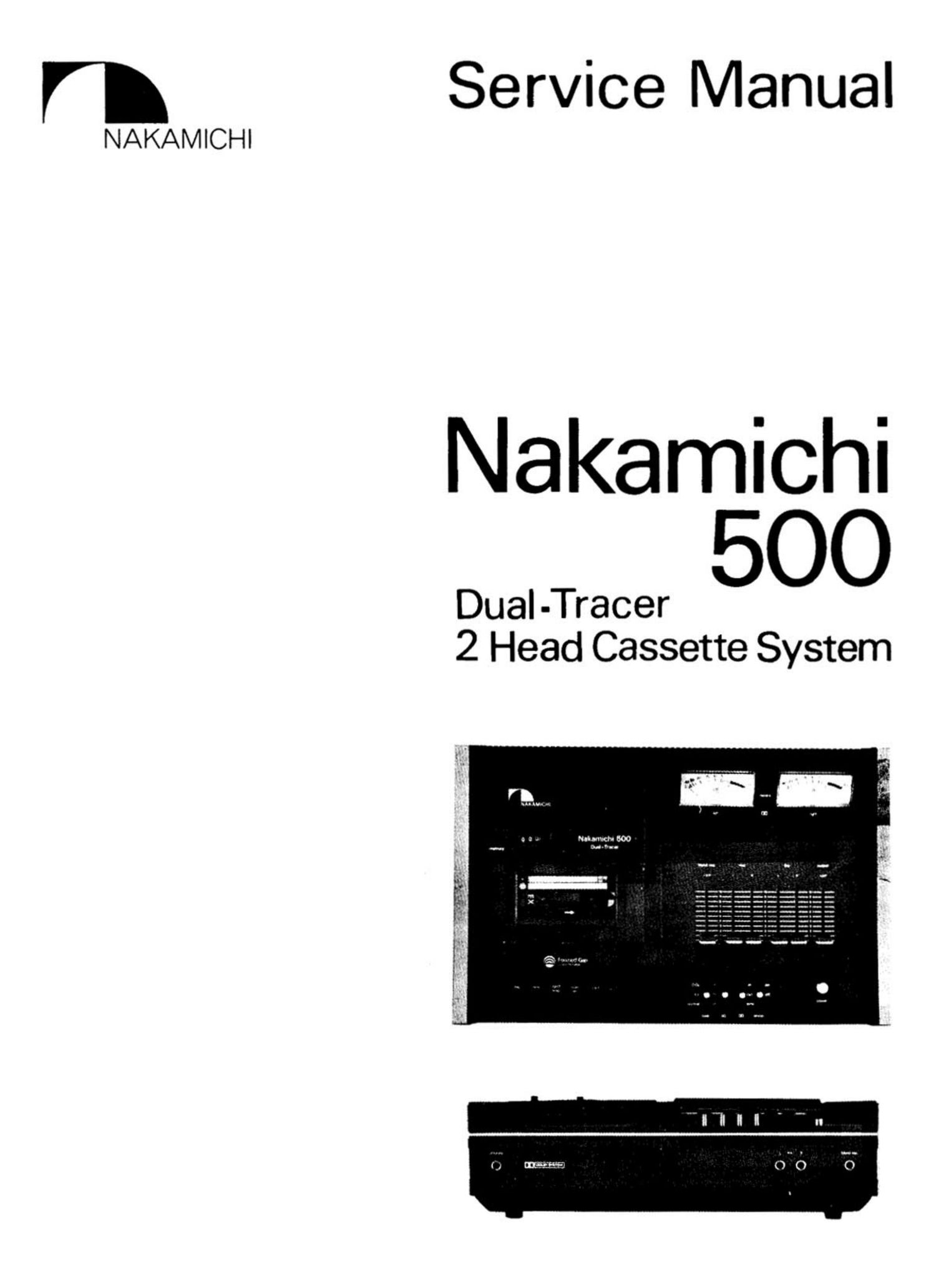

Page 1

r. Service Manual

NAKAMICHI

Nakamichi
Dual -Tracer 500

2 Head Cassette System

'iiil

Illllll

Page 2

CABINET DISASSEMBLY INSTRUCTIONS

(1)
(2)
(3)
(4)
(5)
(6)

Remove control knobs 05 from the Cabinet Top.
Remove 4 screws from the Cabinet Bottom 04 .
Remove the Cabinet Bottom 04 .

Remove 2 screws from Rear Panel.

Pull out the woodframe 02 , 03 .

Remove 6 screws from the stud of Plastic Cabi-
net 06 .

(7)
(8)

(9)

Pull out the Plastic Cabinet 06 .

All Mechanism and Electronics can be accessible
from outside.

Disassemble of individual Mechanism and Electro-
nics circuit board are shown on later pages.
