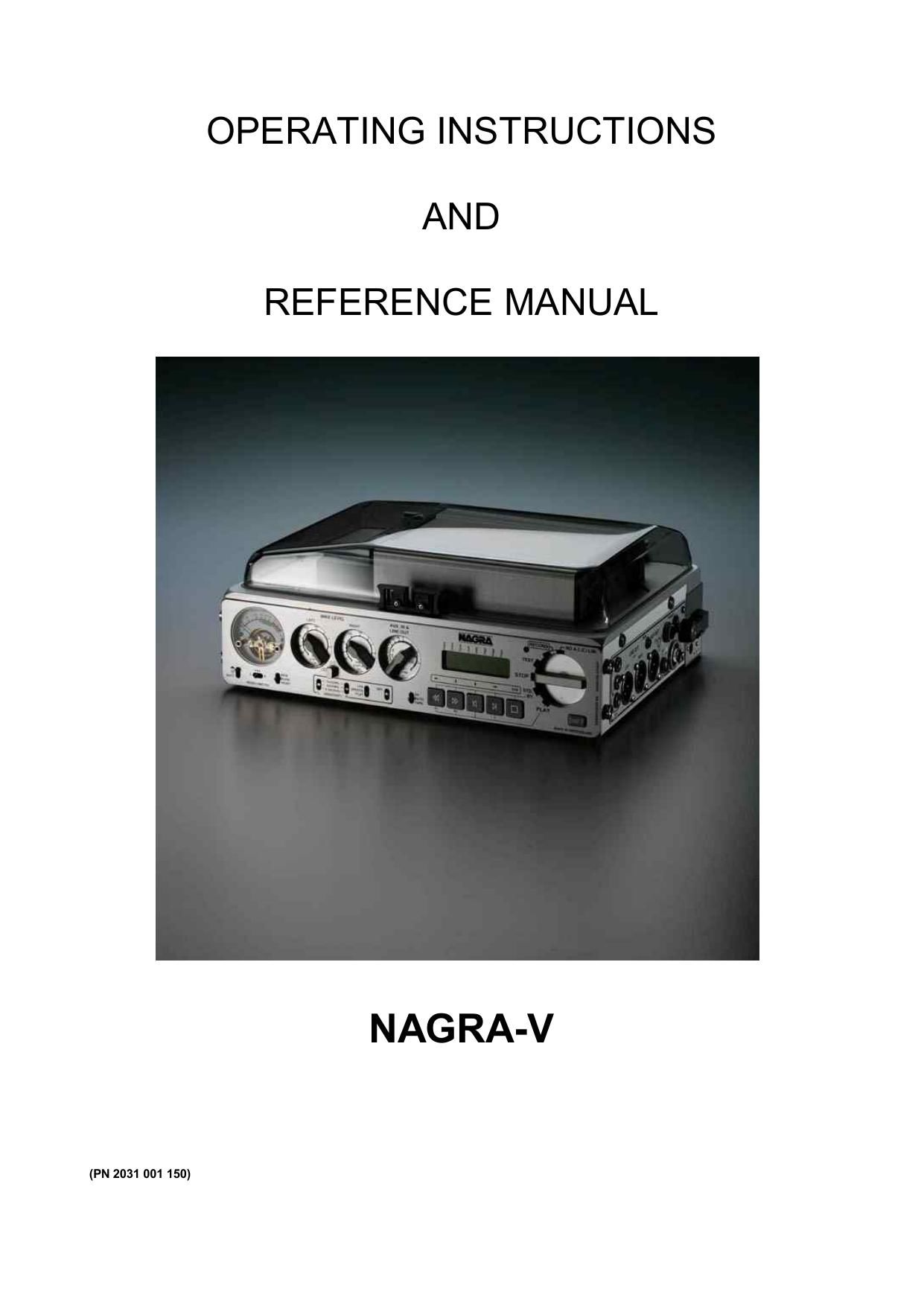

Nagra V Owners Manual

Page 1

GUARANTEE NAGRA/KUDELSKI certifies that this instrument was thoroughly inspected and tested prior to leaving our factory and is in accordance with the data given in the accompanying test sheet. We guarantee the NAGRA V products of our own manufacture against any defect arising from faulty manufacture for a period of THREE years from the date of delivery. This guarantee covers the repair of confirmed defects or, if necessary, the replacement of the faulty parts, excluding all other indemnities. All freight costs, as well as customs duty and other possible charges, is at the customer's expense. Our guarantee remains valid in the event of emergency repairs or modification being made by the user. However we reserve the right to invoice the customer for any damage caused by an unqualified person or a false manoeuvre by the operator. We decline any responsibility for any and all damages resulting, directly or indirectly, from the use of our products. Other products sold by KUDELSKI S.A. are covered by the guarantee clauses of their respective manufacturers. We decline any responsibility for damages resulting from the use of these products. We reserve the right to modify the product, and / or the specifications without notice.

Page 2

ABOUT THIS MANUAL This instruction manual is broken down into several sections. Each section covers different aspects of the machine, the settings, actual use of the machine, eventual problem localisation and technical specifications. They are divided into different chapters listed below. All words or acronyms in this manual written in Bold Italic are all relating to the menus of the NAGRA V. Chapter 1 Parts of the machine (Buttons, switches and connectors) Chapter 2 The menu mode and menu structure Chapter 3 Time code system and use Chapter 4 Operating the NAGRA V (Settings, recording, playback etc) Chapter 5 Post-production Chapter 6 Problem solving and accessory explanation Chapter 7 Technical specifications NAGRA would like to give special thanks to all those who have contributed to the elaboration of this manual. Various different organisations, companies and individuals have been very helpful in giving advice and technical information in different fields of expertise. A.E.S. Denecke Inc. Peter Weibel Audio. Merging technologies.
