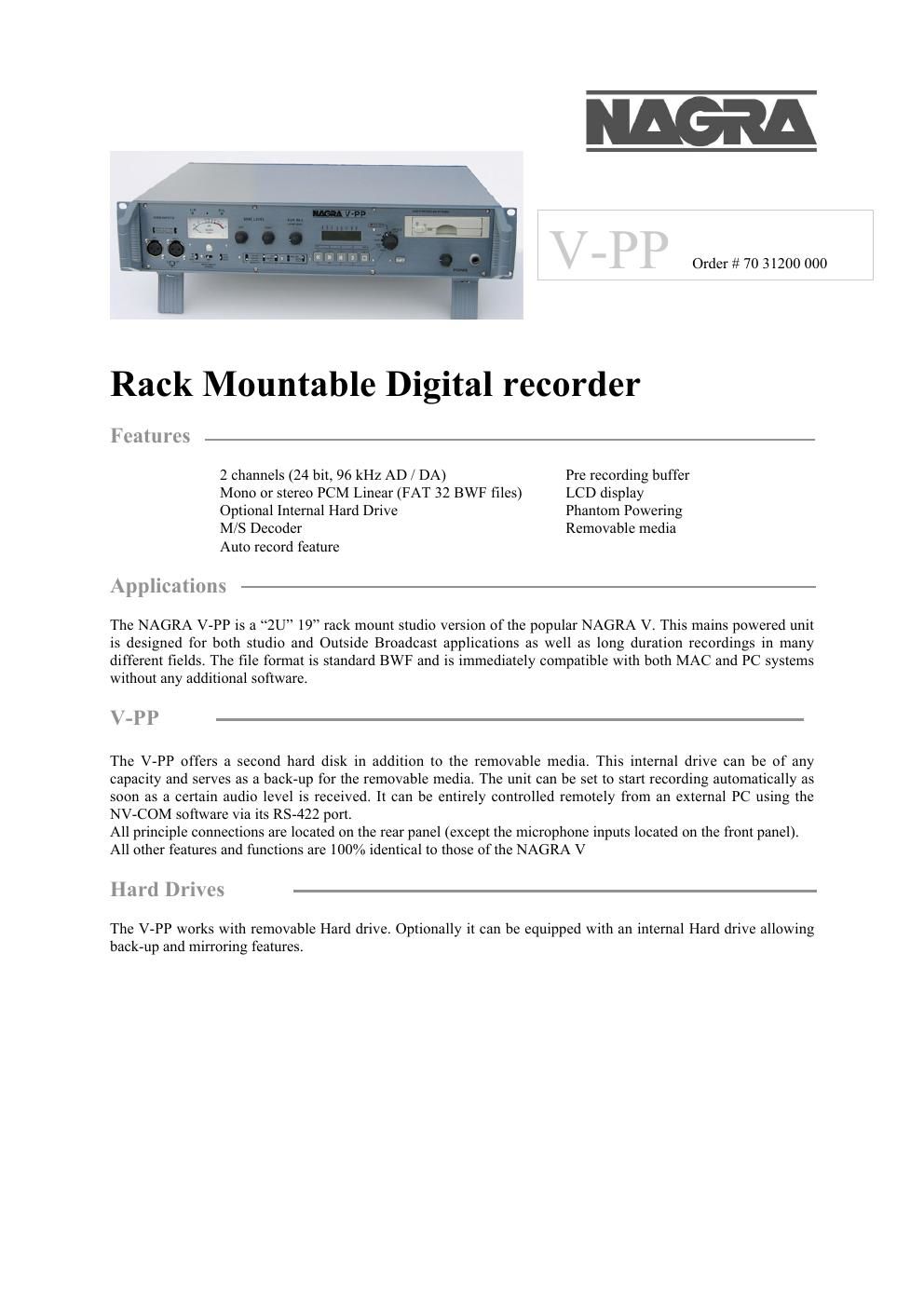

Specifications
General
Data storage medium 2.5 Hard disk, FAT 16 / 32 format
Recording format Linear PCM
A/D and D/A conversion 24 bit Sigma-Delta
Sampling rate 44.1 -“ 48 kHz (88.2 and 96 kHz Optional)
File Format BWF (Broadcast Wave Files)
Filters Low cut filter (LFA) or Speech
Inputs
Mic inputs 2 x XLR
Mic powering +12V T Power and Phantom +48V
Sensitivity From 2 mV to 40 mV/Pa
Line input Balanced, transformerless
Line input sensitivity 1.5 V to 4.4 V for 0 dB recording
Outputs
Analogue Line Outputs 2 XLR (4.4Vmax)
Headphone Stereo with level adjustement
THD at 1 kHz 0.1 %
Frequency response 30 -“ 20 kHz
Total dynamic range 98 dB (typical)
Digital Output AES 3 pole XLR
TC in / out 5 pin LEMO (Optional)
