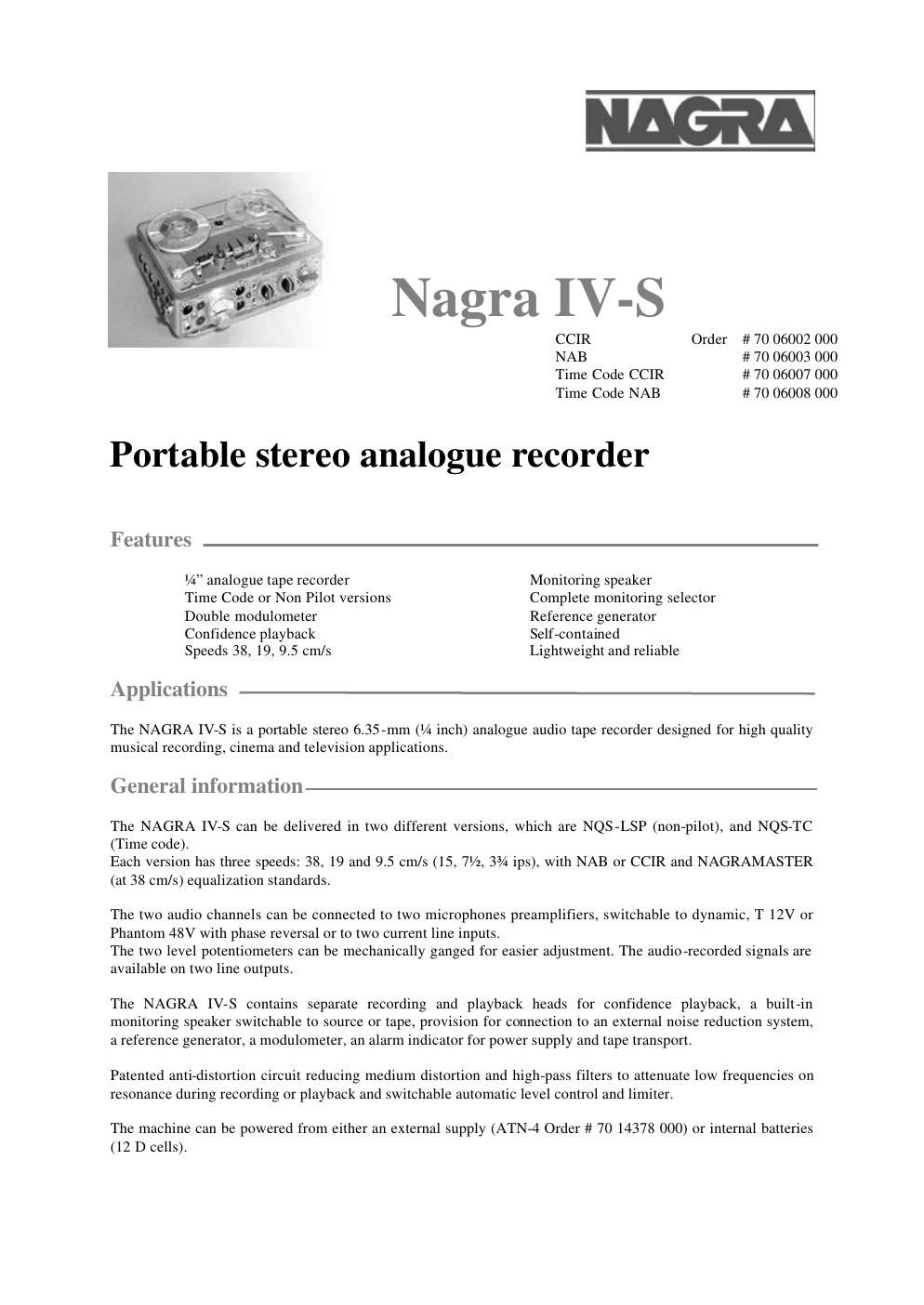

Specifications
General
Nominal recording level 0 dB = 510 nWb / m at 15ips (38cms)
Maximum peak recording level + 4 dB
Erase efficiency 83 dB (at maximum peak level)
Frequency response 30 -“ 20000 Hz +/- 1 dB (recorded at - 20 dB 38 cm/s)
Signal to noise ratio NAB 74.5 dB (Nagramaster at 38 cm / s)
Crosstalk between audio ch. 70 dB (1 kHz , 0 dB modulometer) 60 dB (10 kHz, 0 dB modulometer)
Residual TC on audio tracks Below - 88 dB to peak level
Inputs
Microphone 2 XLR 3, 12 V T, 48 V, Dynamic, phase reverse
Line 2 balanced on tuchel
Outputs
Line 2 line on Tuchel and banana
Headphone Stereo on ¼ jack
Time Code Lemo plug
Power supply
Battery Rechargeable (PA-4 Order # 70 98254 000) or 12 D cells
DC Power -10.5 to -30 V
Physical
Dimensions 333 x 242 x 113 mm, (13.2 x 9.6 x 4.5 inch)
Weight 6.4 kg, 15 lbs (cells and tape included)
Optional accessories
External accessories
20 99027 000 QTS Soft carrying case
70 09575 000 TCGR SMPTE / EBU Time code reader / generator
20 95996 000 CS 102 Resolver CS 102 Cooper
Cables
20 95970 000 CXLR-FM 3-pin XLR Cable male-female 1.5 m (5 ft)
70 16900 000 QCSE Line input cable 2 m (Tuchel 7 pm -“ 3 banana)
70 16901 000 QCTC Time code cable Lemo / Lemo
Nagravision SA
Route de Genève 22
1033 Cheseaux
Switzerland Nagra Office
Tel
Fax + 41 21 732 01 01
+ 41 21 732 02 12
audio@nagra.com
www.nagra.com
NAGRA IV-S TC V1 October 02Copyright Nagravision SA
