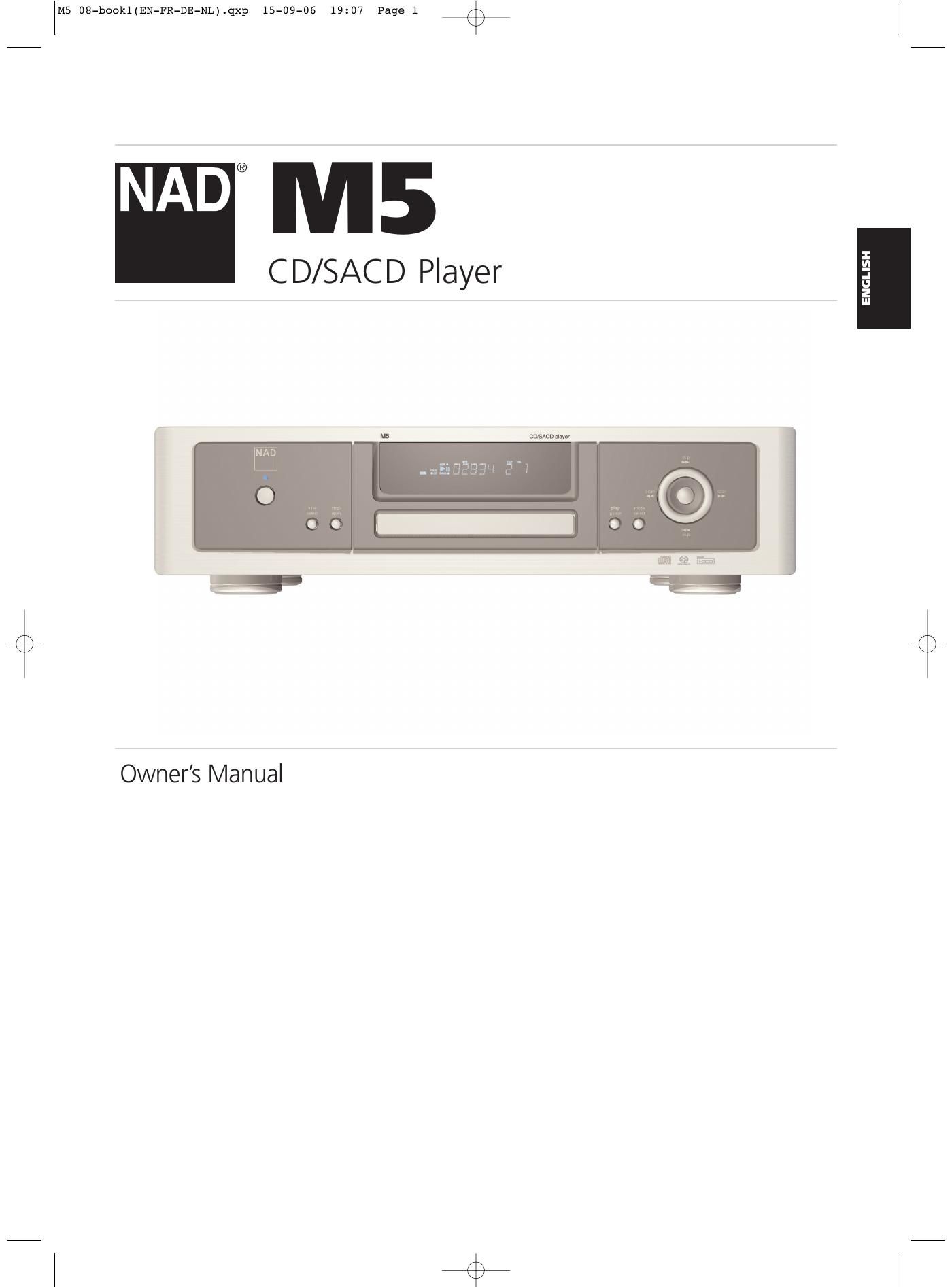

Nad M 5 Owners Manual

This is the 18 pages manual for Nad M 5 Owners Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 18
left right
Nad M 5 Owners Manual

Extracted text from Nad M 5 Owners Manual (Ocr-read)


Page 1

2 IMPORTANT SAFETY INSTRUCTIONS Introduction ENGLISH FRANÇAIS DEUTSCH NEDERLANDSESPAÑOLITALIANO PORTUGUÊSSVENSKA IMPORTANT SAFETY INSTRUCTIONS - Save these instructions for later use. - Follow all warnings and instructions marked on the audio equipment. 1 Read instructions - All the safety and operating instructions should be read before the product is operated. 2 Retain instructions- The safety and operating instructions should be retained for future reference. 3 Heed Warnings - All warnings on the product and in the operating instructions should be adhered to. 4 Follow Instructions- All operating and use instructions should be followed. 5 Cleaning- Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 6 Attachments- Do not use attachments not recommended by the product manufacturer as they may cause hazards. 7 Water and Moisture- Do not use this product near water-for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like. 8 Accessories- Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturers instructions, and should use a mounting accessory recommended by the manufacturer. 9 A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn. 10 Ventilation- Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturers instructions have been adhered to. 11 Power Sources- This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. -Main Power Disconnect;When the power switch is in the Off position, the SACD/CD-Player is not completely disconnected from the main power. The primary method of isolating the SACD/CD-Player from the mains supply is to disconnect the mains plug. Ensure that the mains plug remains accessible at all times. When installing the product, ensure that the plug is easily accessible. -Non-use Period;Unplug the AC power cord from the AC outlet if the unit will not be used for a long period of time such as several months or more. -CLASS 1 Products;The M5 shall be connected to a MAINSsocket outlet with a protective earthing connection. 12 Power-Cord Protection- Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product. 13 Outdoor Antenna Grounding- If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. NOTE TO CATV SYSTEM INSTALLER -This reminder is provided to call the CATV system installers attention to Section 820-40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical. 14 Lightning - For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges. 15 Power Lines- An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal. 16 Overloading- Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock. 17 Object and Liquid Entry- Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. WARNING18 Transportation- Transport the M5 in the shipping containers supplied. Do not transport the M5 using one shipping container; to do so may result in damage to either the SACD/CD-player or personnel. M5 08-book1(EN-FR-DE-NL).qxp 15-09-06 19:07 Page 2

Page 2

3 ENGLISH FRANÇAIS DEUTSCH NEDERLANDS ESPAÑOL ITALIANO PORTUGUÊS SVENSKA Introduction 19 Damage Requiring Service- Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a)When the power-supply cord or plug is damaged. b)If liquid has been spilled, or objects have fallen into the product. c)If the product has been exposed to rain or water. d)If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation. e)If the product has been dropped or damaged in any way. f)when the product exhibits a distinct change in performance-this indicates a need for service. 20 Replacement Parts- When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. 21 Safety Check- Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition. 22 Wall or Ceiling Mounting- The product should be mounted to a wall or ceiling only as recommended by the manufacturer. WARNING TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED DANGEROUS VOLTAGE WITHIN THE PRODUCTS ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS. THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT THE USER TO THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE CAUTION Changes or modifications to this equipment not expressly approved by NAD Electronics for compliance could void the users authority to operate this equipment. CAUTION REGARDING PLACEMENT To maintain proper ventilation, be sure to leave a space around the unit (from the largest outer dimensions including projections) equal to, or greater than, shown below. Left and Right Panels : 10 cm Rear Panel : 10 cm Top Panel : 50 cm IMPORTANT INFORMATION FOR UK CUSTOMERS DO NOTcut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer. If, nonetheless, the mains plug is cut off, REMOVE THE FUSE and dispose of the PLUG immediately, to avoid possible shock hazard by inadvertent connection to the mains supply. If this product is not provided with a mains plug, or one has to be fitted, then follow the instructions given below: IMPORTANT DO NOTmake any connection to the larger terminal which is marked with the letter E or by the safety earth symbol or coloured GREEN or GREEN AND YELLOW. The wires in the mains lead on this product are coloured in accordance with the following code: BLUE - NEUTRAL BROWN - LIVE As these colours may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The BLUE wire must be connected to the terminal marked with the letter N or coloured BLACK. The BROWN wire must be connected to the terminal marked with the letter L or coloured RED When replacing the fuse, only a correctly rated and approved type should be used, and be sure to re-fit the fuse cover. IF IN DOUBT CONSULT A COMPETENT ELECTRICIAN This product is manufactured to comply with the radio interference requirements of EEC DIRECTIVE 89/336/EEC, 93/68/EEC, and 73/23/EEC. NOTES ON ENVIRONMENTAL PROTECTION At the end of its useful life, this product must not be disposed of with regular household waste but must be returned to a collection point for the recycling of electrical and electronic equipment. The symbol on the product, user's manual and packaging, point this out. The materials can be reused in accordance with their markings. Through re-use, recycling of raw materials, or other forms of recycling of old products, you are making an important contribution to the protection of our environment. Your local administrative office can advise you of the responsible waste disposal point. IMPORTANT SAFETY INSTRUCTIONS M5 08-book1(EN-FR-DE-NL).qxp 15-09-06 19:07 Page 3

Page 5

6 ENGLISH FRANÇAIS DEUTSCH NEDERLANDSESPAÑOLITALIANO PORTUGUÊSSVENSKA 1 Analog Right Balanced OUT Jack. 2 Analog Audio Right OUT Jack. 3 Analog Audio Left OUT jack . 4 Analog Left Balanced OUT Jack. 5 SACD Multi-channel Audio Output: 5.1 CH AUDIO OUT FRONT L& RJacks 5.1 CH AUDIO OUT CENTERand SUBW(Subwoofer) Jacks 5.1 CH AUDIO OUT SURR(Surround Sound) L& RJacks 6 Digital OUT Balanced AES/EBU Jack.7 RS 232In/Out Jack. 8IR IN Jack. 9 +12V Trigger IN Jack. 10 Coaxial OUTJack 11 Optical OUTJack 12 Composite Video OUT Jack (NTSC, PAL, PAL 60) 13Power cord socket (120V North American, 230V European) 14 POWER ON/OFF REAR PANEL Identification of Controls NOTES Connect the optical digital cable (not supplied) firmly so that the configurations of both the cable and the connector match. The +12V TRIGGER IN jack is a 3.5mm monotype miniature phone jack with the centre pin the +12V signal-sense. We recommend that you use a good quality cable with shield when attaching the 3.5mm monotype plug so as to prevent false triggering of the SACD/CD-player due to electro- magnetic interference from nearby electronic equipment. The +12V-IN TRIGGERallows you to have an external +12V signal to turn ON the NAD M5 from standby. This +12V signal must be a continuous +12V signal in order to keep the M5 in the ON state. Once you remove the +12V signal the M5 will return to standby. Check the specifications of the trigger input terminal the other components to ensure these are compatible with the M5. All +12V-TRIGGERinputs and outputs on other NAD components with a +12V-TRIGGERfeature are fully compatible with the NAD M5s +12V-TRIGGER IN. Before making any connections to any +12V-TRIGGER INmake sure all components are disconnected from the AC mains. If in doubt over the connections, installation and/or operation of the +12V-TRIGGER IN connection, consult your NAD dealer or sales representative. Failure to observe the above may result in damage to the NAD M5 and/or any ancillary components attached to it. TheIR IN jack is connected to the output of an IR (infrared) repeater (Xantech or similar), or the IR output of another component to allow control of the M5 from a remote location. Ask your dealer or custom installer for further details The AES/EBU DIGITAL OUTPUTis a professional standard digital output. The signal is available from the XLR/Cannon connector marked AES/EBU, permitting the ultimate in high quality digital transmission with the best associated equipment. The serial data output is taken after error correction but before digital-to-analog conversion and filtering. The output is transformer-isolated from the built-in D-to-A circuits. The BALANCEDRight and Left Outputs connects to an integrated amplifier or preamplifier that uses balanced XLR input connectors, such as the NAD M3. The wiring standard used for these connectors is; Pin 1 Chassis Earth (GROUND), Pin 2 Hot (+ OUT), and Pin 3 Signal Ground (- OUT) The RS-232connector is a standard DB-9 RS-232 configuration.Use an "off-the-shelf" DB-9 RS-232 serial cable to connect between your Windows ®PC's DB-9 RS-232 connector and the M5's RS-232connector. For multi-channel SACD surround sound, connect the 5.1 CHANNEL AUDIO OUTfor 2-channel and multi-channel SACD media to your 5.1 surround sound preamplifier. For CD, MP3, and WMA PCM media connect the 2 CHANNEL AUDIO OUTto your stereo system. PCM media is only available on both Analog Audio OUTand DIGITAL OUT. M5 08-book1(EN-FR-DE-NL).qxp 15-09-06 19:07 Page 6
