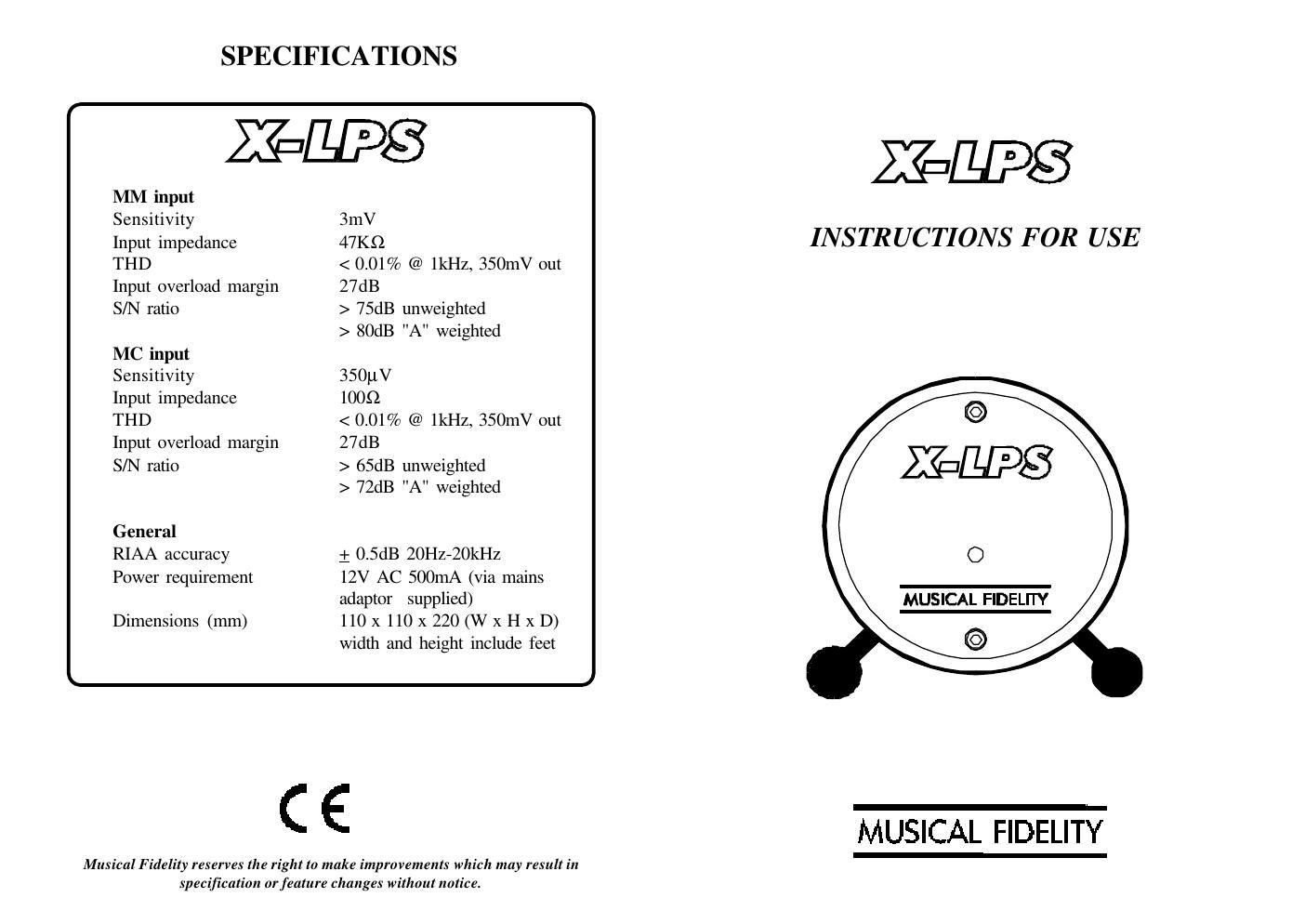

Introduction
Thank you for purchasing the X-LPS phono stage. We sincerely
hope that by allowing you to get the very best from your record
collection the X-LPS will bring you many years of listening pleasure.
Installation Precautions
Your new X-LPS is designed and built to provide trouble-free
performance, as with all electronic devices it is however necessary to
observe a few precautions. Please ensure that you have complied
with these before you connect the power to your X-LPS. Retain this guide
for future reference.
n nDo not use the X-LPS near water.
n nKeep the X-LPS away from heat sources such as
radiators.
n nOnly use the mains adaptor provided. The use of
other adaptors could seriously damage your X-LPS.
n nPlace all connecting cables where they are not likely
to bewalked on or trapped by items placed on them.
This Hi-Fi product has been tested to ensure that its operation
will not be adversely affected by normal background levels of R.F.I.
(Radio Frequency Interference). It is possible that if the unit is sub-
jected to abnormally high levels of R.F.I. the unit may not perform as
expected. In the unlikely event of this happening please contact
Musical Fidelity's service department.
Do not remove any covers, the X-LPS will not be covered under
warranty if it has been tampered with. There are no adjustments
within.
Please refer all service work to an authorised Musical Fidelity
agent.Connections
All connections should be made before the mains adaptor is
plugged in.
The X-LPS is easy to connect into your system, if your turntable is
fitted with a Moving Magnet type cartridge plug the RCA/phono leads
from your turntable into the X-LPS inputs marked MM, if your turntable
is fitted with a Moving Coil type cartridge plug the RCA/phono leads from
your turntable into the X-LPS inputs marked MC. Now select the
appropriate cartridge type with the MM/MC selector push button situated
on the X-LPS rear panel. This button should be "in" for MC and "out" for
MM.
Connect the Left and Right Outputs from the X-LPS to an unused
line level input (i.e. Aux, Line etc.) on your amplifier system. Use a
good quality RCA/phono interconnect lead. For the best results we
recommend that you use Musical Fidelity X-LINX "no-nonsense"
interconnect cables which are specifically designed to work with the
X-Series units.
If your turntable has a separate single wire (a chassis earth)
sometimes included with or in addition to the RCA/phono leads, this
should be connected to the green earth terminal on the rear of the X-LPS
(marked with the earth symbol).
When all the connections are made, plug in the supplied mains
adaptor, select the appropriate input on your amplifier, carefully
advance the volume control and enjoy the music.
The X-LPS has been designed so that it may be left on indefinitely.FROM TURNTABLE >
