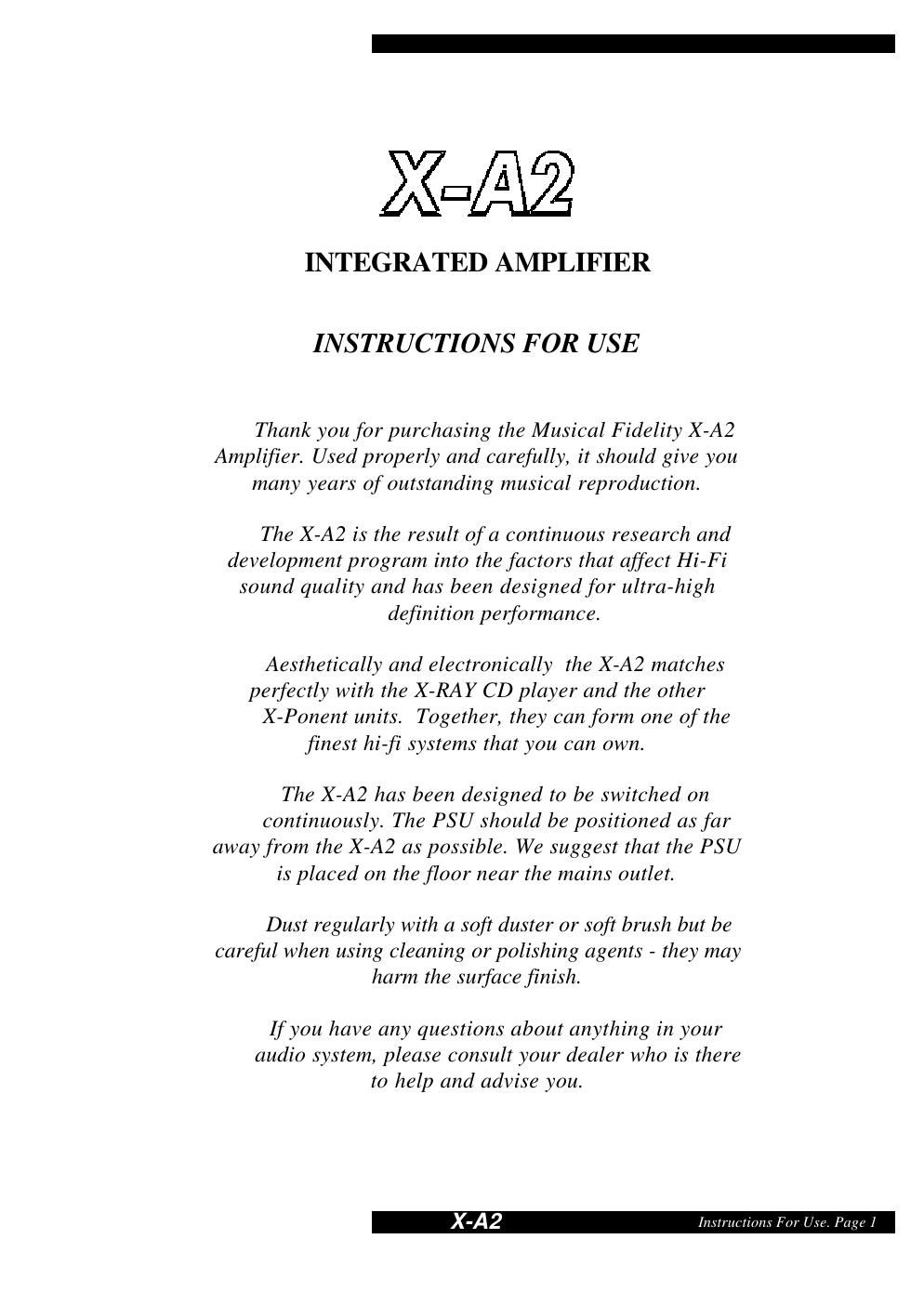

Page 1
Instructions For Use. Page 2
X-A2PLEASE READ
IMPORTANT!
This unit is supplied in the UK with a mains lead fitted with a moulded 13 amp
plug. If, for any reason, you need to cut off this plug, please observe the following
safety precautions. Please dispose of the cut-off plug safely. It must not be plugged
into a mains power supply.
The wires in the mains lead supplied with this appliance are coloured in ac-
cordance with the following code:
Green and yellow..............Earth
Blue...............................Neutral
Brown................................Live
WARNING - This appliance must be earthed
As the colours of the wires of the mains lead of this appliance may not corre-
spond with the coloured markings identifying the terminals in your plug, proceed as
follows:
-The wire which is coloured green-and-yellow must be connected to the termi-
nal in the plug which is marked with the letter E or coloured green or green-and-
yellow, or by the earth symbol .
-The wire which is coloured brown must be connected to the terminal which is
marked with the letter L or coloured red.
-The wire which is coloured blue must be connected to the terminal which is
marked with the letter N or coloured black.
-If connecting to a BS1363 plug, a 10 amp fuse must be used.
WARNING - Speaker Terminals
In order to comply with BSEN60-065 safety regulations, the 4mm. banana plug
holes have been fitted with plastic blanking pieces. Removal of these will invalidate
any safety approval of this unit.
WARNING - Radio Frequency Interference (RFI)
This hi-fi product has been tested to ensure that its operation will not be ad-
versely affected by normal background levels of RFI. It is possible that if this prod-
uct is subjected to abnormally high levels of RFI the unit may be susceptible and not
perform as expected. In the unlikely event of this happening on a regular basis,
please contact Musical Fidelity's service department.
The unit has also been tested to ensure that it does not radiate excessive levels
of RFI that could affect other pieces of electronic or electrical equipment.
The electronics in modern hi-fi equipment is complex and hence may be dam-
aged by lightning. It is possible that during electrical storms the operation of some
equipment may be adversely affected. For complete protection of your hi-fi system
during such storms, mains plugs and aerial leads should be disconnected.
Always ensure that when disconnecting and reconnecting your hi-fi equipment the mains
supply is switched off.
Page 2
Instructions For Use. Page 3
X-A2CONNECTIONS AND FACILITIES5 6 7 8 9 10 11 12 13BACK PANEL5CD input
6Tuner input
7Aux 1 input
8Aux 2 input
9Aux 3 input
10Tape input
11Tape record output
12Preamp output
13External PSU input
14Right loudspeaker output
15Left loudspeaker output FRONT PANEL1Power on indicator LED
2Volume control
3Tape monitor button
4Source selector switch1
2 3 4
14 15
