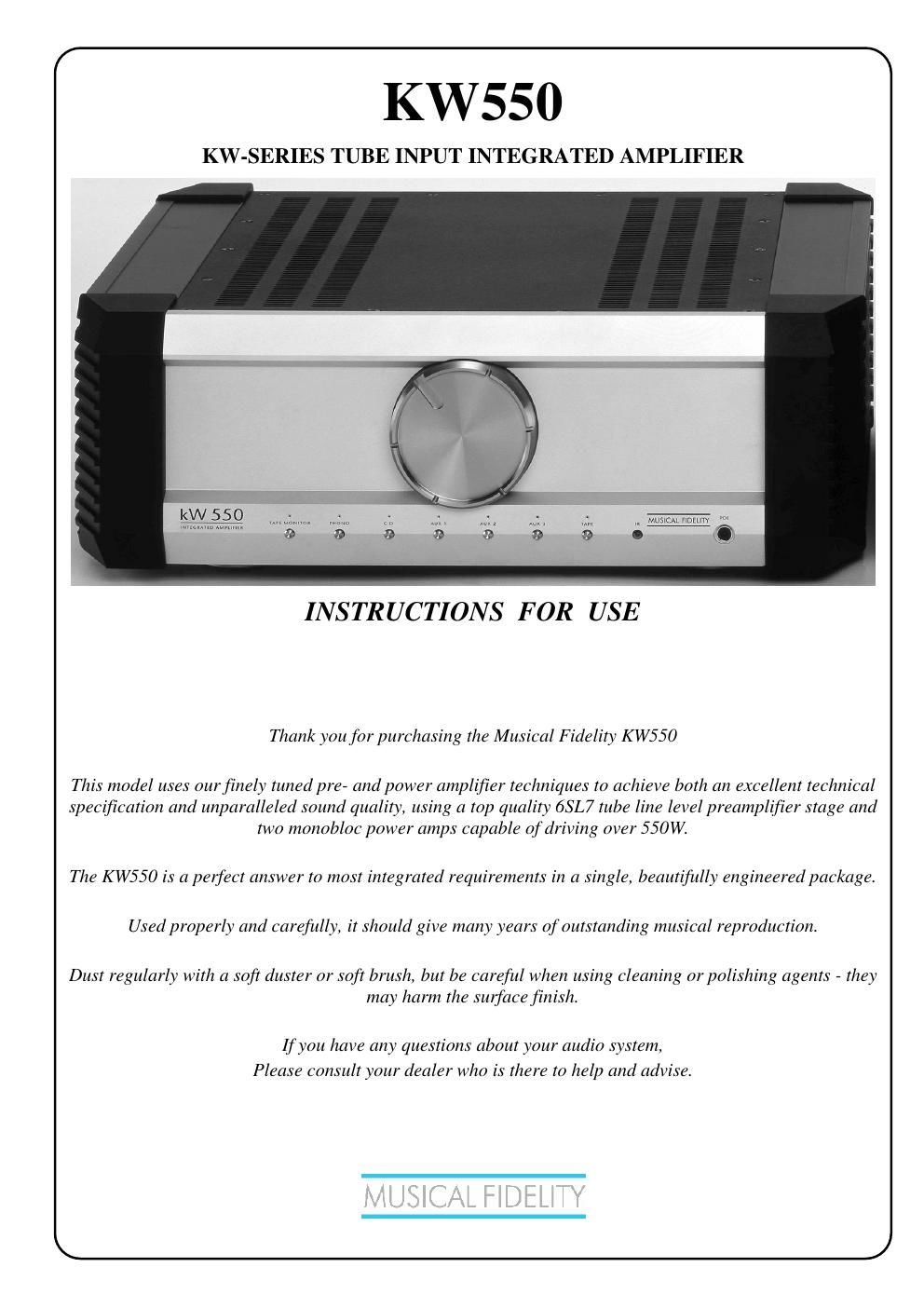

Extracted text from musical fidelity kw 550 owners manual (Ocr-read)
Page 1
KW550 CONTENTS
Issue 1: August 2006 Page 2
of 14
PAGE Section
3
Safety information -
- Mains plug (U.K. only)
Modification warning
4 General advice -
- Installation precautions
User information
5 Disposal information EU disposal information
6 Installation -
-
-
- Introduction
Installation
Audio connection
Cleaning
7
8 Facilities and connections -
- Illustrations -“ Main unit front & rear panels
Illustrations -“ Power unit front & rear panels
9 Remote control - Operation and illustration
10 Amplifier connections - Input connections, output connections
11 Amplifier operation - Starting Volume, Phono, CD, AUX1,
AUX2, AUX3, TAPE, recording
12 Amplifier problems? - Basic amplifier fault finding
13 Amplifier specifications
14 Manual history
Page 2
KW550 SAFETY INFORMATION
Issue 1: August 2006 Page 3
of 14
IMPORTANT! (U.K. only)
This unit is supplied in the U.K. with mains lead fitted with a moulded 13 amp plug. If, for any reason, you need to cut
off the plug, please remove the fuse holder and dispose of the plug safely, out of reach of children.
It must not be plugged into a mains outlet.
The wires in the mains lead supplied with this appliance are coloured in accordance with the following code:
Green and yellow..............Earth
Blue................................Neutral
Brown.................................Live
WARNING - This appliance MUST be earthed
As the colours of the wires of the mains lead of this appliance may not correspond with the
coloured markings identifying the terminals in your plug, proceed as follows:
The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked with the
letter E or coloured green or green-and-yellow, or by the earth symbol :
The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.
The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
If connecting to a BS1363 plug, a 13 amp fuse must be used.
WARNING:
ANY MODIFICATIONS TO THIS PRODUCT NOT EXPRESSLY APPROVED
BY MUSICAL FIDELITY WHO IS THE PARTY RESPONSIBLE FOR
STANDARDS COMPLIANCE COULD VOID THE USER'S AUTHORITY TO
OPERATE THIS EQUIPMENT.
