musical fidelity e 20 owners manual

Extracted text from musical fidelity e 20 owners manual (Ocr-read)

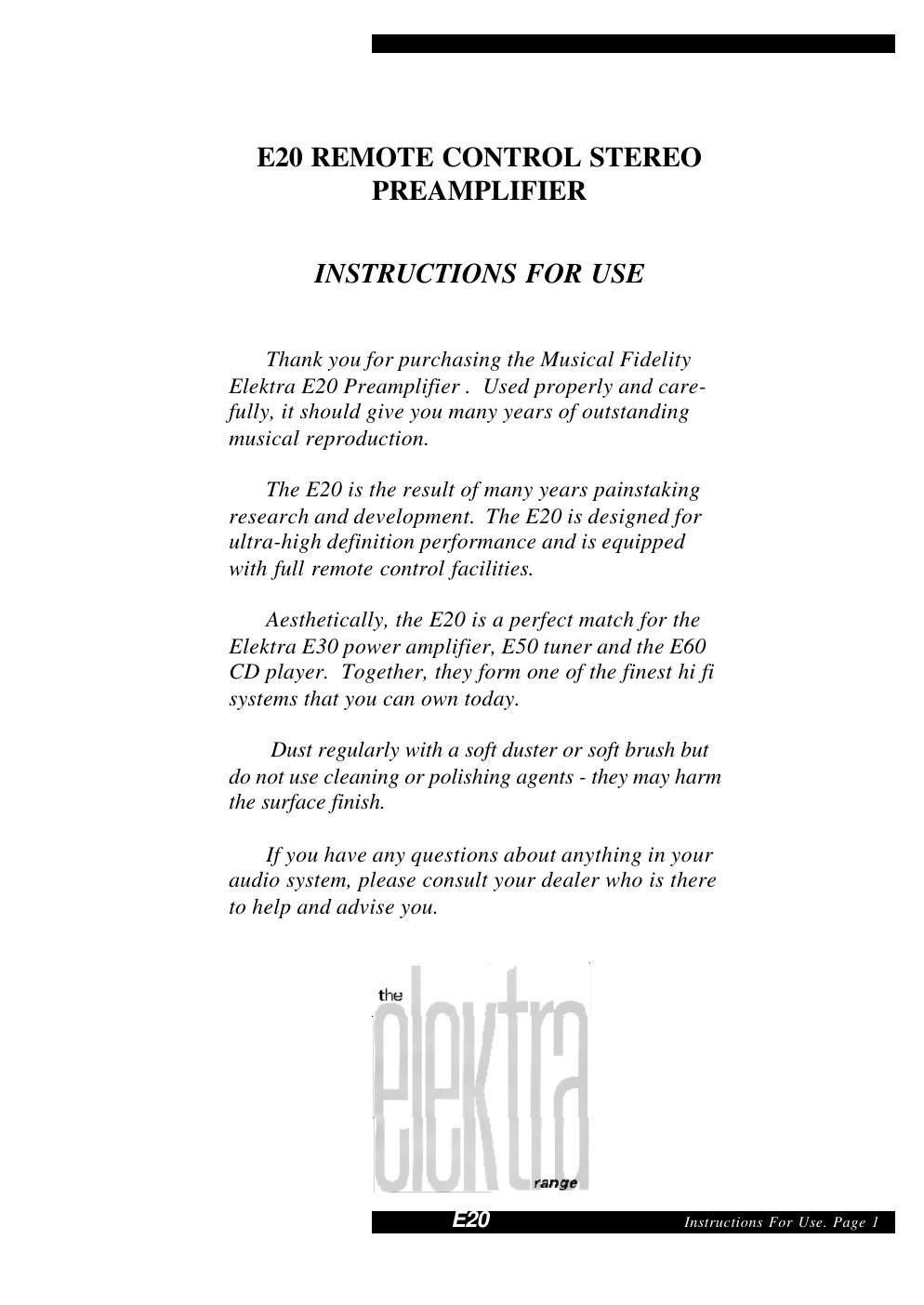

Page 1

Instructions For Use. Page 2 E20PLEASE READ IMPORTANT! This unit is supplied in the UK with a mains lead fitted with a moulded 13 amp plug. If, for any reason, you need to cut off this plug, please observe the following safety precautions. Please dispose of the cut-off plug safely. It must not be plugged into a mains power supply. The wires in the mains lead supplied with this appliance are coloured in ac- cordance with the following code: Green and yellow..............Earth Blue...............................Neutral Brown................................Live WARNING - This appliance must be earthed As the colours of the wires of the mains lead of this appliance may not corre- spond with the coloured markings identifying the terminals in your plug, proceed as follows: -The wire which is coloured green-and-yellow must be connected to the termi- nal in the plug which is marked with the letter E or coloured green or green-and- yellow, or by the earth symbol . -The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red. -The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. -If connecting to a BS1363 plug, a 10 amp fuse must be used. WARNING - Radio Frequency Interference (RFI) This hi-fi product has been tested to ensure that its operation will not be ad- versely affected by normal background levels of RFI. It is possible that if this prod- uct is subjected to abnormally high levels of RFI the unit may be susceptible and not perform as expected. In the unlikely event of this happening on a regular basis, please contact Musical Fidelity's service department. The unit has also been tested to ensure that it does not radiate excessive levels of RFI that could affect other pieces of electronic or electrical equipment. The electronics in modern hi-fi equipment is complex and hence may be dam- aged by lightning. It is possible that during electrical storms the operation of some equipment may be adversely affected. For complete protection of your hi-fi system during such storms, mains plugs should be removed from sockets and aerial leads disconnected. Always ensure that when disconnecting and reconnecting your hi-fi equipment the mains supply is switched off.

Page 2

Instructions For Use. Page 3 E20 CONNECTIONS AND FACILITIES REMOTE CONTROL ARemote operation LED BVolume Up/Down buttons CSource selector buttons DMute ButtonA C B D 10 12 13 14 15 16 17 18 19 20 21 22 23 111 2 3 4 5 6 7 8 9 FRONT PANEL 1Power on/off switch 2Volume control knob 3Remote receiver lens 4Tape 2 record selectors 5Mute indicator 6Source selector knob 7LED, indicates volume setting 8Output to Tape 2 indicators 9Source (listen) indicators BACK PANEL 10Phono/Chassis Earth 11Phono cartridge type button 12Phono input 13CD input 14Tuner input 15Video input 16Laser Disc input 17Auxiliary input 18Tape 1 input 19Tape 2 input 20Tape 1 record output 21Tape 2 record output 22Preamp outputs 23IEC mains inlet/ fuseholder
