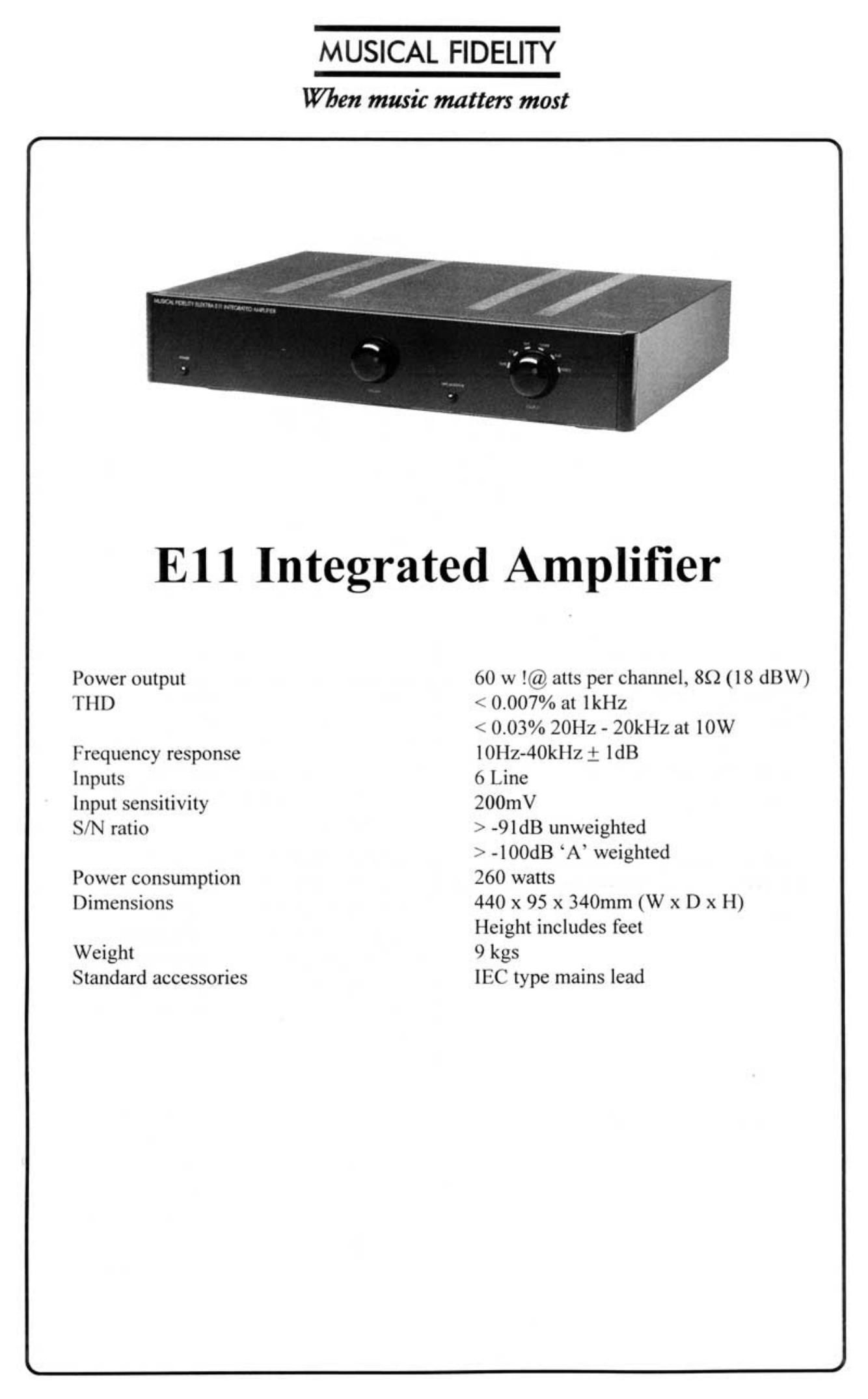

E11 Integrated Amplifier

Features

Combines the benefits of Class A (smooth
sound at average listening levels) with
the advantages of Class B (eflicient use
of power supply)

Allows flexible use of the E1] in
multi-room or surround sound situations

Class A/B output stage

Active preamp output included

Two pairs of high current bi-polar
power transistors per channel

The E11 easily drives most speakers and
can provide large peak currents giving
very low distortion under dynamic
conditions

Structured internally as separate pre
and power amps but packaged in an
integrated chassis

Allows optimum design free from
intermodulation and other distortions that
can occur when these circuits are
combined but with the advantage of
perfect interconnection between them

Sophisticated PCB layout featuring
extended star-earthing system

Minimises amplitude and phase distortion
at high frequencies and high currents

Fully discrete preamp and poweramp
circuits

No I.C.s are used, all circuitry is
designed specifically for its purpose.
Constucting the circuits from ground
level up allows Musical Fidelity
engineers complete freedom to optimise
the E11 design for the very best sound
quality possible

Allows ofiitape monitoring with three
head tape decks, plus insertion of sound
processors

Tape monitor circuit
