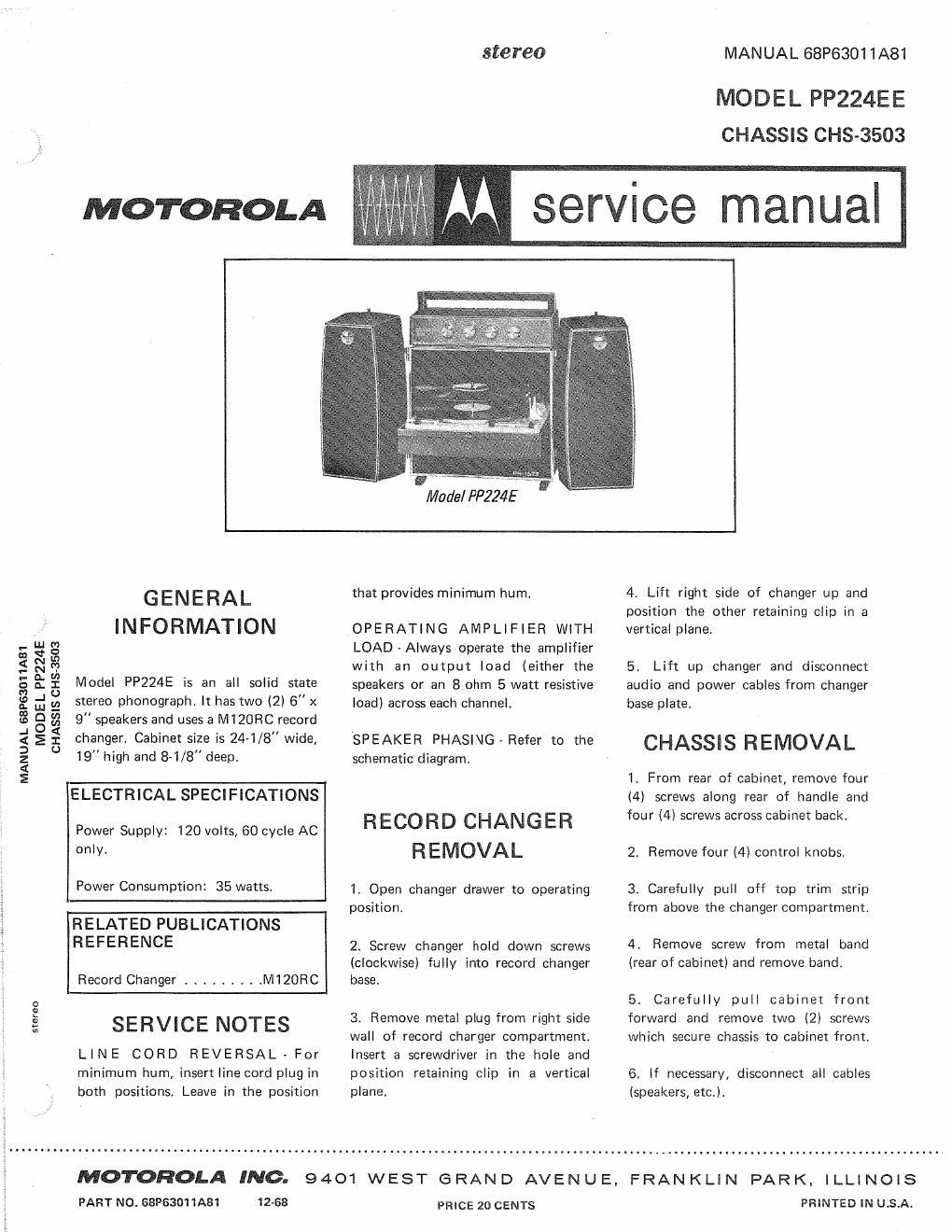

Page 1

stereo MANUAL 68P63011A81

MOD E L PP224EE
CHASSIS CHS-3503

mow-anon M service manual

stereo

Made/FP224E

GENERAL
INFORMATION

ELECTRICAL SPECIFICATIONS

Power Supply: 120 volts, 60 cycle AC
only.

Power Consumption: 35 watts.

RELATED PUBLICATIONS
REFERENCE

Record Changer ......... M12ORC

SERVICE NOTES

LINE CORD REVERSAL - For
minimum hum, insert line cord plug in
both positions. Leave in the position

that provides minimum hum.

OPERATING AMPLIFIER WITH

RECORD CHANGER
REMOVAL

1. Open changer drawer to operating
position.

2. Screw changer hold down screws
(clockwise) fully into record changer
base.

3, Remove metal plug from right side
wall of record changer compartment.
Insert a screwdriver in the hole and
position retaining clip in a vertical
plane.

4. Lift right side of changer up and
position the other retaining clip in a
vertical plane.

5 g 8 LOAD - Always operate the amplifier

5 mg with an output load (either the 5. Lift up changer and disconnect
5,, 32% Model PP224E is an all SDlid state speakers or an 8 ohm 5 watt resistive audio and power cables from changer
E E: :9 stereo PhODOQIaph. It has two (2) 6" X load) across each channel. base plate.

§ 8 g 9" speakers and uses a M120RC record

g: 5 changer. Cabinet Sife is 24-1/8 Wide, SPEAKER-PHASING-Refer to the CHASSIS REMOVAL
E 19 hlgh and 84/8 deep. schematic diagram.

3 i. From rear of cabinet, remove four

(4) screws along rear of handle and
four (4) screws across cabinet back.

2. Remove four (4) control knobs.

3. Carefully pull off top trim strip
from above the changer compartment.

4. Remove screw from metal band
(rear of cabinet) and remove band.

5. Carefully pull cabinet front
forward and remove two (2) screws
which secure chassis to cabinet front.

6. if necessary, disconnect all cables
(speakers, etc).

MOTOROLA INC.
PART no. GSPSSBI mm

9401 WEST GRAND AVENUE. FRANKLIN PARK. ILLINOIS
PRENTED iN U.S.A.

12-53 PRICE 20 CENTS
