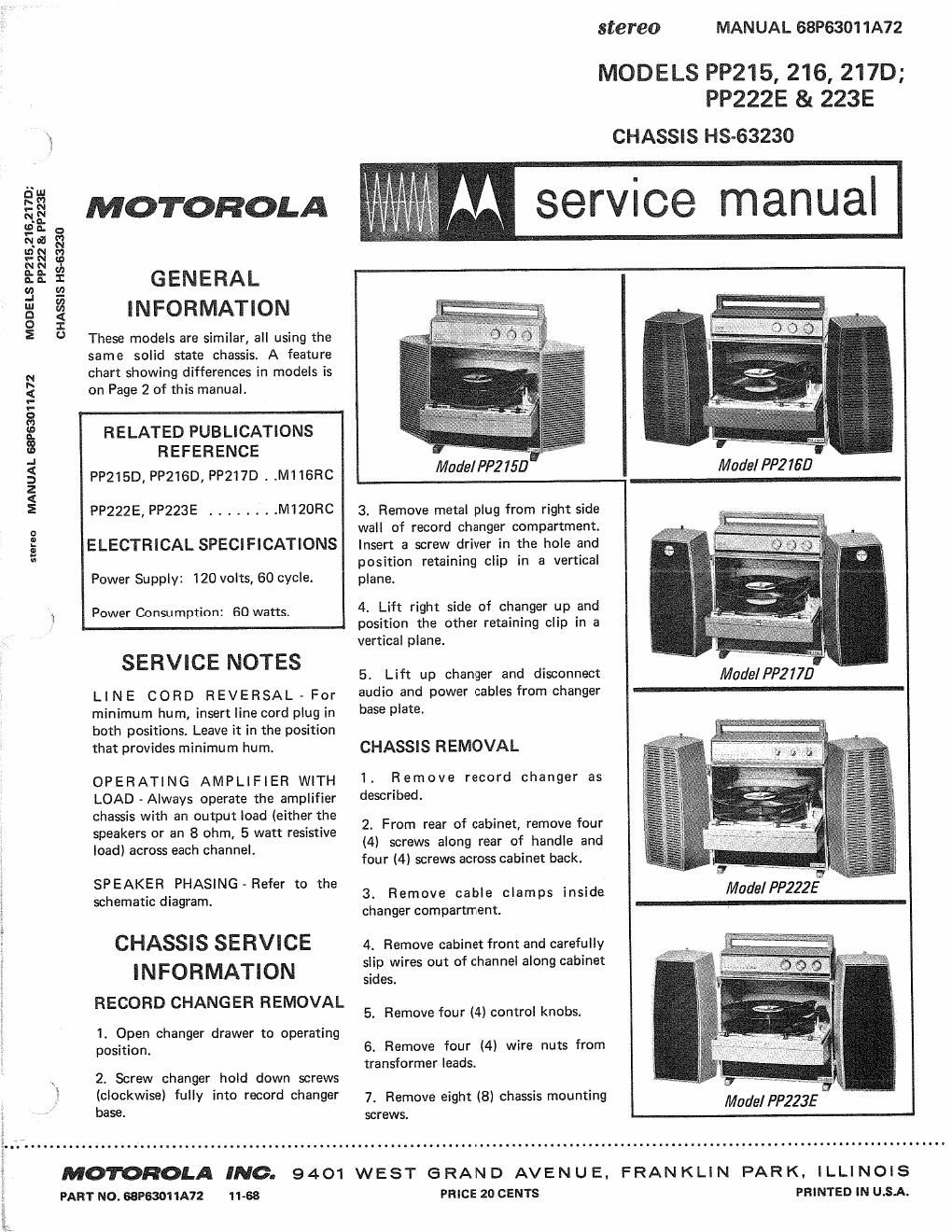

29M. . ..

MODELS PP215,216,217D:

MANUAL W63011A72

stereo

PP222 8| PP223E

CHASSIS HS-63230

PART NO. 68P6301 1A72

MOTOROLA INC.

MOTOROLA

GENERAL
INFORMATION

These models are similar, all using the
same solid state chassis. A feature
chart showing differences in models is
on Page 2 of this manual.

RELATED PUBLICATIONS
REFERENCE

PP215D, PP216D, PP217D . .Ml 16RC
PP222E, PP223E ...... ' . .M120RC
ELECTRICAL SPECIFICATIONS
Power Supply: 120 volts, 60 cycle.

Power Consumption: 60 watts.

SERVICE NOTES

LIN E CORD REVERSAL - For
minimum hum, insert line cord plug in
both positions. Leave it in the position
that provides minimum hum.

OPERATING AMPLIFIER WITH
LOAD ~ Always operate the amplifier
chassis with an output load (either the
speakers or an 8 ohm, 5 watt resistive
load) across each channel.

SPEAKER PHASING-Refer to the
schematic diagram.

CHASSIS SERVICE
INFORMATION
RECORD CHANGER REMOVAL

1. Open changer drawer to operating
position.

2. Screw changer hold down screws
(clockwise) fully into record changer
base.

11-68

M service manual

stereo MANUAL 68P63011A72

MODELS PP215, 216, 217D;
PP222E & 223E

CHASSIS HS-63230

Made] PPZ I50

3. Remove metal plug from right side
wall of record changer compartment.
Insert a screw driver in the hole and
position retaining clip in a vertical
plane.

4. Lift right side of changer up and
position the other retaining clip in a
vertical plane.

5. Lift up changer and disconnect
audio and power cables from changer
base plate.

CHASSIS REMOVAL

1. Remove record changer as
described.

2. From rear of cabinet, remove four
(4) screws along rear of handle and
four (4) screws across cabinet back.

3. Remove cable clamps inside
changer compartment.

4. Remove cabinet front and carefully
slip wires out of channel along cabinet
sides.

5. Remove four (4) control knobs.

6. Remove four (4) wire nuts from
transformer leads.

7. Remove eight (8) chassis mounting
screws.

9401 WEST GRAND AVENUE, FRANKLIN PARK.

PRICE 20 CENTS

, , m

' " "2:
M del PPZZZE

ILLI N O l S
PRINTED IN U.S.A.

Page 2

FEATURE CHART

[MODEL NO. PPZISDL PP21SDN PP215DU PP21SDN PP216DU PP217DN PP222EU PP223EA I
CHANNELS 2 2 2 2 2 2 2 2
WATTS - MUSIC
POWER OUTPUT 2 2 2 2 2 2 2 2
SPEAKER
COMPLEMENT 2-5" 2-5" 2-5" 2-6" 2-6" 2-6"x9" 2-6" 243"
OUTPUT STAGE
(SINGLE ENDED) 2 2 2 2 2 2 2 2
VOLUME
CONTROLS 2 2 2 2 2 2 2 2
TONE
CONTROL YES YES YES YES YES YES YES YES
MOTOROLA
4-SPEED M116 M116 M116 M116 M116 M116 M120 M120
AUTOMATIC FIC RC RC RC RC RC RC RC
RECORD CHANGER
CARTRIDGE CER CER CER CER CER CER CER CER
STYLII SAPPH SAPPH SAFPH SAPPH SAPPH SAPPH SAPPH SRPPH
45 RPM
SPINDLE YES YES YES YES YES YES YES YES
WIDTH 24-1/8" 24-1/8" 24-1/8" 24-1] " 24-1/3" 244/8" 24%" 24%"
HEIGHT 19" 19" 19" 19" 19" 19" 19" 19"
DEPTH BACI 8%" 81/2" 8% 8%" 3-1/8" 8-1/8" 84/8"
SPEAKER WINGS
(REMOVABLE) 2 2 2 2 2 2 2 2
CABINET TYPE CHAR CHAR VINYL LIGHT MISTY
(POLYSTYRENEI BLUE BEIGE BRN BEIGE BRN INLAY OLIVE GREY

03
W132
151
CHANNEL
DRIVER

b

R15 33K

M32
RIGHT

R8 41K
nlygox
2
R14 1K
A§ a

R4 4.7M E Q! -04com
CHANNEL CHANNEL
mm mm ouwur oz - osconm m mu 3.
g x 5' mm
C: .022 Q" g 12
:= : TONE g G 0 E3
:2 _ . A RIGHT
cg]; Q g G 3 * CHANNEL
I u g a m SPEAKER
v T v °
___________ E
I mumoa _I
I mm 630630005534
505: MN!) I
I cm I
Imam I m.
I W I
I---__--_-_fl'.!_l
I cannot I H. m" :21 10K 12.0w NOTE-
":u' . vomces - MEASURED FROM POIN1 momma
an 4» cu; 3 m a-wn-HA vrvm i muosmm mm moan
3 3 ' 5 6:1- $=cmsms cxomn nn=cmm

PM

Schematic Diagram
