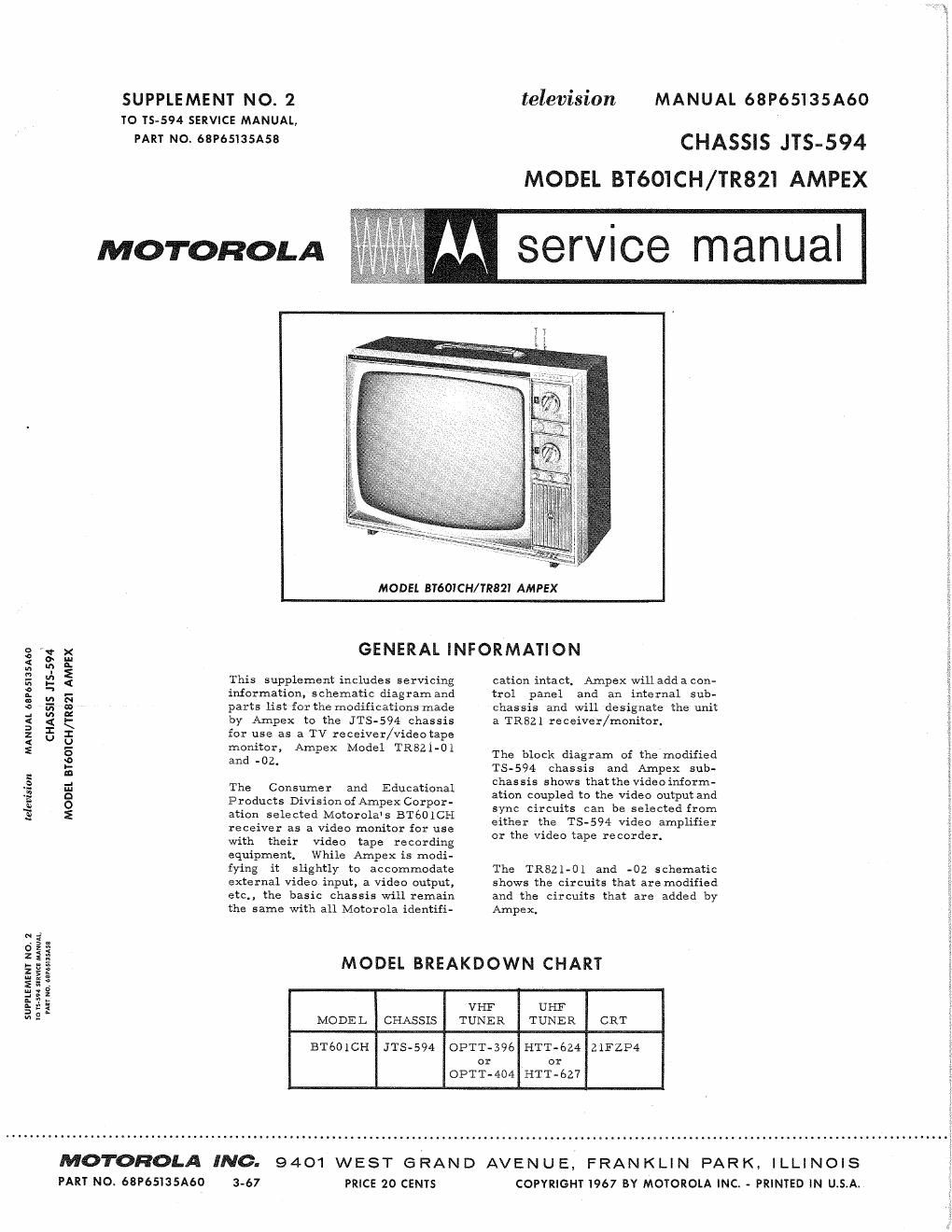

SUPPLEMENT NO. 2
TO 75.594 SERVICE MANUAL,
PART NO. 68P65135A56
MOTOROLA
television
MANUAL 68P65135A60
CHASSIS JTS-594
MODEL BT601CH/TR82I AMPEX
M service manual
MODEL BTéOICH/TR82I AMPEX
This supplement includes servicing
GENERAL INFORMATION
cation intact,
Ampex will add a con-
information, schematic diagramand trol panel and an internal sub-
MANUAL baPéslSSAbo
CHASSIS JTS-594
MODEL BTbOICH/TR82I AMPEX
television
m -5 5mm mum,
nu NOV «mum:
SUPPLEMENT No. 2
MOTOROLA INC.
PART No. 68P65135A60
parts list for the modifications made
by Ampex to the JTS-594 chassis
for use as a TV receiver/videotape
monitor, Ampex Model TRBZl-Ol
and -02.
The Consumer and Educational
Products DivisionofAmpex Corpor-
ation selected Motorola's BT601CH
receiver as a video monitor for use
with their Video tape reccrding
equipment. While Ampex is modi-
fying it slightly to accommodate
external video input, a video output,
etc the basic chassis will remain
the same with all Motorola identifi-
chaesis and will designate the unit
a TRSZI receiver/monitor.
The block diagram of the modified
TS-594 chassis and Ampex sub-
chassis shows thatthe videoinform-
ation coupled to the video output and
sync circuits can be selected from
either the TS-594 video amplifier
or the video tape recorder.
The TRBZl-Ol and -02 schematic
shows the circuits that are modified
and the circuits that are added by
Amyex.
MODEL BREAKDOWN CHART
MODE L CHASSIS
VHF UHF
TUNER TUNER CRT
BTéolCH JTS-594 OPTT-396 PITT-624 ZlFZP4
OPTT-404 HTT-627
or
3-67 PRICE 20 CENTS
9401 WEST GRAND AVENUE, FRANKLIN PARK.
| LLI N O | S
COPYRIGHT 1967 BY MOTOROLA INC. - PRINTED IN USA.
