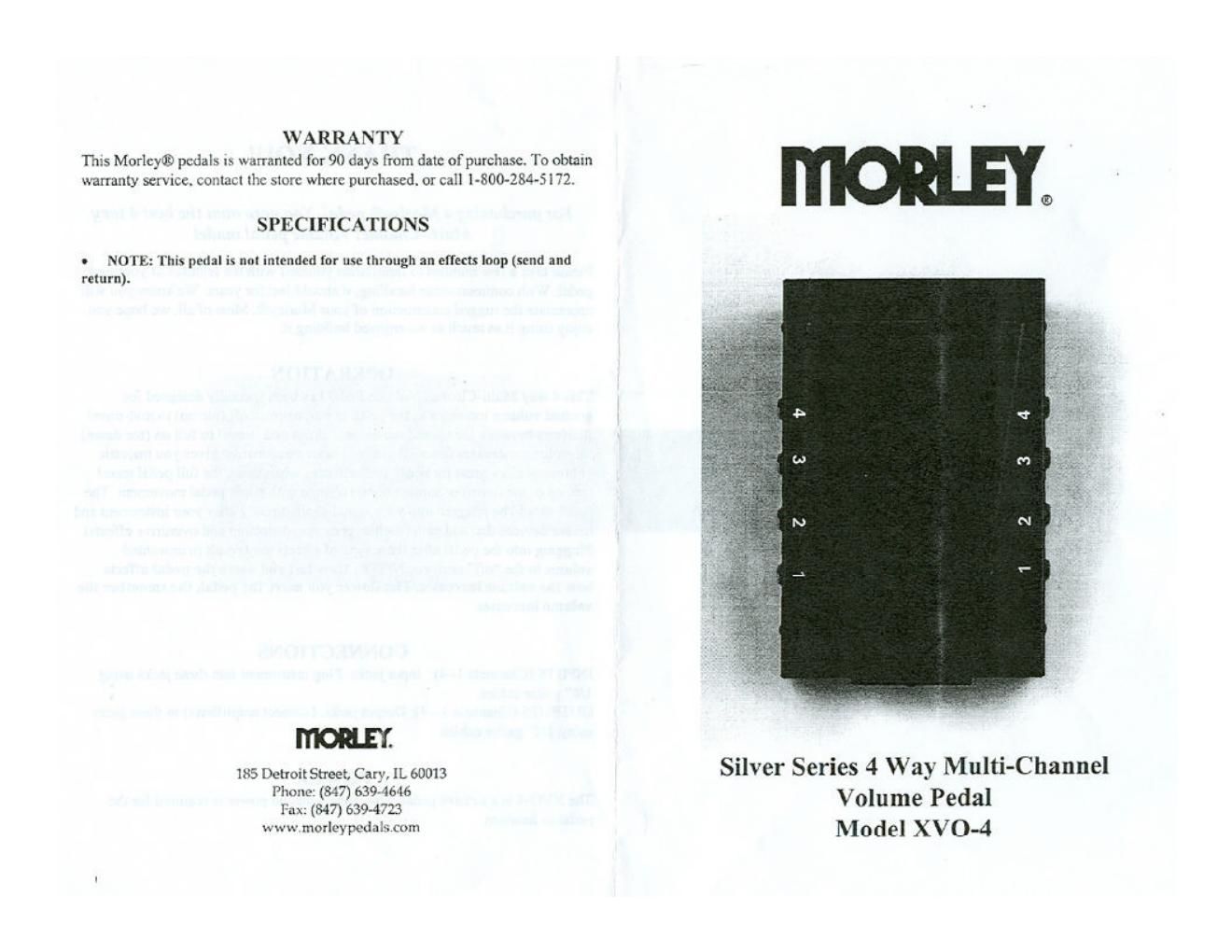

Page 1

WARRANIY
Tms Morlcy® pcdals 1.x warranted for 90 days from datc ofpurchasc. To obtain
warranty scnicc. contact the state where purchased. or call 1-800-234-5172.

SPECIFICATIONS

I N0 FE: 'lhi pedal ix nut intended for use through an effects loop (send and
return).

MEI

IHSlJclwItStreet,CannlL 60013 Silver Series 4 Way Multi-Channel
Phone (M7) (539-1646 7
1m; (847)639-4723 V olume Pedal

www murluypcdn 19 com IVIOdCl XVO'4

Page 2

THANK YOU!

For purchasing a Morley® pedal. You now own the best 4 way
Mum-Channel Volume pedal made!

Please take a few minutes to familiarize yourself with the features ofyour new
pedal. With common sense handling, it should last for years. We know you will
appreciate the rugged construction of your Morley®. Most of all, we hope you
enjoy using it as much as we enjoyed building it.

OPERATION

This 4 way Mold-Channel Volume Pedal has been specially designed for
gradual volume increases as the pedal is moved from off(toe up) to mid-travel
(halfway between toe up and toe down). From mid -travel to full on (toe down)
the volume increases faster. 111is audio taper combination gives you majestic
volume swells - great for pedal steel effects - when using the full pedal travel
(to: up or to: down) or subtle volume change with slight pedal moveman The
pedal should be plugged into your signal chain directly after your instrument and
before devices that add gain (such as preamps, distortion and overdrive effects).
Plugging into the pedal after these type of effects may result in unwanted
volume in the off position. NOTE: How fast you move the pedal affects
how the volume increases. The slower you move the pedal, the smoother the
volume increases.

CONNECTIONS
INPUTS (Channels l- 4): Input jacks. Plug instrument into these jacks usmg
1/4" guitar cables.
OUTPUTS (Channel: I - 4): Output jacks. Connect amplifier-(s) to these jacks
using 1/4 guitar cables

POWER

The XVO-4 is a passive pedal. That means that no power is required for the
pedal to function.
