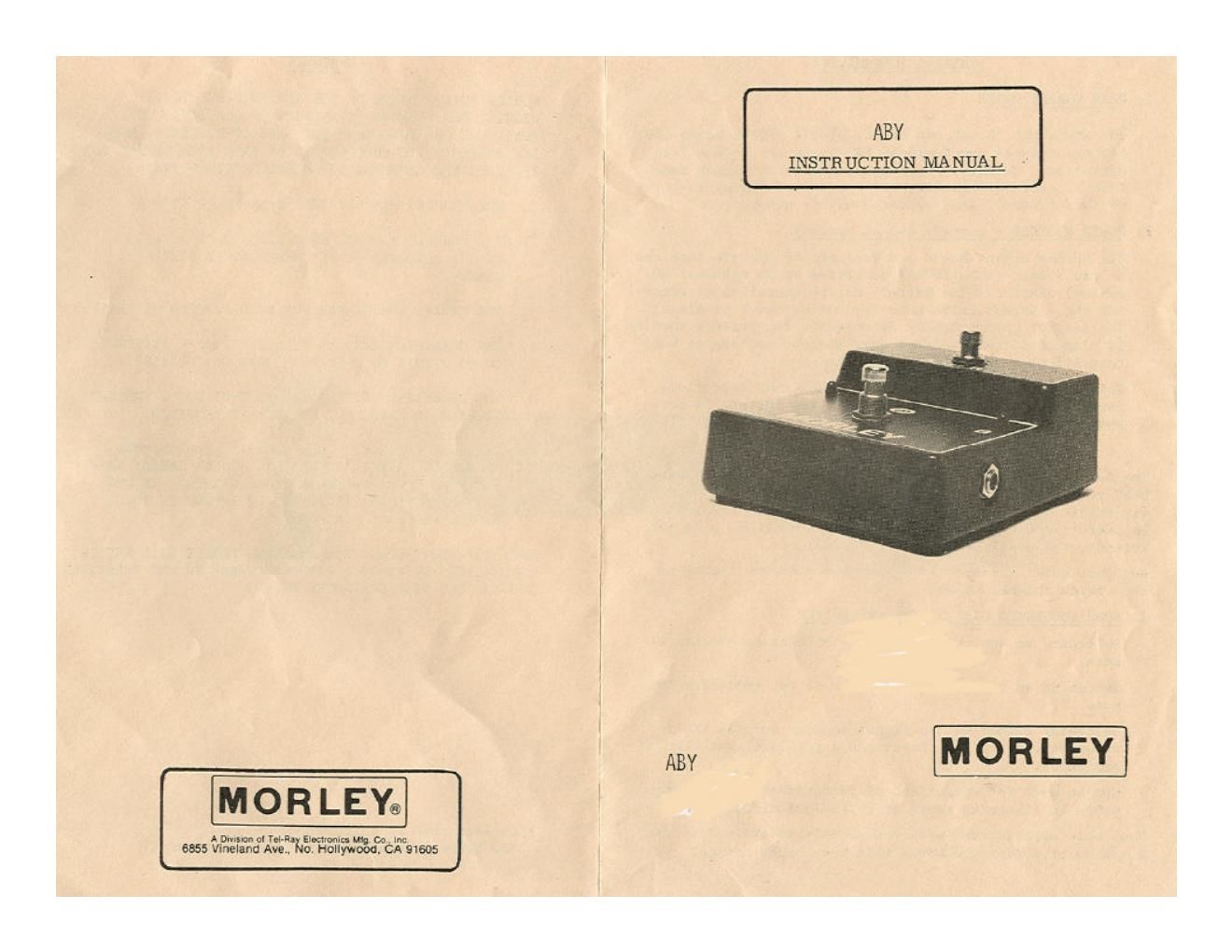

Morley aby selector combiner old

Page 2

GENERAL INFORNAIION Wu

1- DEAR MORLEY OWNER MORLEY BUILDS STATE OF THE ART PRODUCTS TO THE
HIGHEST PROFESSIONAL STANDARDS OF QUALITY. THERE-
You are about to use one of the finest effect boxes made. FORE, FOR ONE YEAR FROM THE DATE OF PURCHASE, HOR-
Morley products are designed for years of trouble free ; LEY VARMNTS ITS PRODUCTS TO BE FREE FROM DEFECT T0

operation. To insure maximum satisfaction please take
time to read this booklet which points out many features
of this product, some oizwhich may be new to you.

POWER SOURCES - ,pattery and, to (mine)

All Morley effect boxes are designed to operate from one
or two 9 volt (NEJA 160M) batteries or an optional Ac
(mains) adapter. * The battery can be installed by remov-
ing the la torews which hold the bottom cover in place.
The adapter automatically disconnect: the battery when it
is plugged into the effect box, thereby prolonging bat-
tery life.

The adapter is more economical to use than batteries,
however there are times when using the battery is more
convenient. Morley therefore provides both capabilities.

ABY

The ABY is a multi-channel switch that has been around for
many years and has been used mostly in laboratories and by
electronic engineers. Morley added the lights and found it
so useful in our own work we decided to share it with our
friends, the people who use Morley products.

Our particular version of the concept uses the lights to
show which channel is on.

1. SOME SUGGESTED USES OF THE ABY SWITCH

Switching an amp output from one speaker to another or
both.

Switching an instrument to either of two amplifier inf
puts.

Switching either of two signal sources such as two in-
struments, or an Instrument and a recorded source to an
amp input.

Can be used for comparison of performance of two compo-
nents in listening tests or in electrical analysis.

Many more applications will undoubtedly be evolved by the
musician or dealer who works this very handy device.

THE ORIGINAL CONSUMER PURCHASER PROVIDED THAT:

1.

2.

111E PRODUCT HAS NOT BEE}: DAMAGED OR ABUSED.

THE PRODUCT HAS NOT BEEN ALTERED 0R KEPAIRED
BY THE CUSTOMER 0R AN UNAUTHORIZED SERVICE
CENTER.

THE SERIAL NUMBER HAS NOT BEEN ALTERED 0R ERASED.

TEE GUARANTEE CARD IS FILLED OUT, AND RETURNED
TO US WITHIN 10 DAYS FROM DATE OF PURCHASE.

THE PURCHASER RETURNS THE PRODUCT TO US FREIGHT
MAID IN THE EVENT SERVICE IS REQUIRED.

DEAD BATTERIES CAN LEAK DAMAGING FLUIDS WHEN
ALLWED 10 MIN IN UNITS. MORLEY CANNOT HAR-
RANIY DEVICES DAMAGED IN THIS WARNER. NE SUG-
GEST MOVING BATTERIES IF EQUIPMENT IS TO BE
STORED FOR LONG PERIODS.

ONCE THE ABOVE CONDITIONS ARE NET MORLEY WILL REPAIR
OF. REPLACE THE PRODUCT WITHOUT CHARGE TO THE PURCHASER
FOR THE ONE YEAR GUARANTEE PERIOD.

* No less than 12 volts.
See adapter require-ems on bottom of unit.
