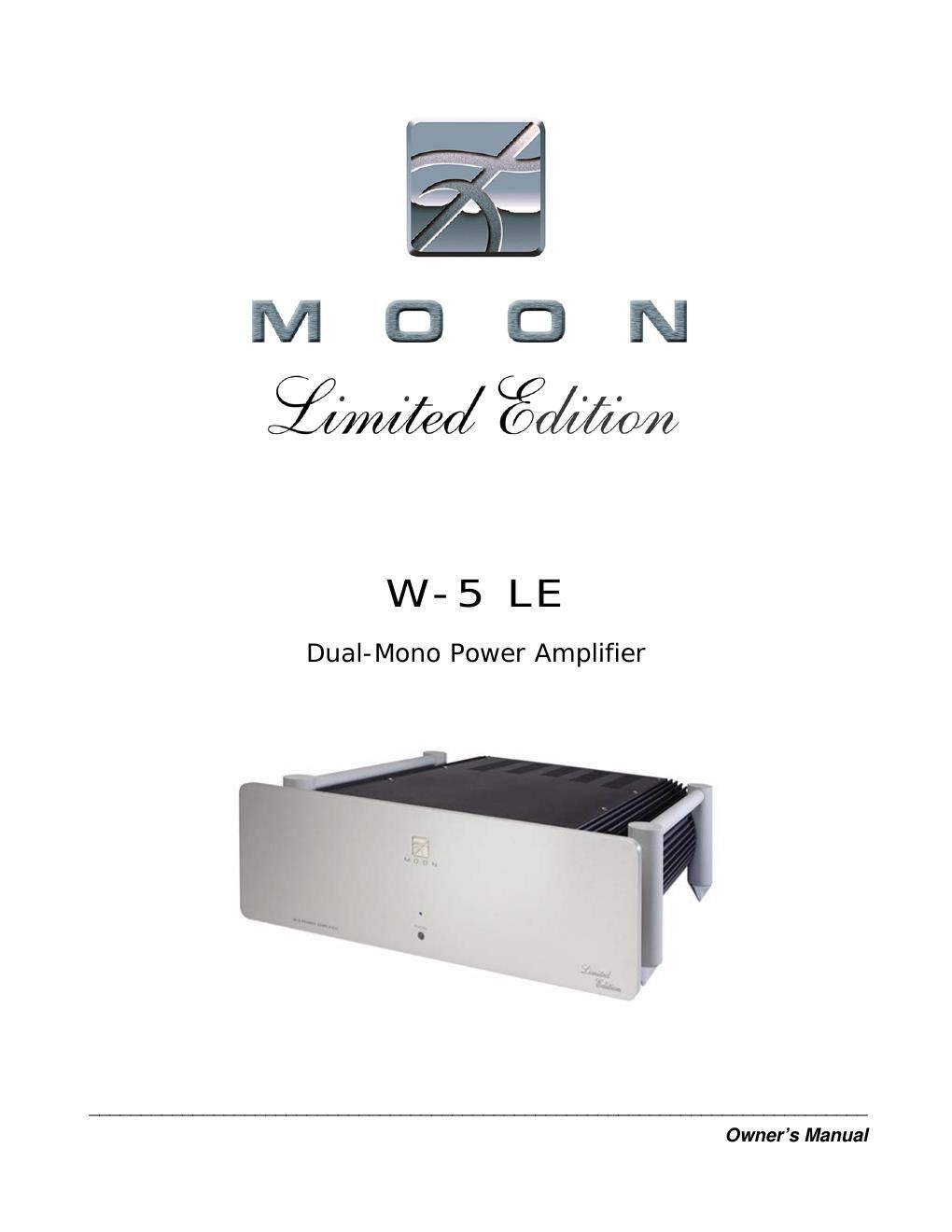

Moon w 5 le owners manual

Page 1

MOON W-5 Limited Edition Dual-Mono Power Amplifier Table of Contents Congratulations........................................... 3 Introduction ............................................... 4 Unpacking and Warnings .............................. 5 Installation Tips ........................................ 6 Rear Panel ................................................. 7 Connecting the W-5 LE................................. 8 Balanced Operation ..................................... 9 Bridged-Mono Operation............................. 10 Operating the W-5 LE ................................ 11 Specifications .......................................... 12 Service and Warranty ................................ 13 www.simaudio.com IMPORTANT: Please read this entire manual before using this product. Installation and operating instructions inside. ________________________________________________________________________\ ____________

Page 2

MOON W-5 Limited Edition Dual-Mono Power Amplifier Congratulations! Thank you for selecting the MOON W-5 Limited Edition Dual-Mono power amplifier as a part of your hi-fi reproduction system. This power amplifier has been designed to offer state-of-the-art high-end performance in an elegant packag e, while retaining all the sonic hallmarks on which Simaudio has made its reputation. We have spared no effort to ensure that it is among the finest two-channel amplifiers available. We have been building high-performance audio equipment for nearly 25 years, and the know-how gained through our cumulative experience is an important reason why MOON amplifiers are so musically satisfying. Your new amplifier is a true Dual-Mono design, wher eby each of the two channel operates completely independent of the other. The chassis is the only pa rt of this amplifier that both channels share. The performance of your W-5 LE will continue to improve during the fi rst three weeks of use. This is the result of a break-in period required for the numerous high quality electronic parts used throughout this amplifier. Please read this manual thoroughly to acquaint yourse lf with this products features prior to using it. We hope you enjoy listening to the MOON W-5 Limited Edition Dual-Mono power am plifier as much as the pride we have taken in creating this fine audio product. We understand the power and emotion of music and build our products with the goal of reproducing these elusive qualities. ________________________________________________________________________\ ____________ Congratulations 3
