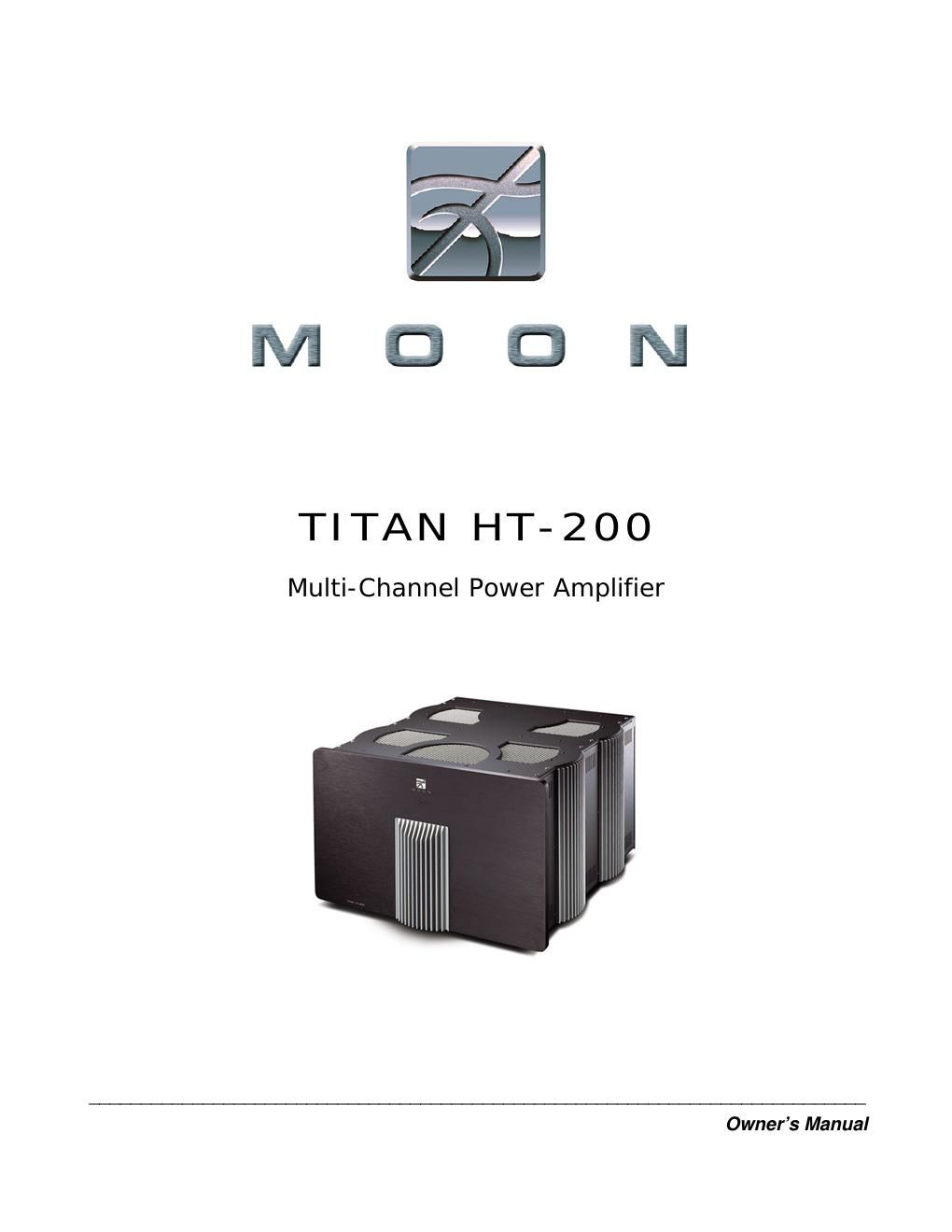

Page 1
MOON Titan HT-200 Multi-Channel Power Amplifier
Table of Contents
Congratulations ................................................ 3
Unpacking ........................................................ 3
Introduction ..................................................... 4
Installation & Placement ................................... 5
Rear Panel Layout ............................................ 6
Connecting the Titan ......................................... 7
Operating the Titan ........................................... 8
Specifications .................................................. 9
www.simaudio.com
IMPORTANT: Please read this entire manual before using this product.
Installation and operating instructions inside.
________________________________________________________________________\
____________
Page 2
MOON Titan HT-200 Multi-Channel Power Amplifier
Congratulations!
Thank you for selecting the MOON Titan HT-200 Multi-Channel power amplifier as a part of your hi-fi reproduction system.
This power amplifier has been designed to offer state-of-the-art high-end performance in an elegant package, while retaining
all the sonic hallmarks on which Simaudio has made its repu tation. We have spared no effort to ensure that it is among the
finest amplifiers available. We have been building high-per formance audio equipment for over 25 years, and the know-how
gained through our cumulative experience is an important reason why MOON amplifiers are so musically satisfying.
Your new amplifier is configured in either three, five or se ven channels depending on the choice you made. The three and
five channel models can be upgraded since they allow additional channels to be added in at a later time, for up to a total of
seven channels. The three and five channel versions share the same chassis and dimensions, while the seven channel version
use a deeper chassis to house the additi onal channels. The performance of your Titan will continue to improve during the 300
hours of listening. This is the result of a break-in period required for the numerous high quality electronic parts used
throughout this amplifier.
Before setting up your new MOON Titan HT-200, we encourage you to please read this manual thoroughly to properly
acquaint yourself with its features. We hope you enjoy listening to the MOON Titan HT-200 Multi-Channel Power Amplifier
as much as the pride we have taken in creating this fine au dio product. We understand the power and emotion of music and
build our products with the goal of fait hfully capturing these elusive qualities.
Unpacking
The MOON Titan HT-200 Multi-Channel Power Amplifier is a large and heavy component that should be removed from its
box with care. We strongly advise that you seek another person to help lift the amplifier out of its box, and place it in its final
location.
The following accessories should be includ ed inside the box with your amplifier:
9 20A AC power cable
9 This owners manual
9 Warranty and product registration information (USA and Canada only)
As soon as the amplifier is safely removed from its box and pl aced down, perform a thorough physical inspection and report
any damage to your dealer immedi ately. We suggest that you keep all of the orig inal packaging, storing it in a safe, dry place
in the event that youre required to transp ort the amplifier. The customized packaging is specially designed to protect the
MOON Titan HT-200 amplifier from potential damage that may occur during shipping.
________________________________________________________________
WARNING ! To reduce the risk of fire or electric shock, do no t expose this product to rain or moisture. Do not
attempt to lift the ground by removing the ground pin from the AC cable. Make sure that your
household electrical wiring supports proper AC grounding techniques before plugging in this
product. Keep the heat sinks and top cover free of dust to allow for proper heat dissipation.
Never expose this product to extreme temperatures . Always connect the audio signal path cables
prior to connecting the AC mains.
CAUTION! No user-serviceable parts inside. Do not remove to p cover, as severe electrical shock may result.
IMPORTANT! Make sure that your local AC voltage complies wi th the units label. Damage caused by plugging
this component into an AC receptacle of the wrong voltage will not be covered by warranty.
________________________________________________________________________\
____________
Congratulations / Unpacking 3
