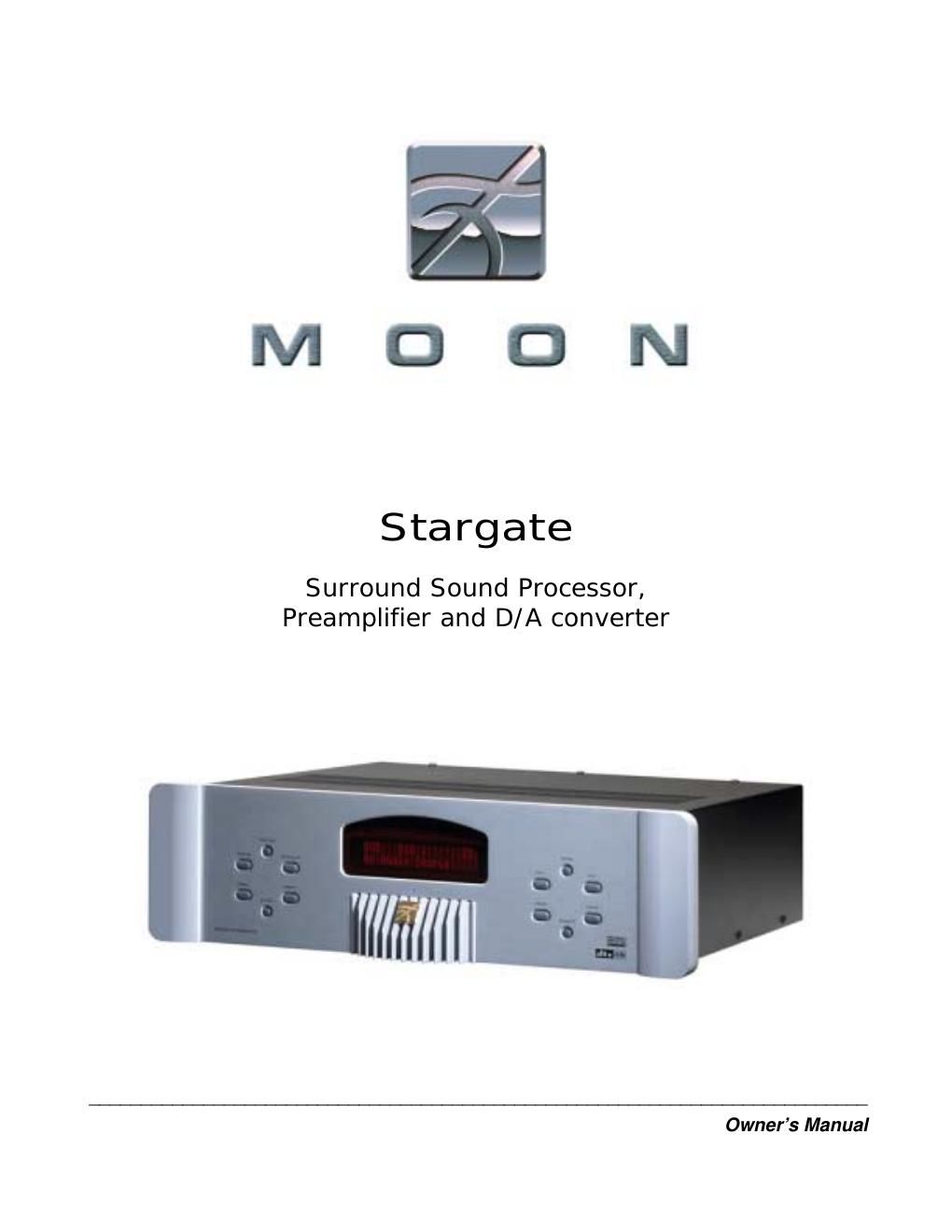

Moon stargate owners manual

Page 1

MOON Stargate Processor Table of Contents Congratulations ...........................................3 Introduction ................................................4 Unpacking and Warnings ..............................5 Installation Tips ..........................................6 System Setup .............................................7 Front Panel Controls ................................. 12 Full Function Remote Control Operation ....... 14 Full Function Remote Control Programming . 15 Basic Function Remote Control Operation .... 19 Rear Panel Connections ............................. 20 Typical Source Connections ....................... 22 5.1 Speaker Setup & Configuration ............. 23 6.1 Speaker Setup & Configuration ............. 24 7.1 Speaker Setup & Configuration .............. 25 Specifications ........................................... 26 Service and Warranty ............................... 27 www.simaudio.com IMPORTANT: Please read this entire manual before using this product. Installation and operating instructions inside. ____________________________________________________________________________________

Page 2

MOON Stargate Processor Congratulations! Thank you for selecting the MOON Stargate Processor as a part of your your home-theater system. This Processor has been designed to offer state-of-the-art high-end performance, retaining all the sonic hallmarks on which Simaudio has made its reputation. We have spared no effort to ensure that it is among the finest Surround Sound Processors available. We have been building high performance audio equipment for over 20 years, and the know-how gained through our cumulative experience is an important reason why MOON Processors are so musically satisfying. The performance of your Stargate will continue to improve during the first four to six weeks of use. This is the result of a break-in period required for the numerous high quality electronic parts used throughout this Processor. Please read this manual thoroughly to acquaint yourself with this products features prior to using it. We hope you enjoy listening to the MOON Stargate Processor as much as the pride we have taken in creating this fine audio product. We understand the power and emotion of music and build our products with the goal of reproducing these elusive qualities. For a component as sophisticated as this processor, it is of primary importance to take the time to properly setup the unit prior to using it, otherwise you will not obtain the level of performance that it is capable of. We strongly recommend that you read the System Setup section to help you appropriately configure your MOON Stargate. ____________________________________________________________________________________ Congratulations 3
