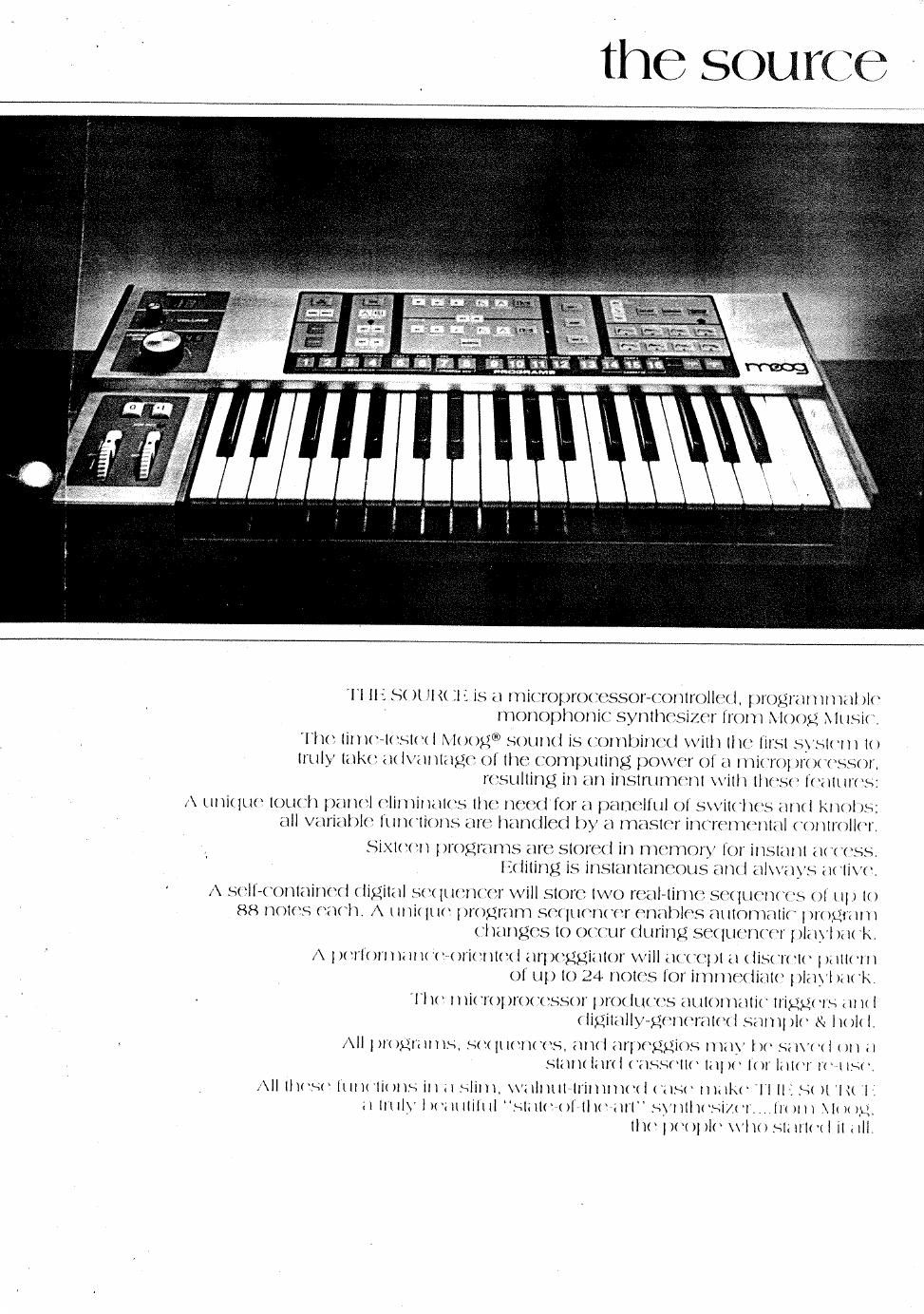

the source

'll lli St )l 11 ttjli is a inkTl()pl'O(TfSSUFCOHIlOllCt.i, i)rograrntnublr

monophonic synthesizer l'rom Moog Musk 1

The timottstod Moog® sound is (:ornhinod with tho tirst S)Hl(lll to

truly tnko udvunlngo ol the Computing power of a t'nit'ro;)torrsstn.

resulting in an instrument with thr'sv lfkllllUTQ

/\ uniqut lOLKh panel oilininnlrs tho need for £1 panollul oi switrhvs and knot is:
all varinhk, iunvtions are handled by a lililSlCr inrrcmontol (onttolktt

Sixtortn programs 21112510er in memory l()l' instant il((\(SSr

liditing is it'tstztntanoous and always; zitlivr.

A sctll-(onlninml digital soquonrtor will store two moi-time soquvnws (11 up to
88 notrs (ENlL A unlquv program SOfilKtKtT onnhks outomntir prognun
(112.11th to oatur during set iurntrr play! >211 k.

A 3xtrlrmneitir'ooritntodorpoggiatorwill;1(i((tptz1(lisrtrttc l)ill[(l'll
(1111111024 notes for lmmrwdiatt plnyl wit.

The n1i

tligitullyugtnomtod saint )lv & ll()l( l.

All pit 154r111111~g SP1 Illtl'u'ts. (1nd or; )rggit»; may hr 51 t\'< tl on 11
standard<;1s3+rlt( lnpt lorlttltt'tv um:

All it 191' [MIN liUl is in 11 slim. \\'&lllllll'll'llllllXWl ('ilSt nitxlw it 112 St )1 ltl l,

it truly lxutulilul .stztlootrtlit«11t"1~;)'ttllt

tltt l)(()l)l( \\'|1o.~.t;1rt<>(l it till,

Page 2

the source

SPECIFICATIONS - THE SOURCE

KEYBOARD
Description: 87 Note C to C Low note priority
Keyboard Transpose: + 1 Octave (Left hand control)

Glide Time: Linear, continuously variable from less than
2 rnsec to 5 sec (bottom to top of keyboard)

Sample 81 Hold drill: Zero (digital sample & hold)
Trigger: Single or multiple (on CV change)

MODULATION
Rate; Continuously variable from 0.25 Hz to 325 Hz
Waveshape: Triangular 8. square

Amount (Square wave): Oscillator. zero to 16 semitones
Filter, zero to 5 octaves

PITCH WHEEL
Range: Greater than i filth

OSCILLATOR 1
Reference lrequency: Low C 32 32.7H2 t 01 Hz
Scale factor accuracy: 021% from 65Hz to 1,5KHz
Range drill due to temp: 32°F to 100°F less than 0020/0/0
Waveform: Sawtooth, triangular, rectangular
Pulse duty cycle: Continuously variable from 5% to 95%
Octave lootages: 32'. l6, 8
Octave accuracy: 02%
Output level range: BOdB

OSCILLATOR 2
Reference frequency: Low C 32 32.7Hz : 0:1Hz
Scale lactor accuracy: 021% from 65 Hz to 1 5Kl-lz
Range drill due to temp: 32°F to 100° F less than 0:02%/°C
Waveiorm: Sawtooth, triangular, rectangular
Pulse duty cycle: Continuously variable from 5% to 95%
Octave lootages: 32. 16, 8
Octave accuracy: 02%
Interval range: 2.1 Octaves
interval cal range: 1 3%
Output level range: BOdB
Oscnlalors will not look when not in sync

OSCILLATOR SYNCHRONIZATION

in the sync mode, Oscillator 2's sawtooth wave can be
reset by Itself or by the reset pulse from Oscillator i This
locks the iundarnental frequency of Oscillator 210 Oscillator
1 generating a complex waveform. When in the sync mode.
the pitch wheel is rerouted only to Oscillator 2.

NOISE SOURCE
Type Digital pseudorandom pink noise
Output Level Range: BOdB

VOLTAGE CONTROLLED FILTER '

Type: Low pass 24dB/octave culoll slope with variable
height resonant peak at cutol i frequency

Range of cutoff: 30Hz to 25 KHz
Keyboard tracking: Selectable zero, halt, luil

Keyboard tracking accuracy: Full mode, 05% (SORZ to
ZOKHZ)

Sweep oi cutoff frequency by contour generator: 10 octaves

CONTOUR GENERATORS
Number: 2
Type: Microprocessor controlled 4 part tADSR. reiriggerable
Range of attack, decay. release times: t msec lo ltésec.
Range of sustain level: 0 to 100% of peak contour it

VOLTAGE CONTROLLED AMPLIFIER
Audio output level: OdBm
Dynamic range: 80GB
Output offset: Less than 100 MV

REAR PANEL
Fine tune: .t 3 semitones

KB control voltage in: lVloctave i 2% t;
input importance 2 50K ohrij

KB control voltage oul:1VIoctave+ 2% '3

Output impedance = 1K olrh

STrigger in: Single or multiple trigger, switch closui lo
. ground triggers contour generators: inw
impedance greater than 1K ohm

S-Trigger out: Single or multiple trigger (determinerby
front panel control). Trigger on is swl2h
closure to ground '

Cassette IIO: Tape interface with transport on/ofi cdtroi
Audio Output: OdBm. Output impedance : 600 ohis

BURN IN (AGING)
Before iinal calibration. units are burned In for 72 llurs at
ambient at approximately 72°F ,

POWER REQUIREMENTS

Operating voltage range
Domestic: 95 to 130 VAC 60 Hz

Export: 200 to 260 VAC 50 Hz
Power consumption: Less than 30 watts

DIMENSIONS 8i WEIGHT

Overall size: 26 3/8 wide. 12 1/2 " deep: 3 high
(67 cm wide, 31.75 cm deep: 7 62 cm uh)

Net weight: 22 lbs: (48.51 kg)
