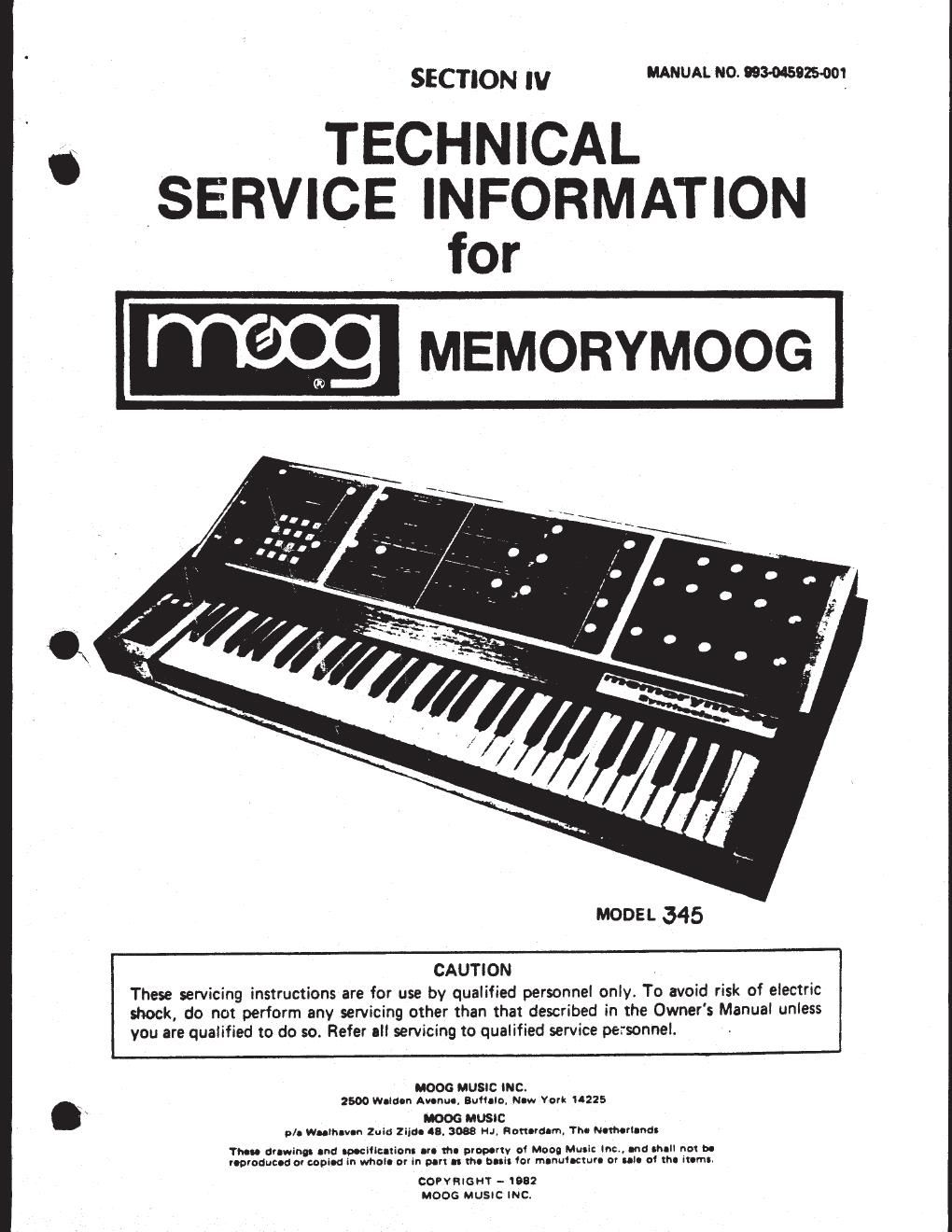

SECTION IV MANUAL NO. MORE-001'

. TECHNICAL
SERVICE "FORMATION
Of

MEMORYMOOG

G)

MODEL 345

CAUTlON
These servicing instructions are for use by qualified personnel only. To avoid risk of electric
shock, do not perform any servicing other than that described in the Owner's Manual unless
you are qualified to do so. Refer nil servicing to qualified service personnel.

M006 MUS": INCi
\_ 2500 Weldon Avenue. Burl-Io. le Yark 1:225
. M006 MUSIC
pl. warn-uh Zuie Zlide AB. 3088 H4, Renard-m, TM Netherlands

Thu. sawing- Ina epecllleltions u. the property 01 Mon Music lnc., an: null not be
reproduced or copied in whole or in our! 3: the helix Our menulecwre or me of the items.

COPYmGHT - 1982
M006 MUSlC lNCi

Page 2

Dear Fellow Synthesist:

Since you have proceeded this far in your
reading, you have already demonstrated a tkeen
interest in at least four endeavors: music,
electronics, computers and, of course, SYNTHESIS.
This manual can provide you with added depth in
this multi-faceted knowledge and improve your
long-term synthesizer musicianship.

This is a preliminary service manual which will
be available in final form during the first
quarter of 1983, so if you or your service
engineer have comments concerning the format or
content, let us hear from you. Direct your
suggestions or corrections to the attention of
the Moog Service Department.

Have this manual handy along with the schematics
(blueprints) included in the owner's packet, in
the event your MEMORYMOOG requires service. Be
sure to check the Modification section before
proceeding with field repair or calibration &
have your unit serviced at the nearest authorized
Moog service center as shown on the list ineluded
in your owner's packet.

Read on!
