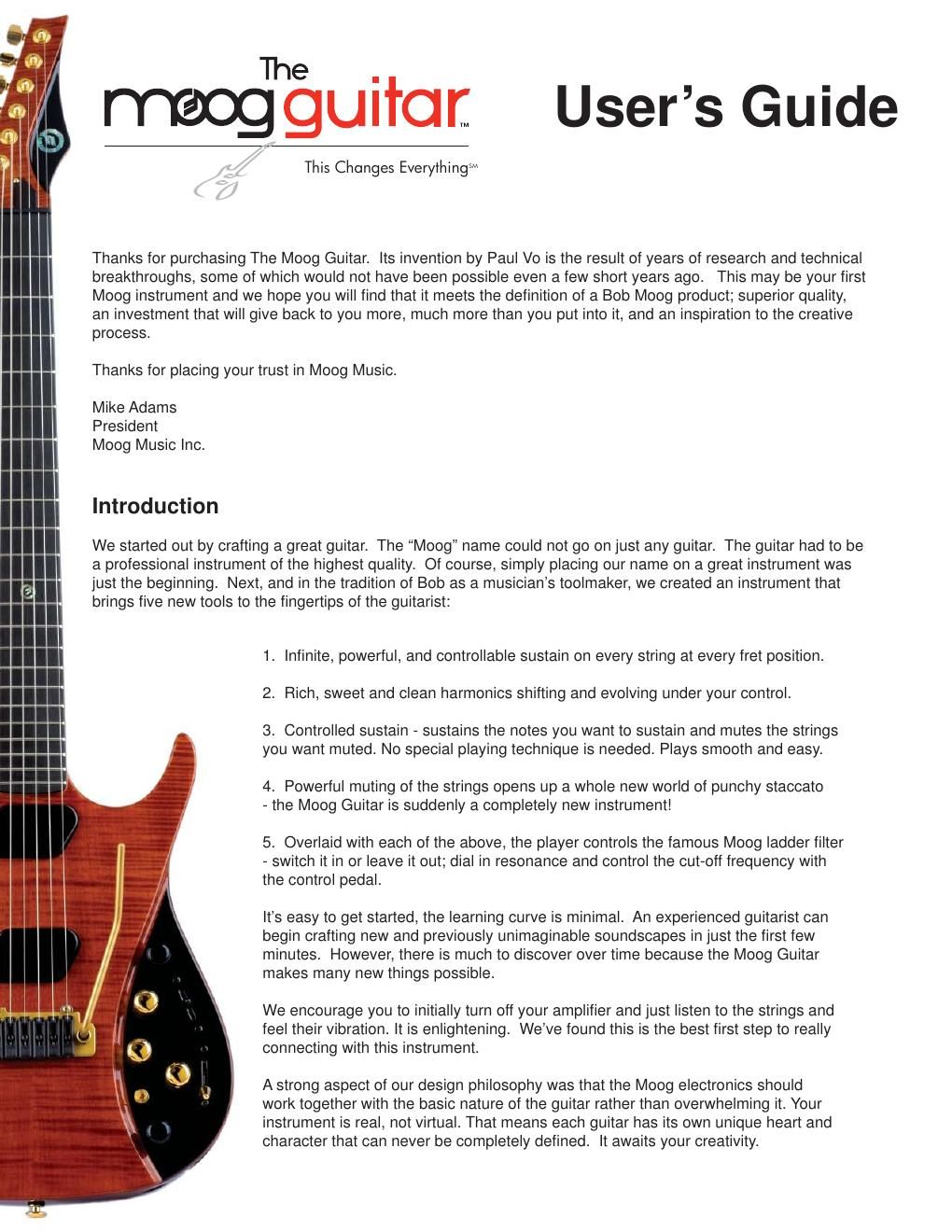

Page 1
User's Guide
_______________________________________________________
Connection
The following diagram shows a typical connection setup for The Moog Guitar. The effects processor and control voltage
source are optional. As with any Moog product, experimentation is richly rewarded.
.
Note: Once the Moog Guitar is powered, it takes approximately 30 seconds for the Moog electronics to activate
© 2009 Moog Music IncSpecifications subject to change without noticewww.moogmusic.com
Page 2
User's Guide
_______________________________________________________
Controls
Knobs
Full Clockwise Full CCW Comments
MASTER VOLUMEFull volume No volume Controls overall volume of Moog pick-ups and
piezo output
VO POWERFull Vo Power No Vo Power Turn fully CCW when playing as a normal guitar
HARMONIC BALANCENeck pick-up only Bridge pick-up only In center detent position, Vo Power is equal on
neck and bridge pick-up.
When the Filter Toggle switch is in the TONE
position, HARMONIC BALANCE is set by Control
Pedal and knob has no effect.
PIEZO BLENDThe output signal is 100% from the
neck and/or bridge pick-up, via the
pickup selector switch.The output signal is 100%
from the piezo pick-ups,
but still passes through the
Moog filter.Sets a blend of the piezo and magnetic pickups.
TONE/FILTERSWITCH
POSITION 1
ToneEmphasizes treble frequencies. Emphasizes bass
frequencies.
SWITCH
POSITION 2
Articulated FilterFull resonance. No resonance.
SWITCH
POSITION 3
Moog FilterFull resonance. No resonance.Controls either the basic guitar tone or Moog filter
resonance, depending on the FILTER TOGGLE
switch position.
The Moog Guitars tone control offers a wider
range than the tone controls found on many other
guitars. This can result in reduced volume at full
CCW settings.
High resonance settings emphasize the
frequencies near the cutoff frequency. This results
in a rich, wet sound.
© 2009 Moog Music IncSpecifications subject to change without noticewww.moogmusic.com
Switches
Position 1 Position 2 Position 3 Position 4 Position 5
PICK-UP SELECTORPiezo Bridge Out of Phase In Phase Neck
FILTER TOGGLETone Articulated Moog Filter Moog Filter n/a n/a
MODE SELECTORMute Controlled Sustain Full Sustain n/a n/a
