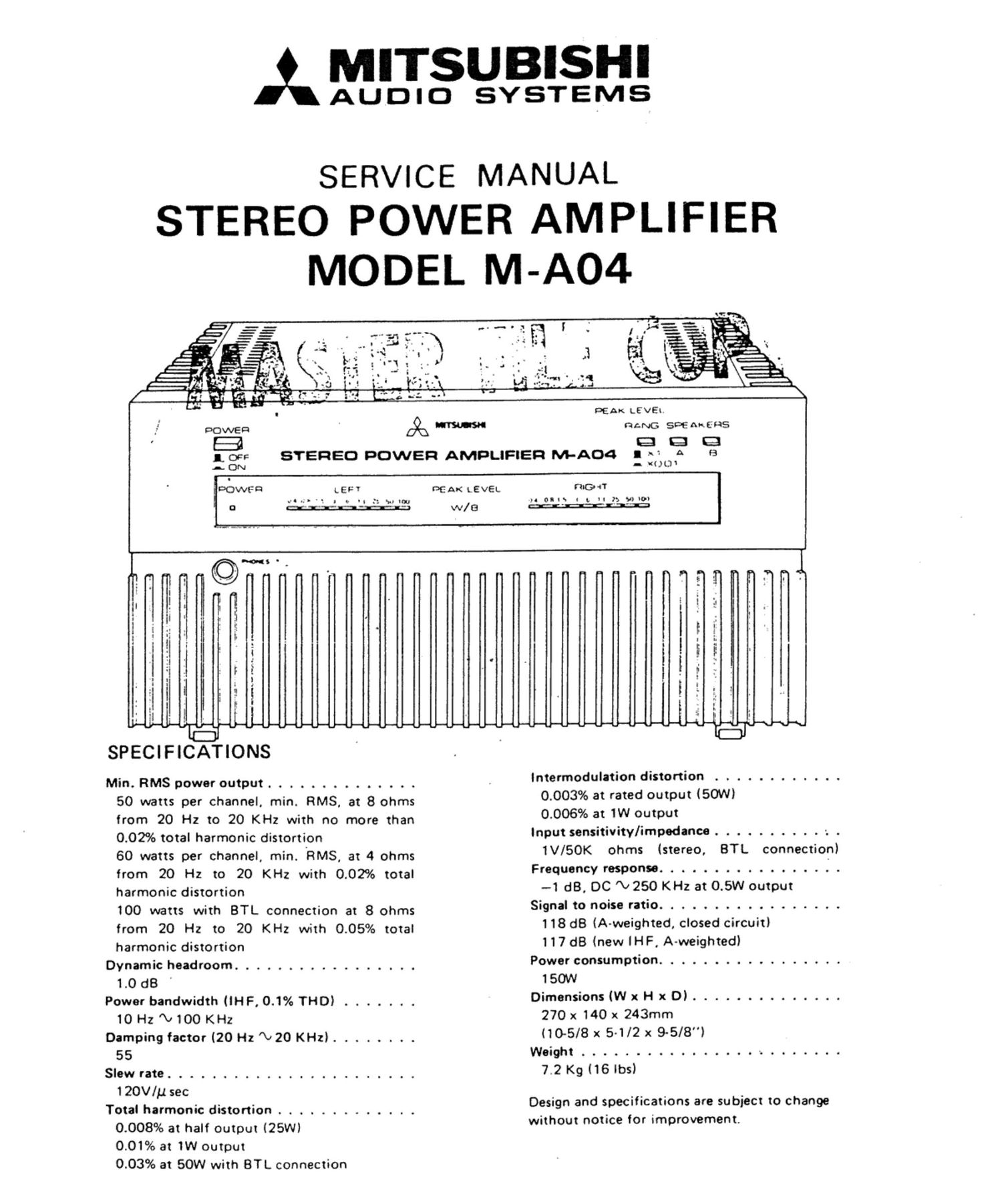

Mitsubishi m a04 service manual

Page 2

BACK PANEL

CAunou wum usmo an. con-MC CAutIou
nous As MONAURAL atmunm
must usv. mt SPEAKER wutu ns

IMPIOANCt OF MORE VHAN I OHMS

wutrv CONMCIING two
runs or 9(Al(fl$ to Mrs AMPUFI
(R fNSUflf IHAT "4f COMBiNO IM
PE DANCE IS I Owns on ASOVE

1H! COMBINSD IMPEDANCE 05 ONE! ll

P AN P Y RMI
I: m9s$~31-‚¬930c525~£359 I MINED mm TH! VOLLOWINC. roe F
MULA '

If cow-um «gnome: um I no

i: [OMMSI

l A noumu imomct or set

i © at A

J BTUNONO) a noumu mnomct or sou-r ,L
' can
We ' © a;
4v D © spenxens © f
'l NOWAL 416 A I
i: @ n a L n L I:
ll \ /" I
in $4 5
I

R INRJT L
© © © © © @
@
TL "NI 6)
B \

DISASSEMBLY INSTRUCTIONS

1. Remove upper and lower covers

(1) Loosen two screws (black M3 x 6) fastening the
upper cover and pull the cover backwards.

(2) Loosen two screws (black M3 x 6) fastening the
lower cover from the rear side and three screws
(black Tl-3 x 20) fastening the cover from the
lower side.

. Remove the upper side of the front panel assembly.

(1) Remove the upper cover according to 1, (l ).

(2) Loosen two screws (black M3 x 10) each fastening
the panel from the upper side right and left sides,
respectively.

Pull the entire panel forward from the rear of the

upper side and both sides of the panel.

To replace the panel, insert the tip of the left side

knob about 2mm into the left side panel, and push

the right side panel outward and at the same time,
push the front panel in position.

. Remove the front panel

(1) Remove the upper side according to the step 2

above.

(2) Loosen four screws (flat head 3 x 6) fastening the

panel from upper and lower sides.

. Remove the lower side of the front panel.

(1) Remove the lower cover according to the step 1,

(2) above. -

Loosen the screw (Tl-3 x 20) located at each of the

upper side of right and left sides of the lower side of

the panel.

(3)

(4)

(2)

5. Remove the left side pannel or right side panel.
(1) Remove the upper and lower cover according to

step 1.

(2) Place the panel assembly with the side panel to be
removed up.

(3) Loosen two screws (black T2-3 x 8), Fastening

the side panel from the rear of the base plate.
Loosen three screws fastening the side panel from
the front panel side.

Remove two screws (black T2-3 x 8) fastening the
decoration plate at the center of the side panel.
Remove the decoration plate, and loosen one screw
(black M4 x 8).

(4)

(5)

(6)
