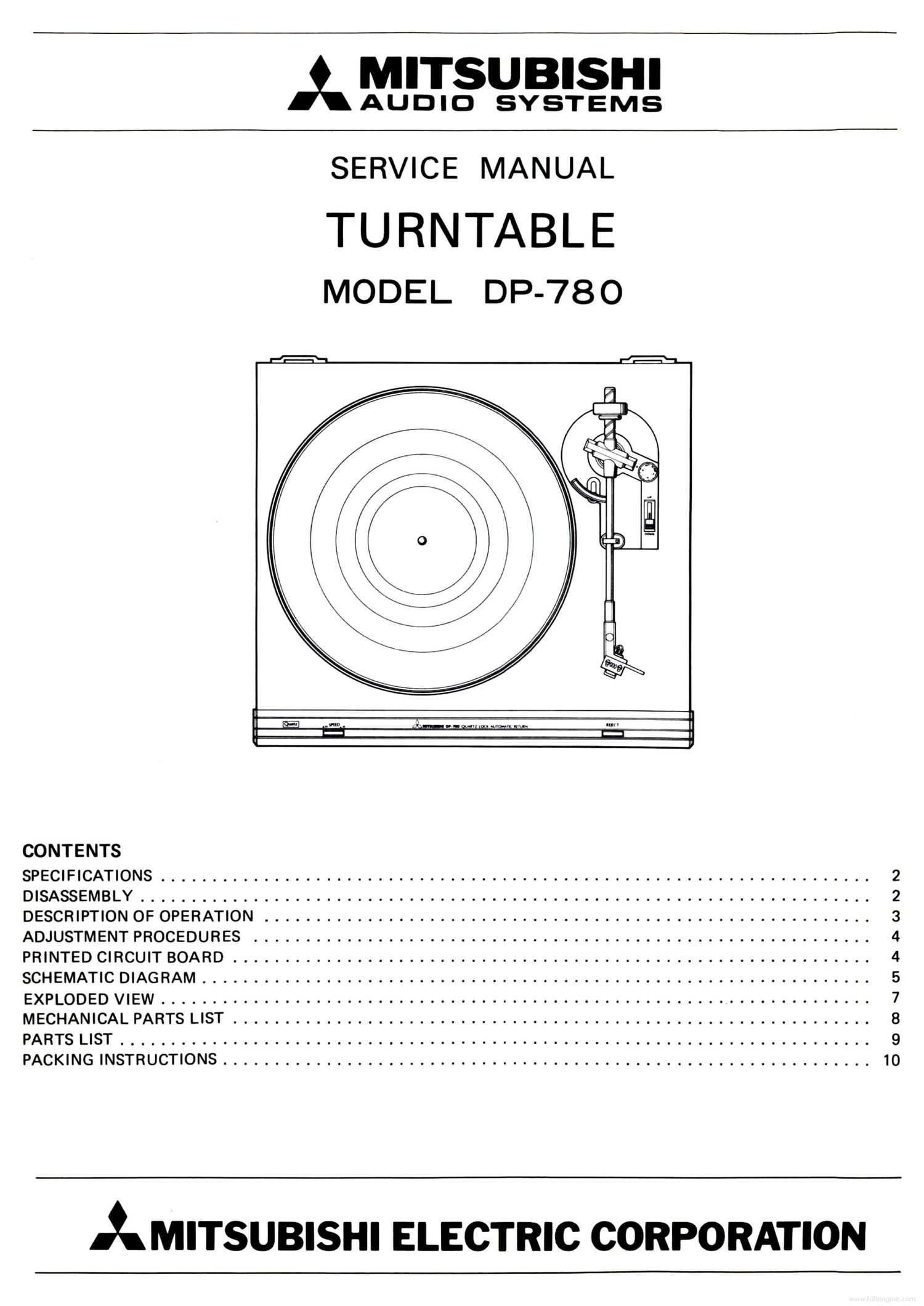

A MITSUBISHI
AUDIO SYSTEMS
SERVICE MAN UAL
MODEL DP-78 O
CONTENTS
SPECIFICATIONS ..................................................................... 2
DISASSEMBLY ....................................................................... 2
DESCRIPTION OF OPERATION ........................................................... 3
ADJUSTMENT PROCEDURES ............................................................ 4
PRINTED CIRCUIT BOARD .............................................................. 4
SCHEMATIC DIAGRAM ................................................................. 5
EXPLODED VIEW ..................................................................... 7
MECHANICAL PARTS LIST .............................................................. 8
PARTS LIST ......................................................................... 9
PACKING INSTRUCTIONS ............................................................... 10
AMITSUBISHI ELECTRIC CORPORATION
SPECIFICATIONS
1. PHONO MOTOR SECTION
Drive mechanism Direct drive
Motor Quartz PLL DC servo
Platter Diameter 30.3 cm (12")
Material Aluminum diecast
Platter speed 33-1/3, 45 r.p.m.
Wowand flutter 10.05% (DIN Wp-p)
0.03% (Wrms)
Signal to noise ratio 55 dB (lEC-B)
70 dB (DIN-B)
2. TONEARM SECTION
Static balance, straight arm
28.3 cm (11-1/8)
21.5cm (8-1/4)
11 mm (7/16")
Type
Overall length
Effective length
Overhang
Tracking error (30 cm LP) +3° ~_1°
Offset angle 23°
Possible cartridge weight 4 g to 8 9
Tracking force adjustment 0 to 3 g (0.1 9 step)
3. CARTRIDG E SECTION
Type Dual moving magnet
Stylus 0.6 mil diamond
Recommended tracking force 2 9
Output level (1 kHz, 5 cm/sec) 3 mV
Channel separation (1 kHz) 20 dB
4. GENERAL
Power consumption 5 W
Dimensions (W x D x H)
Weight
424 x 378 x130
(16-11/16 x14-7/8 x 5-1/8")
6,9 kg (15-3/16 lb)
Design and specifications are subject to change without
notice for improvement.
DISASSEMBLY
1. Removal of the Tonearm
1. Remove the bottom cover.
2. Disconnect the soldering for the 6 output lead wires
from the tonearm.
3. Loosen the screw securing the return lever to the
tonearm pivot. The return lever may thus be removed
from the tonearm pivot.
. Remove the 5 tonearm mounting screws [ see Fig.1 (Y)].
Remove the arm lifter catch.
6. The tonearm may now be lifted out from the main
cabinet.
.O'I-b
I
I
l
. J, l .
: Tonearm mounting
screws (1 - 3 x 8
tapping screws)
Return plate
Fig. 2
