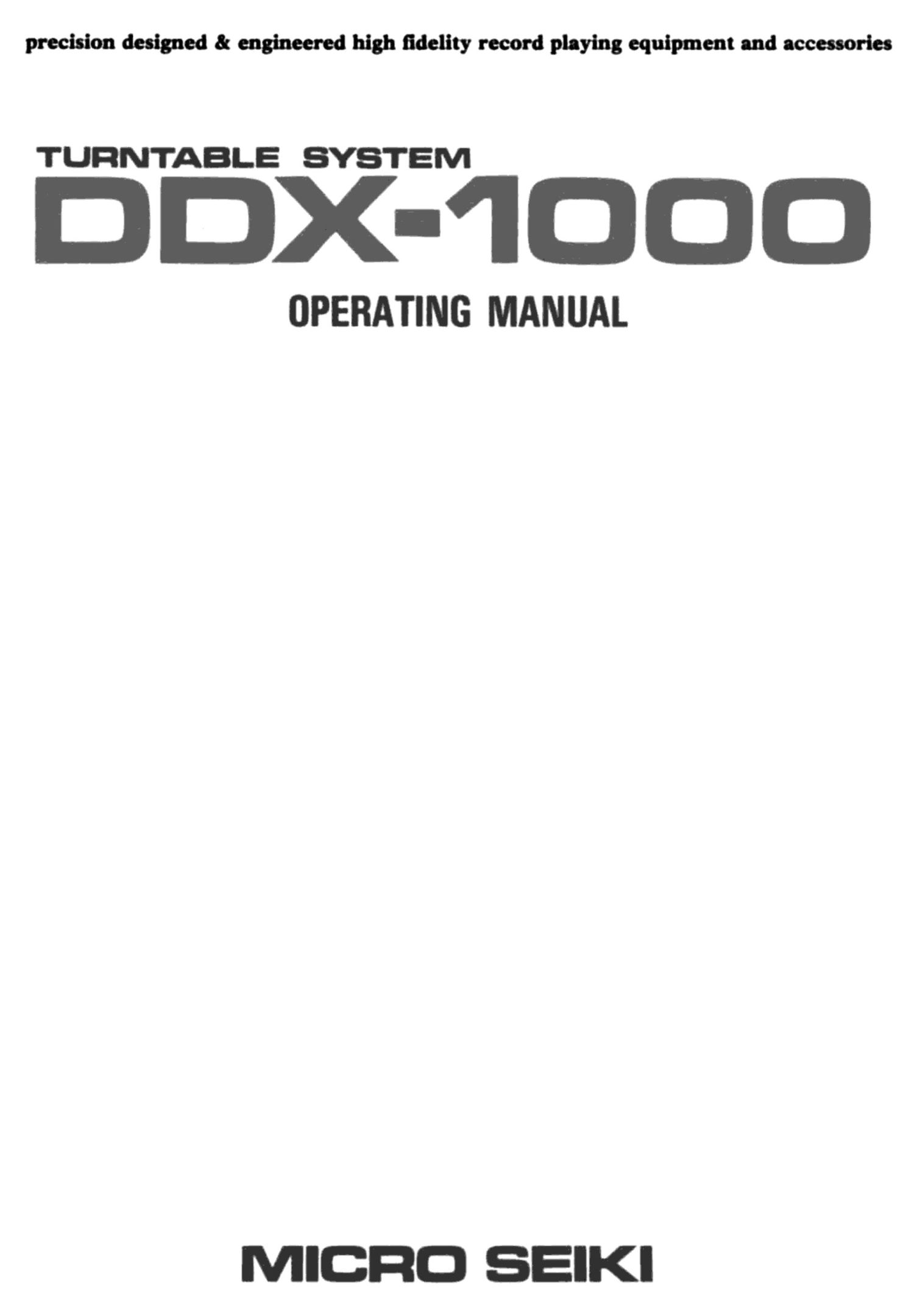

precixion designed an engineered high fidelity record playing equipment and ecceuories

TURNTABLE SYSTEM

DDX-Im

OPERATING MANUAL

MICRO SEIKI

Page 2

Before attempting assembly, please check the parts supplied against thrs list

er-sided wrench
Mount spacer (l)
Retainer washer ll)

0 Tonearmassembly

Mount the tonearm in the arm mount and secure

using one of the following methods depending on the

type of tonearm employed:

1) Secure the arm base using the three screws pro
vrded. Align the arm base to the grooves in the
arm mount and insert the screws Then, on the
reverse, position the retainer washer and secure
usrng the nuts provrded.

2) When the arm base, retarned by a nut, has a dra
meter of less than 20 mm, secure lrrmly by in-
cluding the retainer washer on the reverse

3) When the arm base and the arm center shaft have a
diameter between 21 and 27 mm, secure wrthout
using the retainer washer.

Turntable platter 0 Materials for tonearm base assembly
Rubber mat M3 x 30 screws (3)

Tonearm mount (ll Nuts for M3 screws (3)

Control unrt Flat washers l3)

Mmmt spacer

Retainer washer

W

V

0 Arm mount installation

Alter mounting the tonearm, install the mount spacer
and then the tonearm/arm mount assembly on the
appropriate shock absorber cap (see the general
photo and photo 2 below). For the cartrrdge into
the tonearm and adlust the installation angle ol the
mounting untrl the Correct overhang rs achieved
When thrs is obtained, secure trrmly With the six
sided wrench

Photo 2

0 Arm rest installation

The arm rest assembly rs separate from the tonearm
proper Install the separately sold arm rest base and
mount the arm rest
