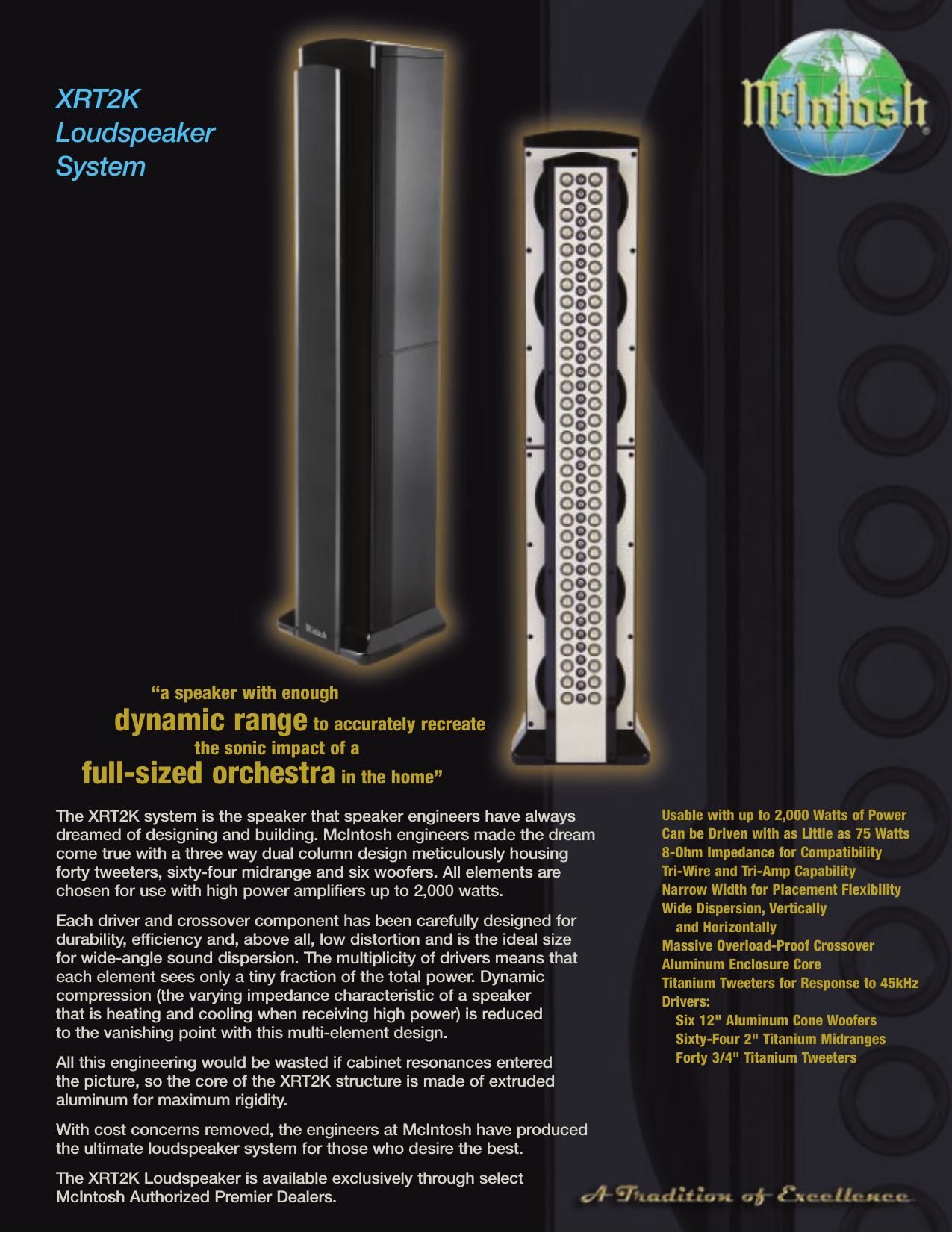

XRT2K
Loudspeaker
System
TITANIUM DOME TWEETERS
AND MIDRANGES
40 tweeter domes house
titanium diaphragms for a
frequency response to 45kHz.
The 64 midrange drivers each
have a titanium inverted dome.
Titanium has unwavering
rigidity, resulting in smooth
uncolored reproduction.
ALUMINUM CONE WOOFERS
6 aluminum cone
woofers produces powerful
bass down to 10Hz without
any trace of chestyness.
THREE SETS OF INPUTS
Three sets of massive gold
plated input connectors allow
bi and tri amping and wiring.
LINE ARRAY DESIGN
The XRT2K is a full range
line array system with
mirror-image symmetry.
Listeners sitting close to the
system will not hear hot spots
of certain frequencies and
listeners at a great distance
notice little drop off in sound.
The sound dispersion pattern
is smooth and wide, resulting
in exceptional stereo image in
a greater variety of listening
positions. The sealed aluminum
cabinet allows the system to be
located close to a rear wall
without bass boom.
SYSTEM TYPESealed Dual Column 3-way
NOMINAL IMPEDANCE8 ohms
POWER HANDLING 2,000 W
MAGNETIC SHIELDINGAll drivers
WOOFERSSix 12" aluminum long throw
MIDRANGESixty-four 2" inverted titanium dome
TWEETERSForty 3/4" titanium dome
ANECHOIC RESPONSE 16Hz -“ 45kHz
REFERENCE SPL2.8V/1m: 89dB
CROSSOVER FREQUENCIES250Hz and 1.5kHz
FINISHPiano black with optional
finishes available
GRILLEBlack knit cloth with high gloss black
trim and optional finishes available
DIMENSIONS (H x W x D)84-1/4" (214cm) x 19" (48.26cm) x
18" (45.72cm)
WEIGHT452 lbs. (205kg) net, 590 lbs.
(267.6kg) in shipping carton
including skid.
