General Specifications
System Type: 3-Way, Rear Ported, Bookshelf
Grill: Magnetically Attached Black Cloth
Nominal Impedance: 8 Ohms
Power Handling: 300 Watts
Woofer: One 6 LD/HP ®, Poly Cone, Cast Frame
Midrange Tweeters: Two 2 Inverted Titanium Domes
Super Tweeter: One ¾ Titanium Dome
Anechoic Response: 40Hz to 45kHz
Sensitivity: One Watt, One Meter, 81dB
Crossover Frequencies: 500Hz, 8kHz
Overall Dimensions (W x H x D): 8 (20.3cm) x 17 (43cm) x 11-3/4 (29.85cm)
Weight: 19.5 lbs (8.9 kg) net25 lbs (11 kg) in shipping carton
Finishes: Available in two exclusive McIntosh finishes:
For the Consumers Protection:In order to ensure the highest level of customer satisfaction, new McIntosh products may only be purchased over-the-counter or delivered and installed by an Authorized McIntosh Dealer. McIntosh products that are purchased over the Internet, by phone or mail order are presumed to be used and do not qualify for any McIntosh Warranty. McIntosh does not warrant, in any way, products that are purchased from anyone who is not an Authorized Dealer or products that have had their serial number altered or defaced.

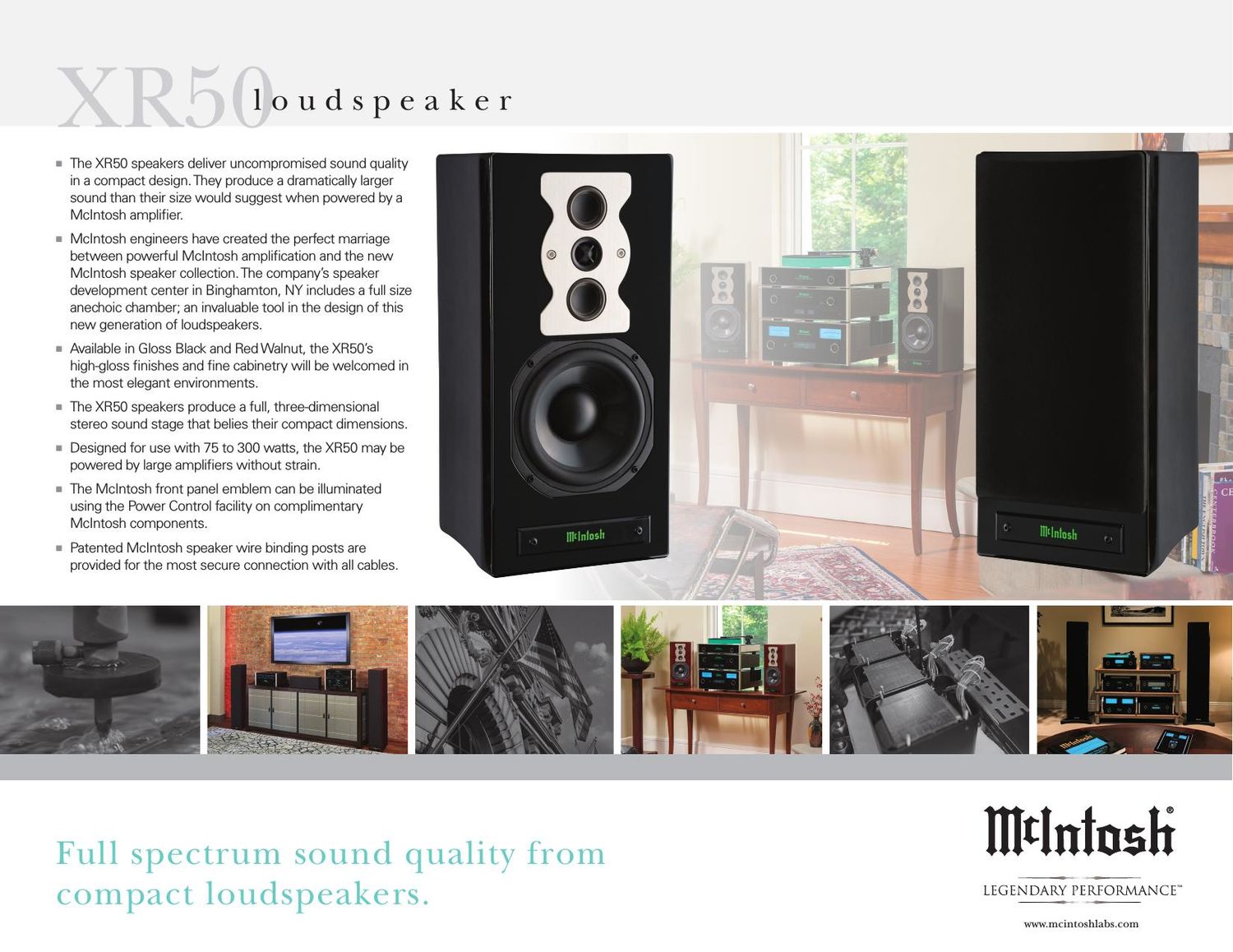

XR50
loudspeaker
Red Walnut Gloss Black
Companion ProductsThe McIntosh MAC6700 Stereo Receiver and MCD550 SACD/CD Player are logical companions for the XR50 Speaker. Your authorized dealer can provide
additional information.
