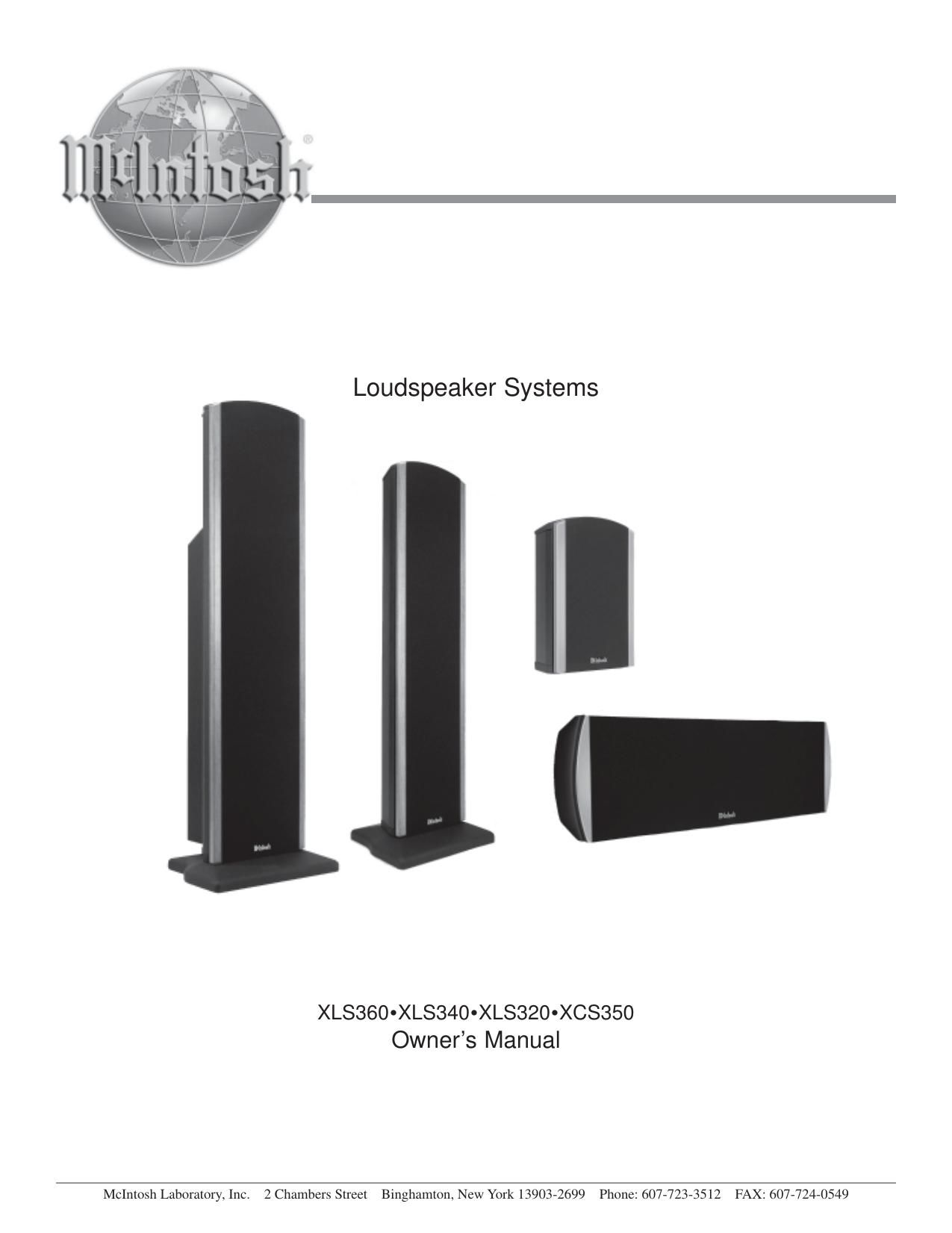

McIntosh XLS 320 XLS 340 XLS 360 XCS 350 Owners Manual

This is the 28 pages manual for McIntosh XLS 320 XLS 340 XLS 360 XCS 350 Owners Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 28
left right
McIntosh XLS 320 XLS 340 XLS 360 XCS 350 Owners Manual

Extracted text from McIntosh XLS 320 XLS 340 XLS 360 XCS 350 Owners Manual (Ocr-read)


Page 1

2 IMPOR T ANT SAFETY INSTRUCTIONS! PLEASE READ THEM BEFORE OPERATING THIS EQUIPMENT. WARNING - TO REDUCE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL. To prevent the risk of electric shock, do not remove cover or back. No user serviceable parts inside. 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Install in accordance with the manufacturers instructions. 8. This apparatus is capable of producing high sound pressure levels. Continued exposure to high sound pressure levels can cause permanent hearing impairment or loss. User caution is advised and ear protection is recommended when playing at high volumes. 9. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 10. Only use attachments/accessories specified by the manufacturer. 11. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.12. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 13. Do not expose this equipment to dripping or splashing and ensure that no objects filled with liquids, such as vases, are placed on the equipment.

Page 2

3 Customer Service Technical Assistance Please Take A Moment Thank You Copyright 2005 © by McIntosh Laboratory, Inc. The serial number, purchase date and McIntosh Dealer name are important to you for possible insurance claim or future service. The spaces below have been provided for you to record that information: Your decision to own a McIntosh Loudspeaker System ranks you at the very top among discriminating music lis- teners. You now have The Best. The McIntosh dedication to Quality, is assurance that you will receive many years of musical enjoyment from this unit. Please take a short time to read the information in this manual. We want you to be as familiar as possible with all the features and functions of your new McIntosh. Serial Number: Purchase Date: Dealer Name: If it is determined that your McIntosh product is in need of repair, you can return it to your Dealer. You can also return it to the McIntosh Laboratory Service Department. For as- sistance on factory repair return procedure, contact the McIntosh Service Department at: McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903 Phone: 607-723-3515 Fax: 607-723-1917 If at any time you have questions about your McIntosh product, contact your McIntosh Dealer who is familiar with your McIntosh equipment and any other brands that may be part of your system. If you or your Dealer wish addi- tional help concerning a suspected problem, you can re- ceive technical assistance for all McIntosh products at: McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903 Phone: 607-723-1545 Fax: 607-772-3308 Table of Contents Safety Instructions ............................................................ 2 Thank You and Please Take a Moment ............................. 3 Technical Assistance and Customer Service .................... 3 Table of Contents .............................................................. 3 Important Information ...................................................... 4 Introduction ...................................................................... 4 Performance Features ....................................................... 5 Dimensions: XLS320 ........................................................................... 6 XLS340 ........................................................................... 7 XLS360 ........................................................................... 8 XCS350 .......................................................................... 9 Installation: Installation Overview ................................................... 10 Unpacking the XLS320 ................................................ 10 Unpacking the XLS340 ................................................ 10 Unpacking the XLS360 ................................................ 11 Unpacking the XCS350 ................................................ 12 Wall Mounting the XLS320 .......................................... 13 Wall Mounting the XLS340 .......................................... 14 Wall Mounting the XCS350 ......................................... 16 Locating the Loudspeaker ............................................ 18 Tweeter Array Optimization ......................................... 19 Connections: Connecting the XLS320 (default setting) ..................... 20 Connecting the XLS320 (optional setting) ................... 21 Connecting the XLS340, XLS360 and XCS350 (with one amplifier) .................................................... 22 Connecting the XLS340, XLS360 and XCS350 (with two amplifiers) .................................................. 23 Specifications: XLS320 ......................................................................... 24 XLS340 ......................................................................... 24 XLS360 ......................................................................... 25 XCS350 ........................................................................ 25 Packing Instructions: XLS320 ......................................................................... 26 XLS340 ......................................................................... 26 XLS360 ......................................................................... 27 XCS350 ........................................................................ 27
